Switch Stack showing Half Redundancy

Customer widget regarding "Stack Data Ring" is showing Half Redundancy

First published date

8/1/2019 3:44 PM

Last published date

4/12/2022 2:17 AM

Overview

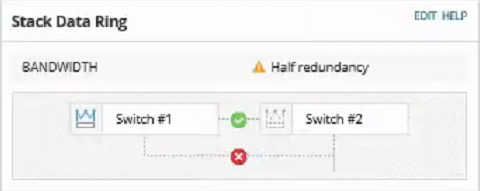

Base on the Widget it shows like this.

Product section

Network Performance Monitor

Cause

Base on the OID (1.3.6.1.4.1.9.9.500.1.2.2.1.1) not all OID is showing status UP

1.3.6.1.4.1.9.9.500.1.2.2.1.1 = cswStackPortOperStatus

SNMPwalk details of your Devices

All value needed to be 1 so it will show Full Redundancy

1 = UP
2 = Down
3 = Force Down

Resolution

Contact your Network Team to Fix the issue or Your vendor to know how to configured it right.
