Network Management

When creating a job with Dynamic Selection, View Selected Nodes button doesn't show any nodes

This article describes the issue when creating a Network Configuration Manager (NCM) job and using Dynamic Selection to select nodes, clicking the View Selected Nodes does not show any nodes.

First published date

11/29/2018 10:57 PM

Last published date

11/29/2018 10:57 PM

Overview

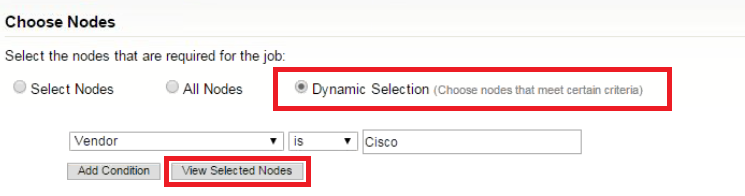

This article describes the issue that occurs when creating an NCM job and using Dynamic Selection to select nodes, clicking the View Selected Nodes does not display any nodes.

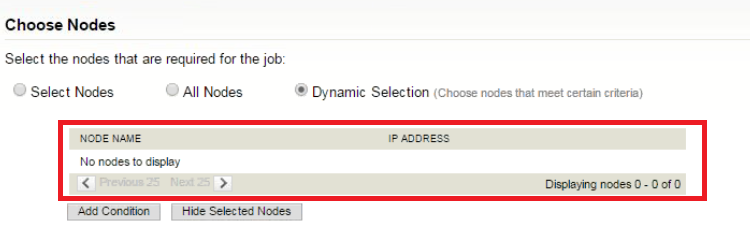

No node to display appears instead of list of Cisco nodes:

Product section

Network Configuration Manager

Cause

With the recent upgrade to NCM 7.4, it might have caused tables duplication but with different schema.

Resolution

Create a backup of the Orion database.

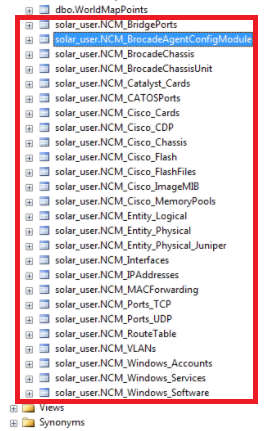

Delete the duplicate NCM tables with different schema through SQL Server Management Studio (logging with SA account is required).
Run the Configuration Wizard with Database option selected.
