VMAN action to migrate a VM between Hyper-V hosts gives connection error

When completing an action to move a VM between Hyper-V hosts or execute Recommendation actions you may receive errors in the SolarWinds Platform Web Console or VIM log. Errors: Failed to authenticate the connection at the source host: no suitable credentials available. Failed to establish a connection with host ‘VMNAME’: the credentials supplied to the package were not recognized.

First published date

11/6/2018 5:15 PM

Last published date

4/8/2025 11:53 PM

Overview

When completing an action to move a VM between Hyper-V hosts or during automatic or manual recommendation job execution you may receive errors in the SolarWinds Platform Web Console or VIM logs. The action may be part of a displayed on the VM Details Page.

You may find the following error in the Virtual Infrastructure Monitor (VIM) log The log file located at  LogFiles\VIM\Jobs\ log may contain these errors:

"Failed to authenticate the connection at the source host: no suitable credentials available."

"Failed to establish a connection with host ‘VMNAME’: the credentials supplied to the package were not recognized."


Product section

Virtualization Manager

Cause

The Hyper-V Windows hosts require Kerberos authentication and Service Types set. Otherwise, credentials errors trigger when manually or applying Recommendation moves. The issue occurs with security settings in Active Directory.

Resolution

IMPORTANT: To resolve, you must complete all of the following instructions on all hosts you will migrate from and to.

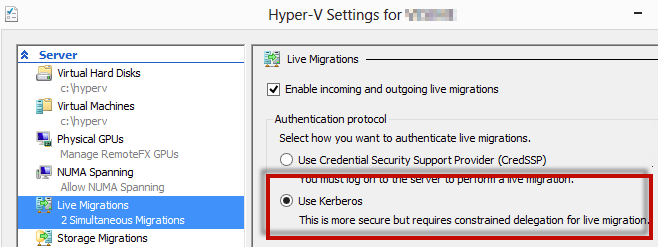

Set Kerberos authentication for the authentication protocol for each host in Hyper-V Settings:

  1. Open the Hyper-V Settings for host in Hyper-V Manager.
  2. Expand Live Migrations and click on Advanced Features.
  3. Authentication protocol select 'Use Kerberos'.
  4. Open the Hyper-V settings for the host machines and enable Live Migrations using Kerberos.

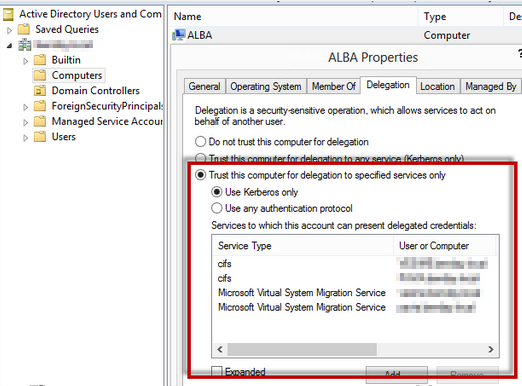

Set the Active Directory Users and Computers settings for each Hyper-V host server:

  1. Open Tools > Active Directory Users and Computers.
  2. Click on Computers and find the related host. Right click on the host and select Properties.
  3. Open the Delegation tab.
  4. Select 'Trust this computer for delegation to specified services only'.
  5. Select 'Use Kerberos only'.
  6. Add a cifs service for all other hosts in the cluster and the cluster itself:
    1. Click Add to add a service.
    2. Find and select other host in cluster.
    3. Select service 'cifs' and click on OK button.
  7. Add a Microsoft Virtual System Migration Service service for all other hosts in the cluster:
    1. Click Add to add a service.
    2. Find and select other host in cluster.
    3. Select service 'Microsoft Virtual System Migration Service' and click on OK button.



For example, when you have 3 hosts A, B and C in Cluster, the services may look as follows:
A

  • cifs B
  • cifs C
  • cifs Cluster
  • Microsoft Virtual System Migration Service B
  • Microsoft Virtual System Migration Service C

B

  • cifs A
  • cifs C
  • cifs Cluster
  • Microsoft Virtual System Migration Service A
  • Microsoft Virtual System Migration Service C

C

  • cifs A
  • cifs B
  • cifs Cluster
  • Microsoft Virtual System Migration Service A
  • Microsoft Virtual System Migration Service B
