Using Simple Network Management Protocol (SNMP) v3 authentication in the CMD version of Switch Port Mapper

Use SNMP v3 authentication in the CMD version of Switch Port Mapper.

First published date

10/15/2018 8:44 PM

Last published date

4/24/2019 1:15 PM

Overview

How to use Simple Network Management Protocol (SNMP) v3 authentication in the CMD version of Switch Port Mapper

Product section

Engineers Toolset

Resolution

Create SNMP v3 credentials.
1. Go to Workspace Studio.
2. Click Manage Credentials.
3. Click Start New.
4. Set Type to SNMPv3.
5. Enter the required information for SNMPv3 authentication.
Open the Command Prompt.
Go to the Toolset Installation directory. The default location is: C:\program files(x86)\Solarwinds\Toolset\

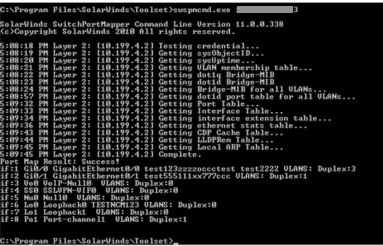

Run the following command:

swspmcmd.exe [IP address] [SNMPv3 credential name]

Replace [IP address] with the IP address of the Switch.
Replace [SNMPv3 credential name] with the credential information created in Step 1.
