Unable to view Hardware Health for Linux-based Cisco node

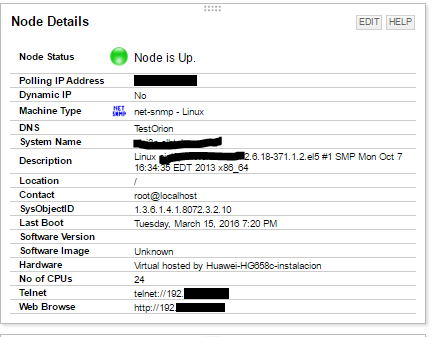

This article addresses the issue where the Hardware Health information for a Cisco node with a Linux-based OS is not displayed in Node Details.
First published date
11/2/2018 1:27 PM
Last published date
4/5/2022 4:42 PM
Overview
This article addresses the issue where the Hardware Health information for a Cisco node with a Linux-based OS is not displayed in Node Details.
Product section
Network Performance Monitor
Cause
This occurs when the supported Hardware Health OIDs are not available for this node.
Resolution
The node must have the supported OID mentioned in Hardware health OIDS. Otherwise, the Hardware Health sensor will not be detected.
| MANUFACTURER | OID NAME | OID VALUE |
|---|---|---|
| Cisco | entSensorType | 1.3.6.1.4.1.9.9.91.1.1.1.1.1 |
| Cisco | ciscoEnvMonVoltageStatusDescr | 1.3.6.1.4.1.9.9.13.1.2.1.2 |
| Cisco | ciscoEnvMonTemperatureStatusDescr | 1.3.6.1.4.1.9.9.13.1.3.1.2 |
| Cisco | ciscoEnvMonFanStatusDescr | 1.3.6.1.4.1.9.9.13.1.4.1.2 |
| Cisco | ciscoEnvMonSupplyStatusDescr | 1.3.6.1.4.1.9.9.13.1.5.1.2 |
| Cisco | cefcFanTrayOperStatus | 1.3.6.1.4.1.9.9.117.1.4.1.1.1 |
| Cisco | cefcFRUPowerAdminStatus | 1.3.6.1.4.1.9.9.117.1.1.2.1.1 |
| Cisco | cefcFanTrayOperStatus | 1.3.6.1.4.1.9.9.117.1.4.1.1.1 |
| Cisco | cefcFRUPowerAdminStatus | 1.3.6.1.4.1.9.9.117.1.1.2.1.1 |
| Cisco | entitySensorValueTable | 1.3.6.1.4.1.9.9.91.1.1.1 |
| Cisco | entitySensorThresholdTable | 1.3.6.1.4.1.9.9.91.1.2.1 |
| Cisco | entPhysicalTable | 1.3.6.1.2.1.47.1.1.1 |
| Cisco | ciscoEnvMonVoltageStatusTable | 1.3.6.1.4.1.9.9.13.1.2 |
| Cisco | ciscoEnvMonTemperatureStatusTable | 1.3.6.1.4.1.9.9.13.1.3 |
| Cisco | ciscoEnvMonFanStatusTable | 1.3.6.1.4.1.9.9.13.1.4 |
| Cisco | ciscoEnvMonSupplyStatusTable | 1.3.6.1.4.1.9.9.13.1.5 |
| Cisco | cefcFanTrayStatusTable | 1.3.6.1.4.1.9.9.117.1.4.1 |
| Cisco | cefcFRUPowerStatusTable | 1.3.6.1.4.1.9.9.117.1.1.2 |
| Cisco | entPhysicalTable | 1.3.6.1.2.1.47.1.1.1 |
