Unable to show execution plan on SQL server instance in DPA

10/23/2018 6:54 AM

10/23/2018 6:54 AM

When clicking into the plan tab in DPA for SQL server instance you are monitoring, no plans are display and collected.

Database Performance Analyzer

A bug in Microsoft SQL Server 2014 causes the DMV sys.dm_exec_requests to have a NULL value in the query_hash.

Because of this, DPA is unable to link the Plans to the queries.

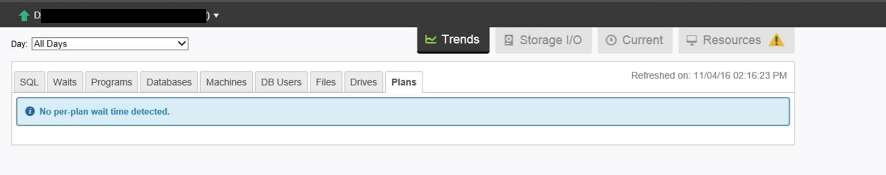

User will see something like the image below:

This was patched in this bug fix release: "FIX: The values of column query_hash and query_plan_hash are NULL for DMV sys.dm_exec_requests in SQL Server 2014 " (© Microsoft 2018, obtained from https://support.microsoft.com/en-us/help/2953592 on October 2018)


Patch the SQL server that is being monitored to allow DPA to not have nulls in this dmv.
