This article provides tips on how to improve your Orion Web Console performance.

Orion Platform

Reduce the page load

Use the Navigation tabs to reduce the amount of load on a single page.


Add your required resources

Only add resources that need to load on the Summary home page (first tab).


Minimize your resources

Do not overload a single tab with multiple resources.


Configure the Network Atlas high resolution map

Even if you don't use a map background, the Network Atlas high resolution map background will load quickly.


Customize your Orion Summary home page

Use multiple navigation tabs in your home page, as shown below.

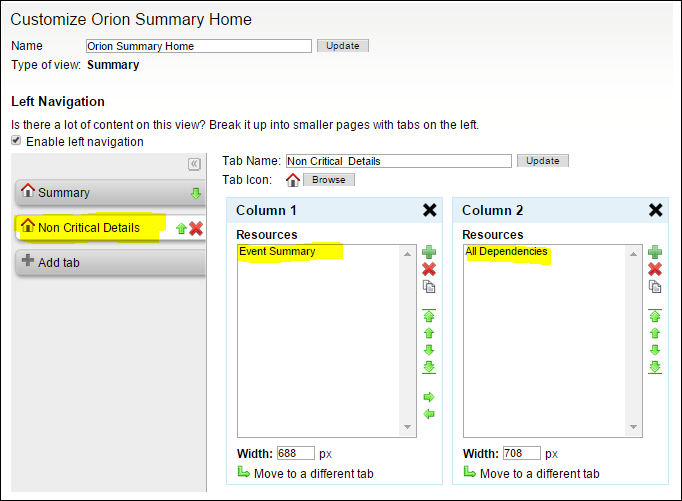

Configure the navigation on your home page

Move extra loads to other tabs that are not required on the Summary page. Move the resources to each tab and add more tabs if needed. Avoid overloading a single tab.




Select the correct time period

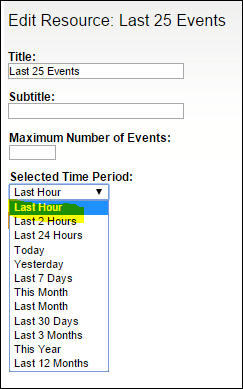

When you use any resources, try using less hours or less amount. For example, update the last 25 events each hour.

Select the top resource types

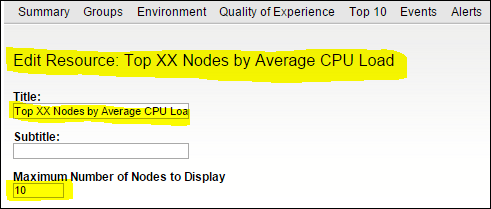

Use Top XX type of resources and try to use less amount of load (for example, Top 10 or Top 5).

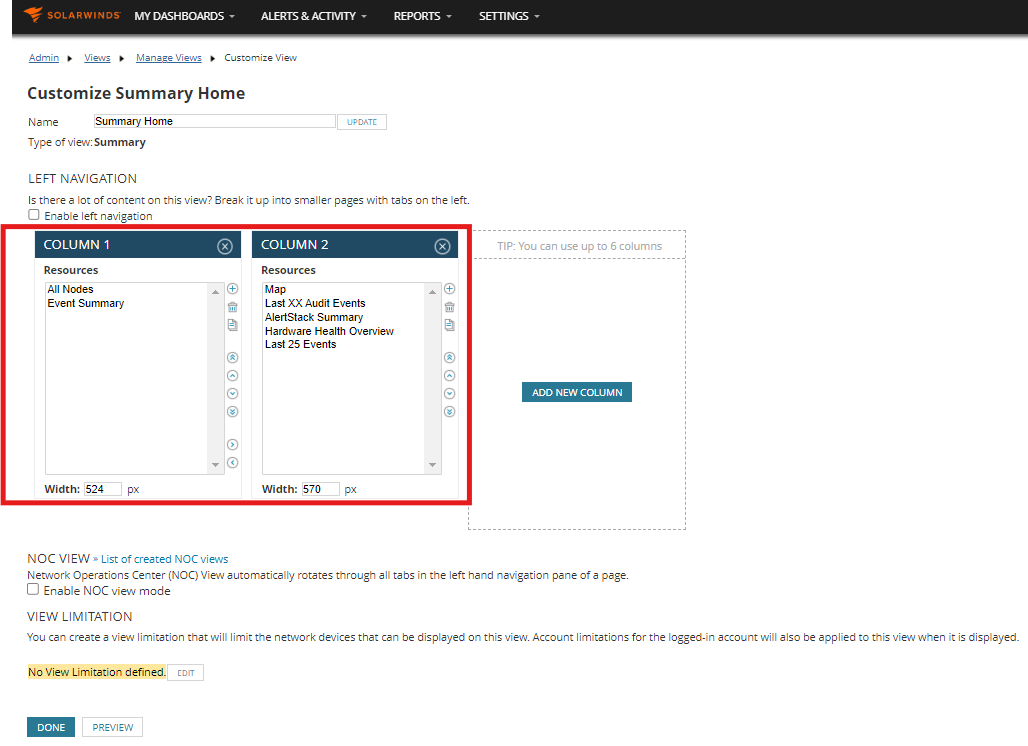

Minimize the columns on your home page

Avoid using more than two columns unless required. Also, do not overload each tab with multiple resources.

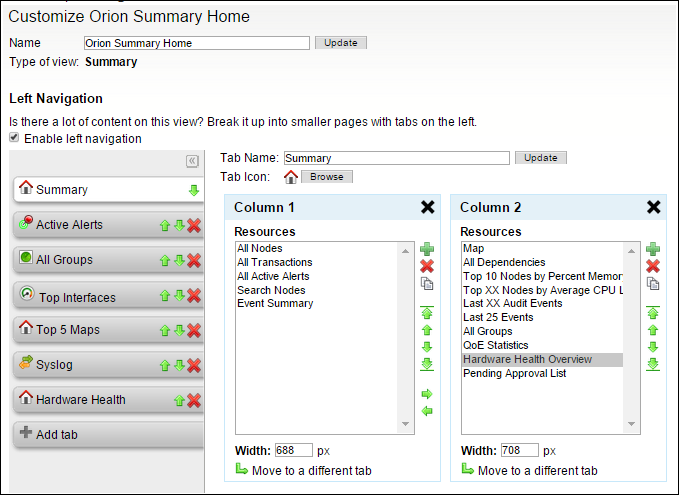

Here is an example of Simple Summary Home Page


Node Details Page Tips :

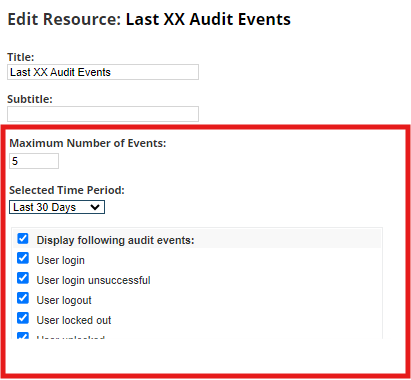

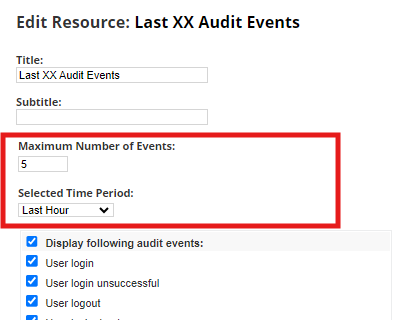

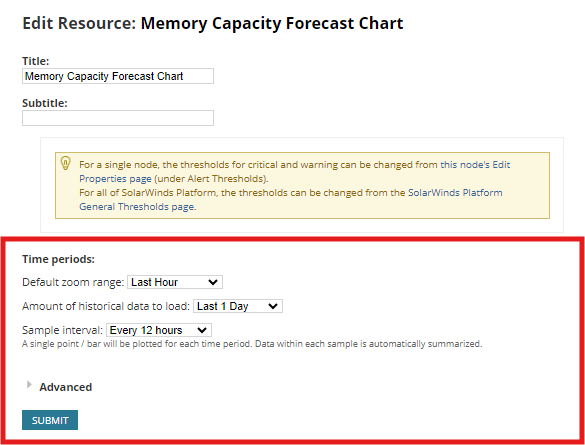

Try loading less amount of Data Sample : Here is an example .

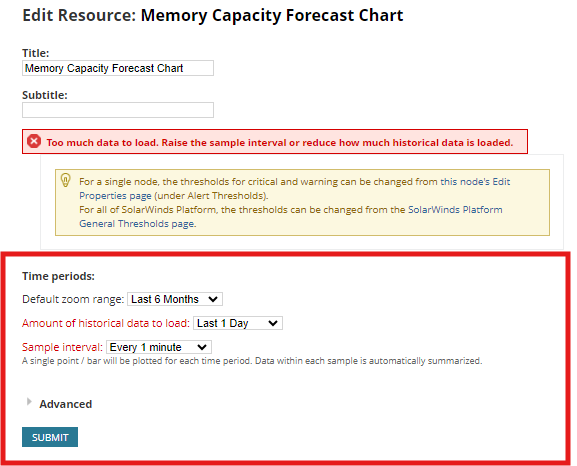

Try to load less data from a month to a day to reduce the load from the resources.

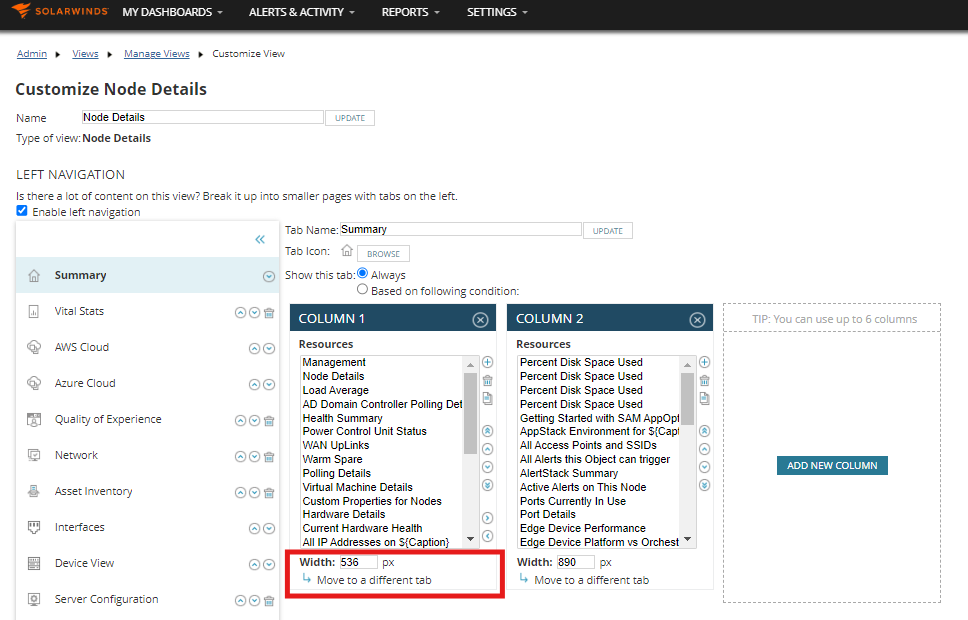

Consider moving additional noncritical resources to other available tables, or you can create your own Tabs.
This will reduce the load from the Node details Summary page and page will load without any delay .




If you continue to experience performance issues, see the Quick Orion database health check guide for assistance.
