Supported vendor OIDs for VLAN monitoring in Orion NPM

This article provides a detailed list of vendor OIDs used by Orion NPM for VLAN monitoring. It also includes Generic OIDs.

First published date

10/22/2018 4:33 PM

Last published date

1/28/2022 2:01 PM

Overview

This article provides detailed list of OID(s) used by Orion NPM in VLAN monitoring.

Please note for VLAN naming convention we use the standard



vtpVlanName OBJECT-TYPE
SYNTAX DisplayString (SIZE (1..32))
MAX-ACCESS read-only
STATUS current
DESCRIPTION
"The name of this VLAN. This name is used as the ELAN-name
for an ATM LAN-Emulation segment of this VLAN."



VLANs over 32 char will not display on the website.

Product section

Orion Platform

Resolution

Below is comprehensive list of vendors and corresponding OID(s):

3Com

MIBOID (NAME)OID (NUMERIC)
A3COM-HUAWEI-LswVLAN-MIBhwdot1qVlanName1.3.6.1.4.1.43.45.1.2.23.1.2.1.1.1.2
hwVlanInterfaceAdminStatus1.3.6.1.4.1.43.45.1.2.23.1.2.1.2.1.5
hwdot1qVlanPorts1.3.6.1.4.1.43.45.1.2.23.1.2.1.1.1.3
A3COM-HUAWEI-LswINF-MIBhwifVLANType1.3.6.1.4.1.43.45.1.2.23.1.1.1.1.5

Cisco

MIBOID (NAME)OID (NUMERIC)
CISCO-VTP-MIBvtpVlanTable1.3.6.1.4.1.9.9.46.1.3.1

Hewlett-Packard (HP) check GENERIC



Juniper

MIBOID (NAME)OID (NUMERIC)
JUNIPER-VLAN-MIBjnxExVlanName1.3.6.1.4.1.2636.3.40.1.5.1.5.1.2
jnxExVlanInterfaceOperStatus1.3.6.1.4.1.2636.3.40.1.5.1.6.1.7
jnxExVlanPortGroupInstance1.3.6.1.4.1.2636.3.40.1.5.1.5.1.4
jnxExVlanPortAccessMode1.3.6.1.4.1.2636.3.40.1.5.1.7.1.5
jnxExVlanTag1.3.6.1.4.1.2636.3.40.1.5.1.5.1.5
jnxExVlanPortStatus1.3.6.1.4.1.2636.3.40.1.5.1.7.1.3

Generic

MIBOID (NAME)OID (NUMERIC)
DOT1Q-BRIDGE-MIBdot1qVlanFdbId1.3.6.1.2.1.17.7.1.4.2.1.3
dot1qVlanStaticName1.3.6.1.2.1.17.7.1.4.3.1.1
dot1qVlanCurrentEgressPorts1.3.6.1.2.1.17.7.1.4.2.1.4

Common

MIBOID (NAME)OID (NUMERIC)
BRIDGE-MIBdot1dBasePortIfIndex1.3.6.1.2.1.17.1.4.1.2



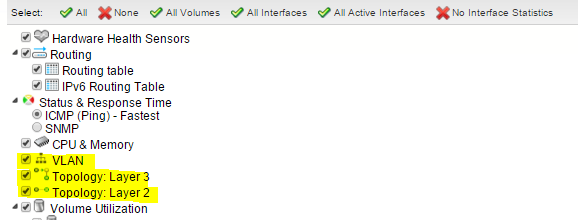

IMPORTANT NOTE

Make sure that your device does list ALL of the OID(s) listed under the vendor specific OID(s) as well as Common ones only then the VLAN will be listed. If any of them will be missing the VLAN poller will be ignored.

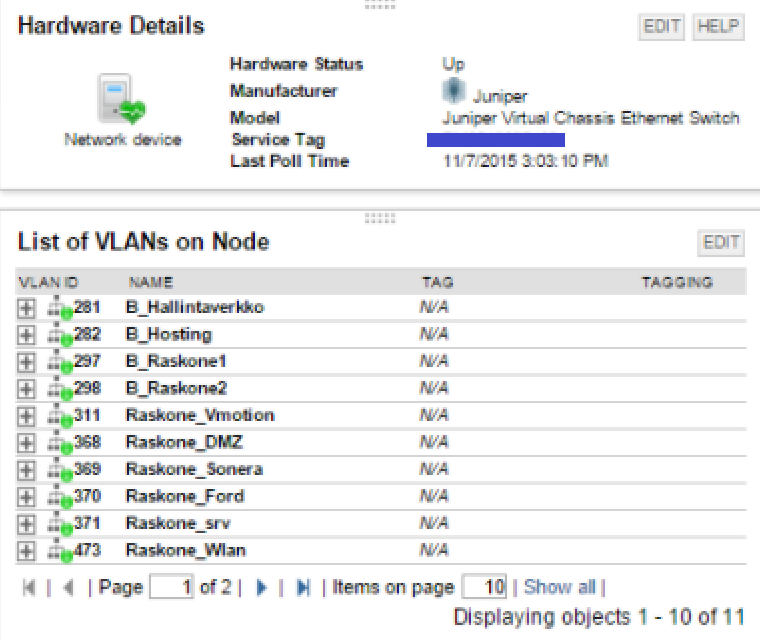

For example Juniper:
  • jnxExVlanName - 1.3.6.1.4.1.2636.3.40.1.5.1.5.1.2
  • jnxExVlanInterfaceOperStatus - 1.3.6.1.4.1.2636.3.40.1.5.1.6.1.7
  • jnxExVlanPortGroupInstance - 1.3.6.1.4.1.2636.3.40.1.5.1.5.1.4
  • jnxExVlanPortAccessMode - 1.3.6.1.4.1.2636.3.40.1.5.1.7.1.5
  • jnxExVlanTag = 1.3.6.1.4.1.2636.3.40.1.5.1.5.1.5
  • jnxExVlanPortStatus = 1.3.6.1.4.1.2636.3.40.1.5.1.7.1.3
  • dot1dBasePortIfIndex = 1.3.6.1.2.1.17.1.4.1.2
