Structure missing on the navigation pane of the Manage Subnets & IP Addresses page in IPAM 2025.2

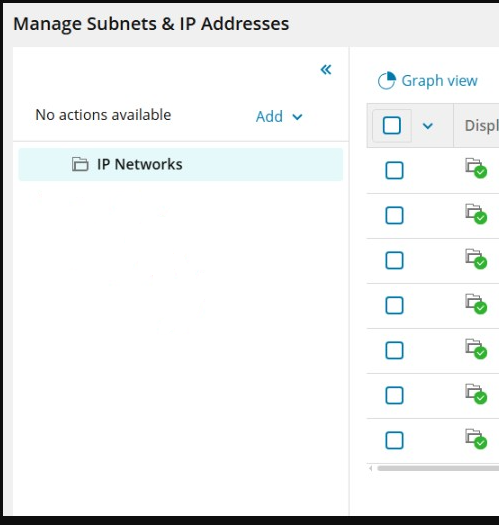

Following an upgrade to IPAM version 2025.2 or 2025.2.1, some users may notice that the IPAM structure no longer appears in the left-hand navigation pane on the Manage Subnets & IP Addresses page. This prevents users from viewing and managing their IP address hierarchy as expected.

The view definition for the Subnet Management page did not include user accounts from Windows/SAML groups, preventing these accounts from appearing in the tree listing.

To workaround the issue, update the database view IPAM_ManageSubnetsAndIpsView in the SolarWindsOrion database to include logic for Windows and SAML group accounts in the Subnet Management tree view by following these steps:

1. Back up the database
2. Open SQL Server Management Studio and connect to the SQL instance hosting the SolarWinds Platform database with admin credentials.
3. Right-click the SolarWindsOrion database and select New Query.
4. Paste the below and select Execute:

-- Scripts are not supported under any SolarWinds support program or service.
-- Scripts are provided AS IS without warranty of any kind. SolarWinds further
-- disclaims all warranties including, without limitation, any implied warranties
-- of merchantability or of fitness for a particular purpose. The risk arising
-- out of the use or performance of the scripts and documentation stays with you.
-- In no event shall SolarWinds or anyone else involved in the creation,
-- production, or delivery of the scripts be liable for any damages whatsoever
-- (including, without limitation, damages for loss of business profits, business
-- interruption, loss of business information, or other pecuniary loss) arising
-- out of the use of or inability to use the scripts or documentation.

IF EXISTS (SELECT * FROM dbo.sysobjects WHERE id = OBJECT_ID(N'[dbo].[IPAM_ManageSubnetsAndIpsView]') AND OBJECTPROPERTY(id, N'IsView') = 1)
BEGIN
    DROP VIEW [dbo].[IPAM_ManageSubnetsAndIpsView]
END
GO



CREATE VIEW [dbo].[IPAM_ManageSubnetsAndIpsView]
AS

WITH RoleTable ([GroupId], [AccountID], [Role], [Distance])
AS (
    SELECT
                groupAncestors.[GroupId]
            ,    groupRole.[AccountId]
            ,    groupRole.[Role]
            ,    groupAncestors.[Distance]
    FROM
            dbo.[IPAM_GroupAncestors] groupAncestors
    INNER JOIN
            dbo.[IPAM_GroupRole] groupRole
    ON
            groupRole.[GroupId] = groupAncestors.[AncestorGroupId]
    WHERE
             groupRole.[Role] IS NOT NULL
)

SELECT
            ipamGroup.GroupId AS [GroupId]
        ,    groupType.GroupTypeId AS [GroupType]
        ,    ipamGroup.FriendlyName  AS [FriendlyName]
        ,    ipamGroup.Comments  AS [Comments]
        ,    ipamGroup.Address AS [Address]
        ,   ipamGroup.AddressMask AS [AddressMask]
        ,    ipamGroup.AddressN AS [AddressN]
        ,    ipamGroup.CIDR AS [CIDR]
        ,    LOWER(ISNULL( groupType.GroupIconPrefix, 'unknown' )) as [GroupIconPrefix]
        ,    LOWER(si.IconPostfix) as [StatusIconPostfix]
        ,    (CASE WHEN p.[Role] IS NOT NULL THEN p.[Role] ELSE
                (
                    CASE WHEN webUserSettings.[SettingValue]
                        IN ('SiteAdmin', 'PowerUser', 'Operator', 'ReadOnly', 'NoAccess')
                        THEN webUserSettings.[SettingValue]
                        ELSE
                            (
                                CASE acc.[AllowAdmin]
                                    WHEN 'Y' THEN 'SiteAdmin'
                                    ELSE 'ReadOnly'
                                END
                            )
                        END
                )
            END) AS [Role]
        ,    anc.Distance
        ,    anc.AncestorGroupId AS [AncestorId]
        ,    CASE WHEN webUserSettings.SettingValue = ''
                    THEN ( CASE WHEN customRolesHasChildrenInfo.GroupId IS NULL THEN 0 ELSE 1 END )
                    ELSE ( CASE WHEN hasChildrenInfo.GroupId IS NULL THEN 0 ELSE 1 END )
            END AS [HasChildren]
        ,    hasSubnetsInfo.HasSubnets AS [HasSubnets]
        ,    acc.AccountID AS [AccountID]
        ,    ipamGroup.ClusterId AS [ClusterId]
    FROM
        dbo.[IPAM_GroupAncestors] anc
        LEFT JOIN
                dbo.IPAM_Group ipamGroup ON ipamGroup.GroupId = anc.GroupId
        LEFT JOIN
                dbo.IPAM_GroupType groupType ON ipamGroup.GroupType = groupType.GroupTypeId
        LEFT JOIN
                dbo.StatusInfo si ON ipamGroup.Status = si.StatusId
        INNER JOIN
                dbo.[Accounts] acc ON acc.[AccountType] IN (1, 2, 4, 5)
        LEFT JOIN   (
                        SELECT
                                rt.[GroupId], rt.[AccountID], rt.[Role], rt.[Distance]
                        FROM
                                RoleTable rt WHERE rt.[Distance] =
                        (
                            SELECT
                                    MIN(m.Distance)
                            FROM
                                    RoleTable m
                            WHERE
                                    rt.[GroupId] = m.[GroupId] AND rt.[AccountID] = m.[AccountID]
                        )
                    ) p ON p.[GroupId] = anc.[GroupId]
                        AND
                            LOWER(p.[AccountID]) = (
                                                    CASE
                                                        WHEN acc.[AccountType] = 4 THEN LOWER(acc.[GroupInfo])
                                                        ELSE LOWER(acc.[AccountID])
                                                    END
                                                    )
        LEFT JOIN
                dbo.[WebUserSettings] webUserSettings
        ON
                webUserSettings.[SettingName] = 'IPAM.IPAMAccountRole' AND LOWER(webUserSettings.[AccountID]) = (
                        CASE
                            WHEN acc.[AccountType] = 4 THEN LOWER(acc.[GroupInfo])
                            ELSE LOWER(acc.[AccountID])
                        END
                )
        LEFT JOIN   (
                        SELECT
                                ipamGroupHasSubnetInfo.ClusterId, COUNT(ipamGroupHasSubnetInfo.GroupId) as HasSubnets
                        FROM
                                dbo.IPAM_Group ipamGroupHasSubnetInfo
                        WHERE
                                ipamGroupHasSubnetInfo.GroupType <> 32
                        AND
                                ipamGroupHasSubnetInfo.GroupType <> 2
                        AND
                                ipamGroupHasSubnetInfo.ParentId IS NOT NULL
                        GROUP by ClusterId
                    ) hasSubnetsInfo ON ipamGroup.GroupId = hasSubnetsInfo.ClusterId
        LEFT JOIN   (
                        SELECT
                                  g.GroupId, rt.AccountID
                        FROM
                                IPAM_Group g
                          LEFT JOIN
                                IPAM_GroupAncestors ga ON g.GroupId = ga.AncestorGroupId AND ga.Distance = 1
                          LEFT JOIN
                                RoleTable rt ON ga.GroupId = rt.GroupId
                          LEFT JOIN
                                IPAM_Group gt ON rt.GroupId = gt.GroupId
                        WHERE
                                (rt.Role != 'NoAccess' AND gt.GroupType IN (1,4,8,16,128,256,512)) OR gt.GroupType = 2
                        GROUP BY
                                g.GroupId, rt.AccountID
                    ) customRolesHasChildrenInfo ON ipamGroup.GroupId = customRolesHasChildrenInfo.GroupId AND
                    webUserSettings.AccountID = customRolesHasChildrenInfo.AccountID
        LEFT JOIN   (
                        SELECT
                                ipamGroupChildrenCount.ParentId AS GroupId
                        FROM
                                dbo.IPAM_Group ipamGroupChildrenCount
                        WHERE
                                ipamGroupChildrenCount.ParentId IS NOT NULL AND ipamGroupChildrenCount.GroupType IN (1,2,4,8,16,128,256,512)
                        GROUP by ParentId
                    ) hasChildrenInfo ON ipamGroup.GroupId = hasChildrenInfo.GroupId
    WHERE
        groupType.GroupTypeId IN (1,2,4,8,16,128,256,512)
GO
