Set the status thresholds for Universal Device Poller using Web Console

Configure up, warning, and critical thresholds to be used by Universal Device Poller.

First published date

11/2/2018 7:49 PM

Last published date

11/29/2022 4:00 PM

Overview

The Universal Device Poller (UnDP) has three statuses, namely:

  • Up (green),
  • Warning (yellow)
  • Critical (red)

From the Web Console you can set the threshold values for the Warning and Critical states.

Product section

Network Performance Monitor

Resolution

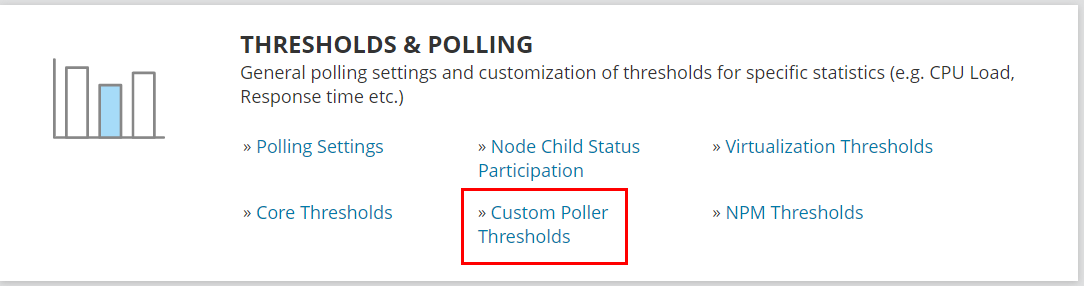

  1. Click Web Console > Settings > All Settings > THRESHOLDS & POLLING > Custom Poller Thresholds.

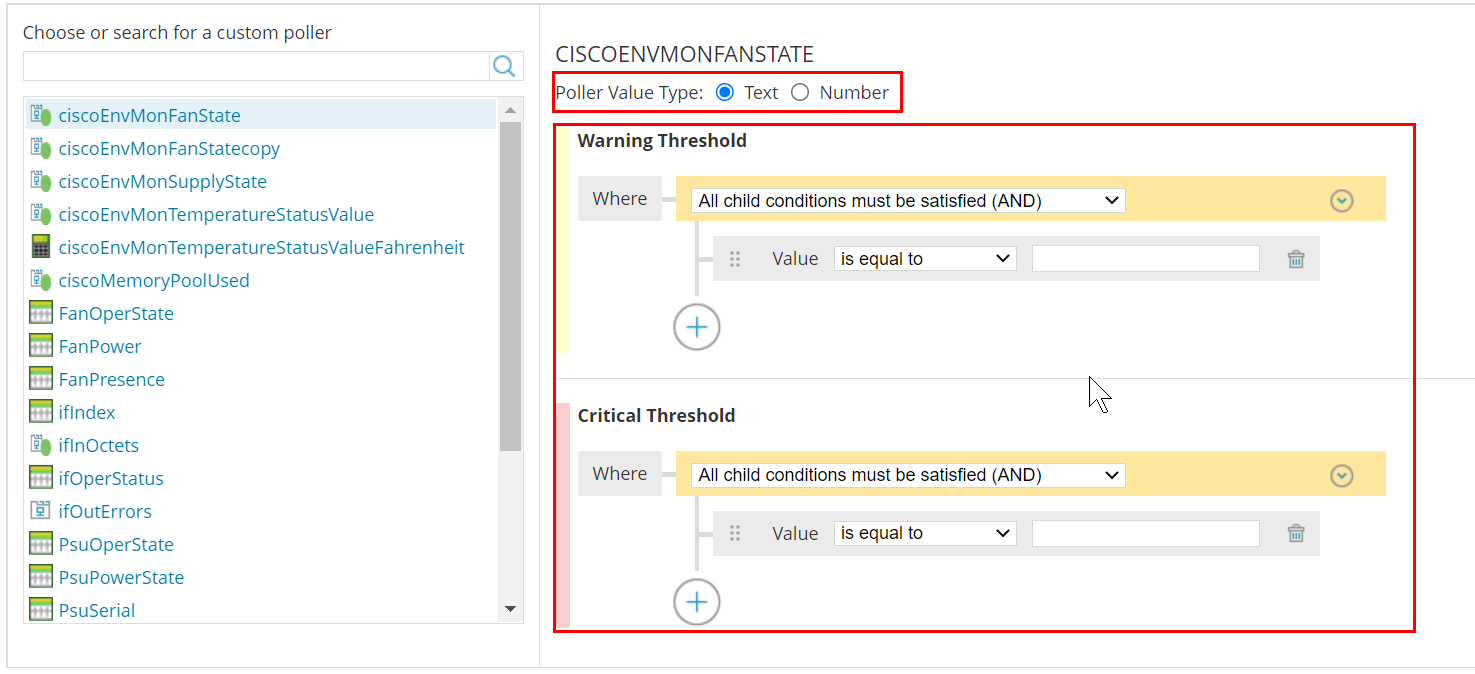

  2. Click on a Custom Poller on the left panel.
  3. Specify Poller Value Type - Text or Number (Check if your poller returns number or text)
  4. Specify values for Warning Threshold and Critical Threshold.

  5. Click Submit.
