Overall Running vs. StartUp Config Conflicts chart in NCM displays mixed values

Overall Running vs. StartUp Config Conflicts Chart displays mixed values.

First published date

10/9/2018 9:15 PM

Last published date

12/17/2025 4:12 PM

Overview

This article explains the cause of having mix values for Overall Running vs Startup Config Conflicts charts.

This helps you to understand the values in Conflict/Non-Conflict/Unknown and details how to correct the Unknown values showing in the pie chart.

Product section

Network Configuration Manager

Cause

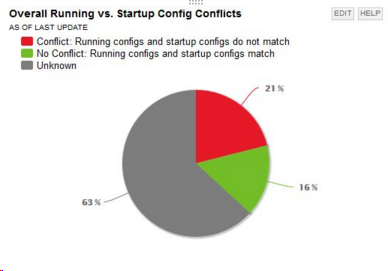

The Conflict status shows as red for the devices you have downloaded for both startup-configuration and running-configuration. When NCM compares both configuration, it finds. Therefore, the pie chart is depicted as red for these devices .

The No Conflict status shows as green for the devices you have downloaded for both startup-configuration and running-configuration. When NCM compares both configuration, it finds NO conflicts. Therefore, the pie chart is depicted as green for these devices .

Part of the pie chart is showing as Unknown for the devices added in the Orion NCM for one of the following reasons:

  • There was no configuration downloaded from these devices.
  • There is only either a startup-configuration or a running-configuration that was downloaded.
Therefore, the status for the conflict is unknown.  This part of the pie is depicted as gray.

Resolution

To correct the Unknown status, see Overall Running vs. StartUp Config Conflicts Chart shows Unknown .
