Orion performance issues related to a large volume of Syslog and Trap messages

This article provides information about the Orion performance having an issue with its environment where a large volume of Trap or Syslog messages are being processed by Orion.

First published date

10/16/2018 5:24 PM

Last published date

3/30/2022 11:31 PM

Overview

This article provides a number of solutions that may help reduce the impact of very high volumes of Trap or Syslogs on the Orion system, firstly by changing the logging levels of the devices that send the Syslogs and Traps or using the Syslog and Trap rules on Syslog and Trap Viewer and information on how to use additional external Solarwinds products to reduce the load of Syslog and Trap messages that may impact on Orion performance.

Product section

Network Performance Monitor

Cause

Syslog and Trap messages may be critical to your organization but very high volumes may impact on the Orion server performance either through processing overheads or network resources.

Resolution

1. Managing the Sylogs and traps at source

Syslog and Trap messages are organized in Severity levels Emergency, Alert, Critical, Error, Warning, Notification, Informational and Debugging. In most devices, the logging can be set to only send specific levels of Syslog or Trap messages. This would have the effect of managing the Syslogs and Traps before they are sent from the device.



2. Managing Syslogs and Traps in Orion

The volume can be managed in Orion using the Syslog and Trap viewer Rules to manage and discard certain levels or types of message before they are written to the SQL database as described in these articles:



Note: This approach can be used if the large volume of Syslogs or Traps affects the Orion database, but would not help if the effect on the Orion collector service or Network Interface is being adversely affected.



3. Filtering the Syslogs and Traps between the sending device and Orion

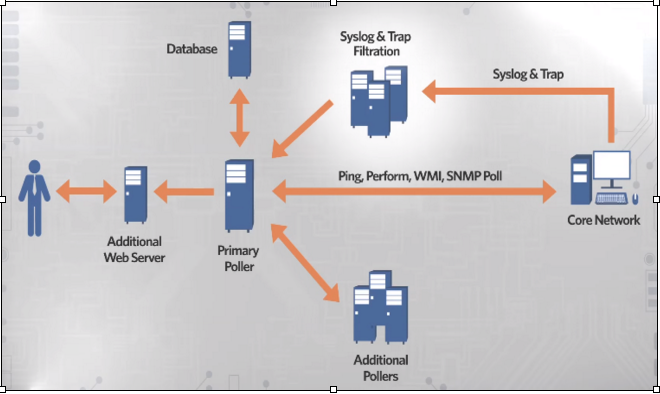

This approach would utilize other SolarWinds products, such as Log and Event Manager (LEM) or Kiwi Syslog to receive the Syslog and Trap messages sent from your devices, and using these products to filter only the most important Syslog or Trap messages and then forwarding only those message to Orion. This approach shows more benefit as your deployment scales to monitor larger networks.
