Network Management

Orion custom table poller current status Alert for NPM returning multiple rows

Steps for setting up an Orion custom table poller current status Alert

First published date

5/3/2019 10:28 PM

Last published date

12/29/2022 6:18 PM

Overview

How to setup a SolarWinds Orion custom table poller current status Alert. There is a specific trigger section to use.

Product section

Orion Platform

Cause

special alert trigger section for UnDPs that return multiple results

Resolution

1.  Key is to Start by setting Trigger Condition's Alert on: Custom Table Poller Current Status (Not Custom Poller or Node)

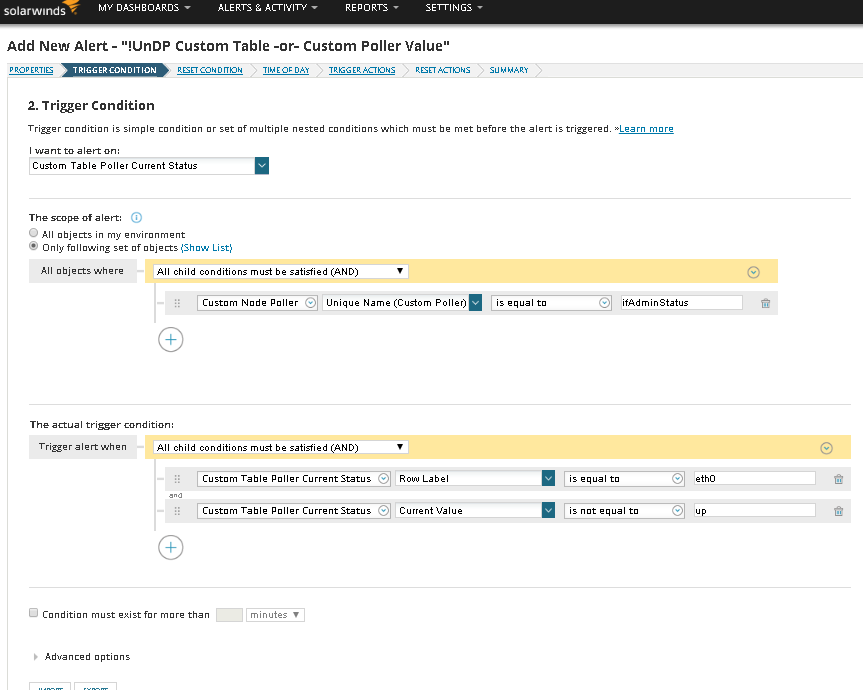

Sample Alert Trigger condition shows diagram of referencing an

'SNMP OID Tables' based on

'Interface Admin Status' Value

enumerated to 'up' and using the

Interfaces ifDesc as a Label = 'eth0'(instead of defaulted 1st column in table).





2. Next important step is in the Trigger Action...

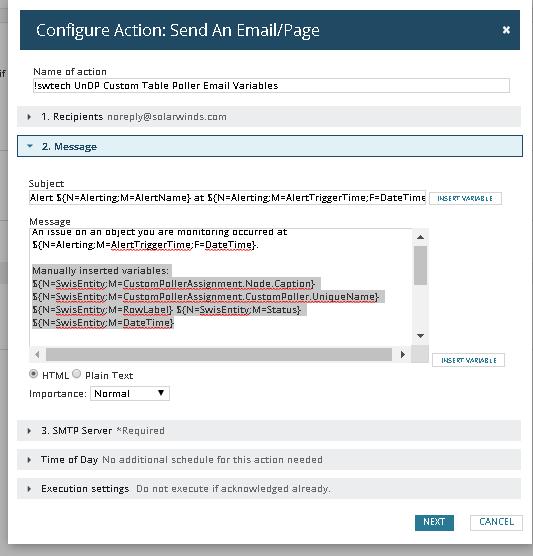

In the sample Email action; One must manual 'insert variable' associated to the CustomTablePoller Table as the primary table.. (ie; Not the normal Node table)

I suggest these are best to use for proper information.Manually inserted variables:


${N=SwisEntity;M=CustomPollerAssignment.Node.Caption}

${N=SwisEntity;M=CustomPollerAssignment.CustomPoller.UniqueName}

${N=SwisEntity;M=RowLabel} ${N=SwisEntity;M=Status}

${N=SwisEntity;M=DateTime}





Those are the 2 key references.  Here is an output of the email alert sampled here.
