Network Management

Orion Web console behind Azure Application Proxy (AAP)

Tips while running Orion Web console with Azure Application Proxy (AAP).

First published date

1/12/2023 10:11 AM

Last published date

1/12/2023 10:11 AM

Overview

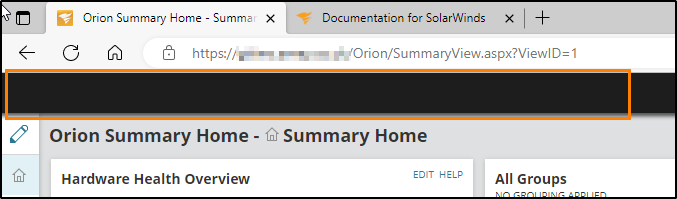

While running the Orion Web console behind the Azure Application Proxy (AAP), you may have some of the web components missing, for example, the menu bar:

Product section

Orion Platform

Cause

Translation of HTTP headers by Azure Application Proxy (AAP).

Resolution

To fix the issue, you may try to disable Translate Urls in headers option in the Azure Application Proxy (AAP) configuration, which is enabled by default. For details, please refer to the Azure documentation.

Add an on-premises application for remote access through application proxy in Microsoft Entra ID. - Microsoft Entra ID | Microsoft Learn
