Node status on the Worldwide Map
This article provides information on the node status on the Worldwide Map.
First published date
10/25/2018 9:12 PM
Last published date
9/10/2020 3:11 PM
Overview
This would provide the Node data on status, as seen in the Worldwide Map
Product section
Network Performance Monitor
Resolution
The Worldwide Map does not show links or WAN links between nodes. However, it displays nodes depending on the status. The table below shows the node status and their color.
| Node Status | Color |
| Node Up | Green |
| Node Down | Red |
| Node Warning | Yellow |
Note: If a node is up but there is a warning on an interface, hover over the node to see the warning.

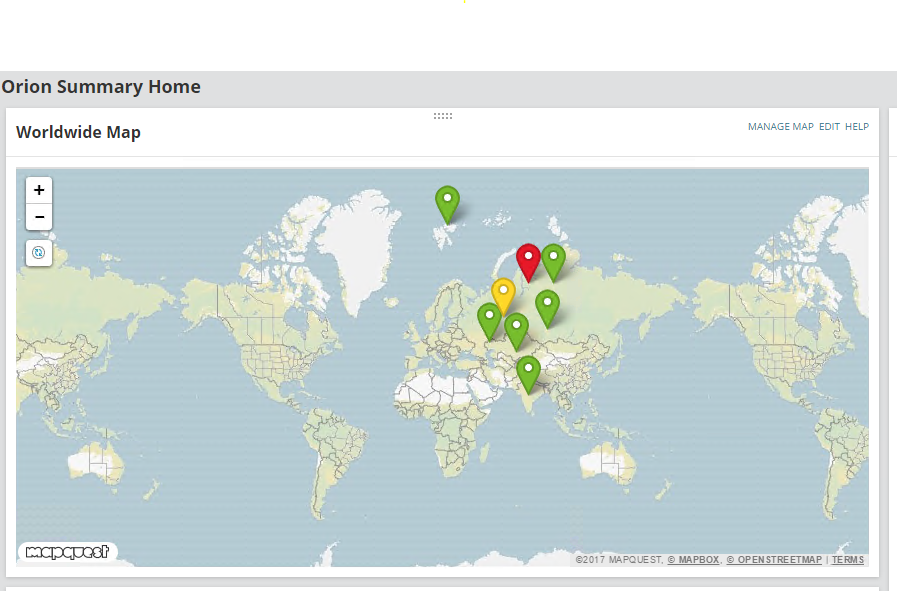

The image below is an example of a Node Down but shows yellow in color. To fix this, do a fast polling for one minute after the node
turns red.
