NetPath: PercentPortClosed 100% is over the critical threshold 25%

NetPath displays the following error message: "PercentPortClosed 100% is over the critical threshold 25%". This error occurs when NetPath has reached the endpoint server but the port was closed.

First published date

10/9/2018 3:49 PM

Last published date

2/21/2023 12:08 AM

Overview

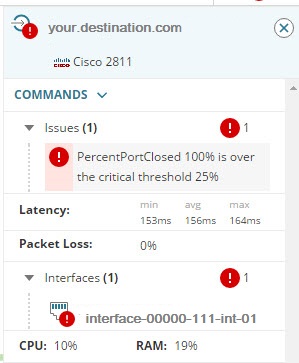

Netpath appears to be working correctly but the following error message is displayed:
PercentPortClosed 100% is over the critical threshold is 25%

Product section

Network Performance Monitor

Cause

The error message occurs when NetPath has reached the endpoint server but the port was closed.

Resolution

The endpoint service must be running on tcp/161 not udp/161.
NetPath probes TCP ports.
If it is truly tcp/161, use PsPing (© 2019 Microsoft, available at https://docs.microsoft.com, obtained on March 15, 2019) to test the port availability from NetPath probe machine. The error message NetPath reported means NetPath reached the endpoint server but the port was closed.

Open the following ports on your firewall for network connectivity used by NetPath:

PORT OR CODE	SOURCE	DESTINATION	PROTOCOL	DESCRIPTION
17778	NetPath probe	Orion polling engine	TCP	Used to send information back to your SolarWinds Orion server.
11	Networking devices along your path	NetPathprobe	ICMP	Used by the NetPath probe to discover network paths.
User configured	NetPath probe	Endpoint service	TCP	Any ports of the monitored services that are assigned to the probe. Used by the NetPath probe to discover service status.
43	NPM polling engine	BGP data providers	TCP	Used by NetPath to query IP ownership and other information about the discovered IP addresses.

For further information please see:

NetPath requirements for NPM
