NTA Report - Ports/Application Name

This article discusses how you can create a report for NTA that displays Ports, Application Name, and Source & Destination for one specific node.

First published date

10/19/2018 6:34 PM

Last published date

10/19/2018 6:34 PM

Overview

This article discusses how you can create a report for NTA that displays Ports, Application Name, and Source & Destination for one specific node.

Product section

Netflow Traffic Analyzer

Resolution

  1.  Create a new Custom Table.

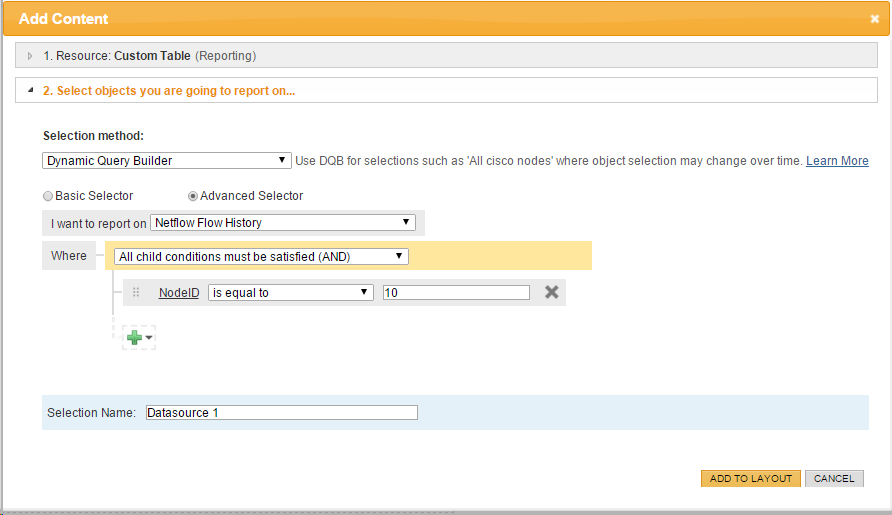

  2.  Setup Dynamic Query Builder as shown below:



Note: Change the NodeId of your desired device you want to filter the data out for.



 3.  Edit the Table Columns and add Application Name & TCP/UDP Port Name that is located on the left of the window pane (Netflow Application). Then the last fields needed are Source & Destination under Netflow Flows History on the left of the window pane.

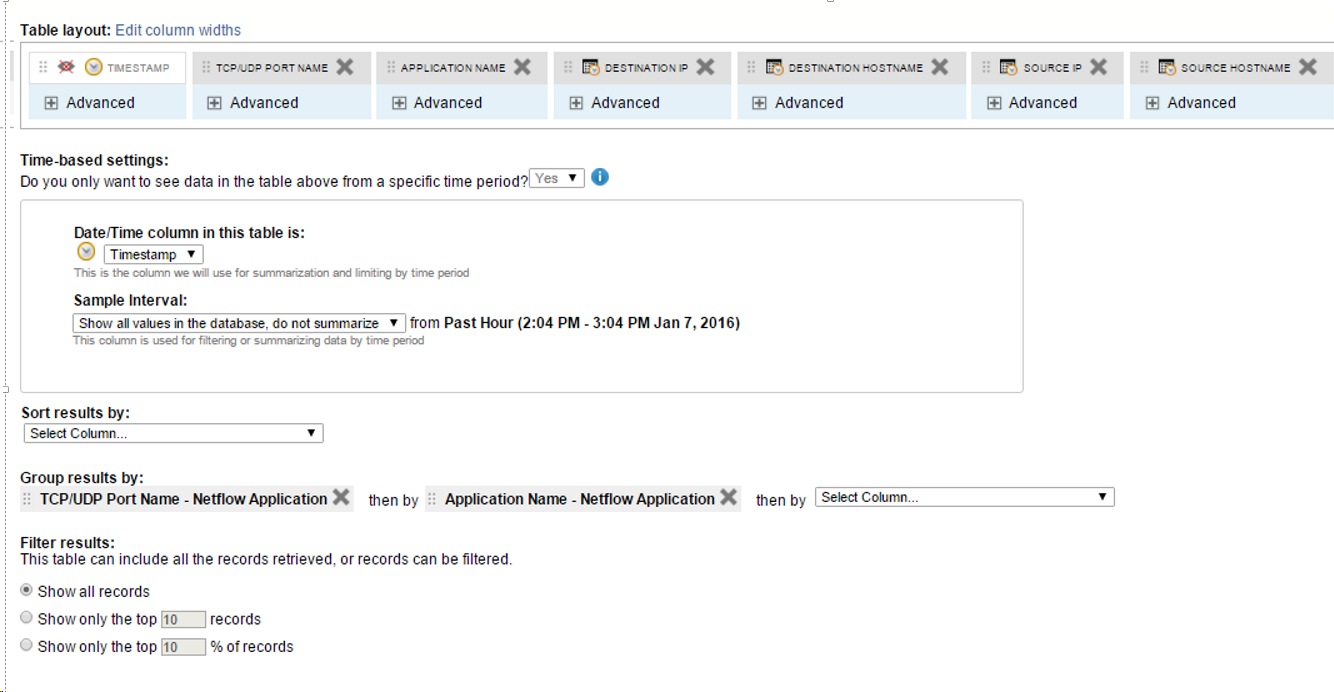

4. The image below displays how the Table should look like:





5. Submit the changes and then follow the wizard by clicking Next to save the report.
