Network Management

NPM Discovery error: Discovery has been interrupted by timeout

This article provides steps to resolve the following error when discovering large or multiple subnets: Discovery has been interrupted by timeout. Results of discovery are not completed

First published date

10/24/2018 3:44 PM

Last published date

9/18/2023 3:43 PM

Overview

This article provides steps to resolve the following error when discovering large or multiple subnets:

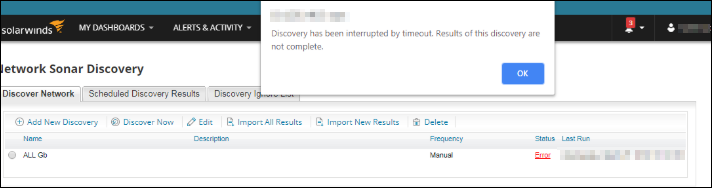

Discovery has been interrupted by timeout. Results of discovery are not completed

Product section

Network Performance Monitor

Cause

Timeout on discovery.

Resolution

  1. Go to Settings > Getting started with Orion> Network Sonar Discovery.
  2. Click the discovery that fails and select Edit.
  3. Click Next until you get to the Discovery Settings tab.

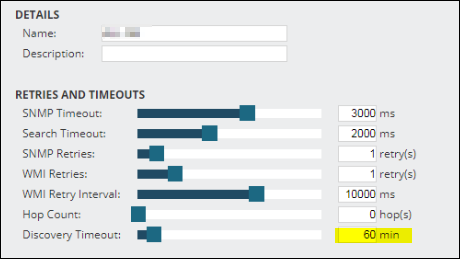

  4. Adjust the discovery timeout with the slide bar.


Note - having numerous SNMP/WMI/Agent/NCM credentials will also impact the time the discovery job takes.
