Network Management

NCM jobs fail with the message Does not respond to SNMP queries

How to adjust the NCM SNMP response time.

First published date

4/9/2019 11:06 PM

Last published date

4/4/2020 12:51 AM

Overview

NCM jobs that use SNMP queries fail with the message:

Does not respond to SNMP queries using <NCM Server>

Product section

Network Configuration Manager

Cause

The jobs are being executed on nodes that have a response time higher than default NCM SNMP response time of 100ms.

Resolution

Adjust the NCM SNMP response time.

In the Orion Web Console, click Settings > All Settings.
Under Product Specific Settings, click NCM Settings.

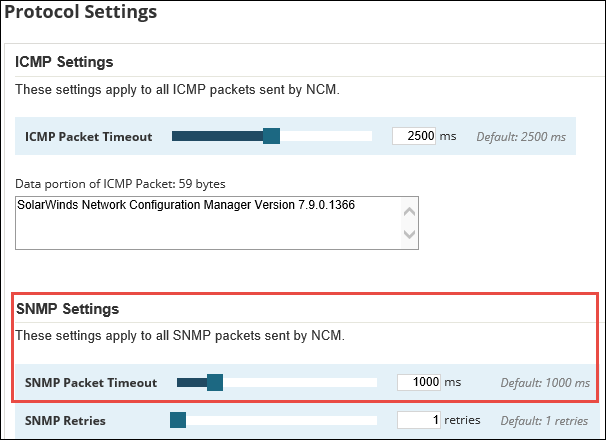

Under Network, click Protocol Settings.
Under SNMP Settings, increase the SNMP Packet Timeout value.
