NCM 2022.3 Error: Network Share Settings Failure in Binary Config Storage

This article provides information and resolution about the error in the Binary Config Storage Settings in NCM with version 2022.3.0

First published date

2/9/2024 1:36 AM

Last published date

2/4/2026 12:14 AM

Overview

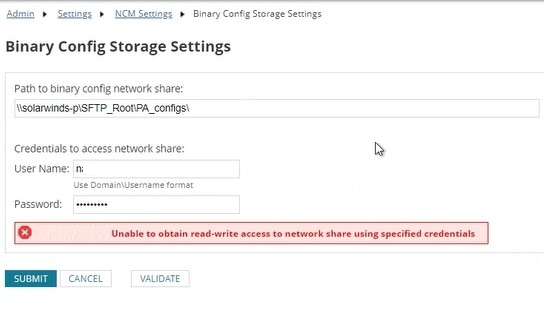

For NCM in version 2022.3.0, an error {ServerName}: Unable to contain read-write access to network share specified credential displays, even when the user has read-write access to the Network Share and can RDP to the target server.

NOTE: Using the local admin account will provide the same error.


The NCMBusinessLayerPlugin.Log shows the following error.

<Timestamp> [47] WARN SolarWinds.NCM.Transfer.BinaryConfigStorageManager - Trying to copy binary config file from E:\SFTP_Root\wnhnf2wtjfj.config to \\solarwinds-p\SFTP_Root\PA_configs\3afd5456-607e-4595-8616-15f29d596481.config


or

SolarWinds.Cirrus.BusinessLayer.MirrorCopy.MirrorConfigCopy - Unable to save text mirror copy.System.IO.DirectoryNotFoundException: The config archive directory '\\Autx-StoreOnce2\SolarWinds' doesn't exist. In the NCM Config Settings please validate all config archive directories.
at SolarWinds.Cirrus.BusinessLayer.MirrorCopy.MirrorCopySettings.BuildConfigArchiveFilepath(Guid nodeId, String configType)
at SolarWinds.Cirrus.BusinessLayer.MirrorCopy.MirrorConfigCopy.ArchiveText(TextMirrorCopy data)

Product section

Network Configuration Manager

Cause

This is a known issue in NCM 2022.3.

Resolution

This is addressed in SolarWinds Version 2023.2. Consider upgrading your environment.
