Min/Max/Average bps In/Out sample interval for one or five minutes displays dots in the chart instead of lines
This article provides brief information and steps to resolve the issue when viewing the Min or Max and Average bps In or Out charts in the Interface Details view for a sample interval set for one minute displays dots in the chart.
First published date
10/25/2018 7:32 PM
Last published date
3/23/2022 7:08 PM
Overview
When the sample interval is shorter than the statistics collection interval, charts have dots instead of lines.
Product section
Network Performance Monitor
Cause
The interface polling statistics is set to 9 minutes by default. When setting the sample interval on the chart to something shorter than the statistics collection interval, lines cannot be generated because the chart is trying to display absent data.
Resolution
The best way to resolve this issue is to adjust the chart and set the sample interval to a time equal to or greater than the statistics polling interval.
If collecting statistics more frequently on select interfaces is essential, then adjust the statistics collection frequency.
If collecting statistics more frequently on select interfaces is essential, then adjust the statistics collection frequency.

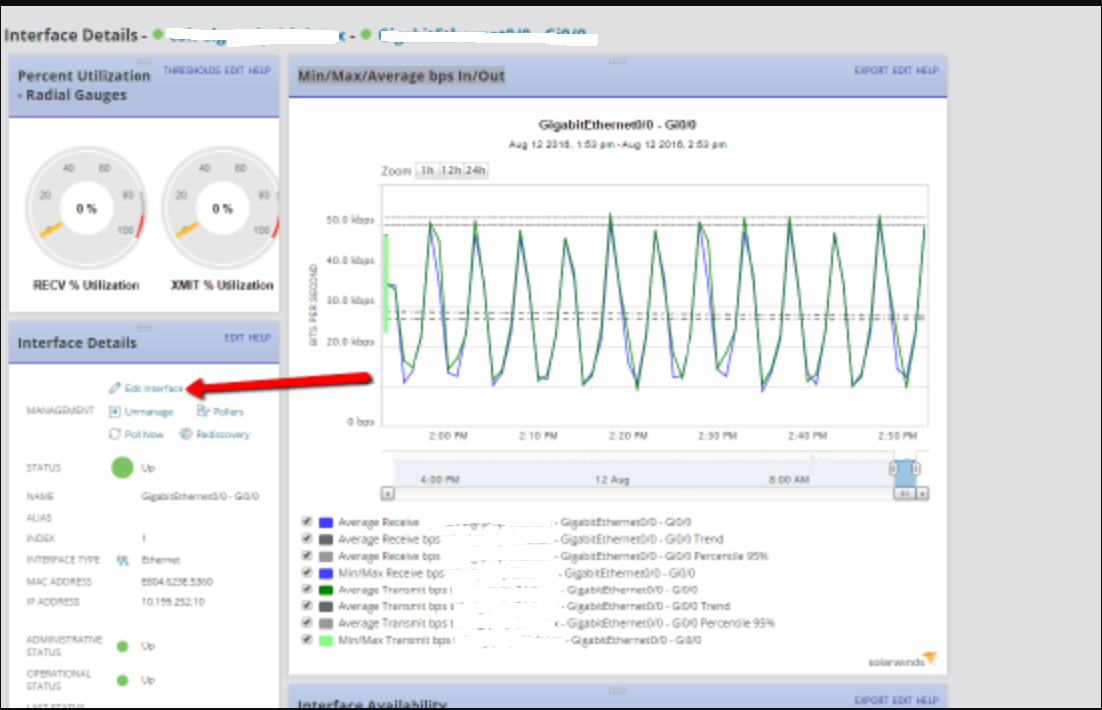

- Go to the Interface Details page for the target port.

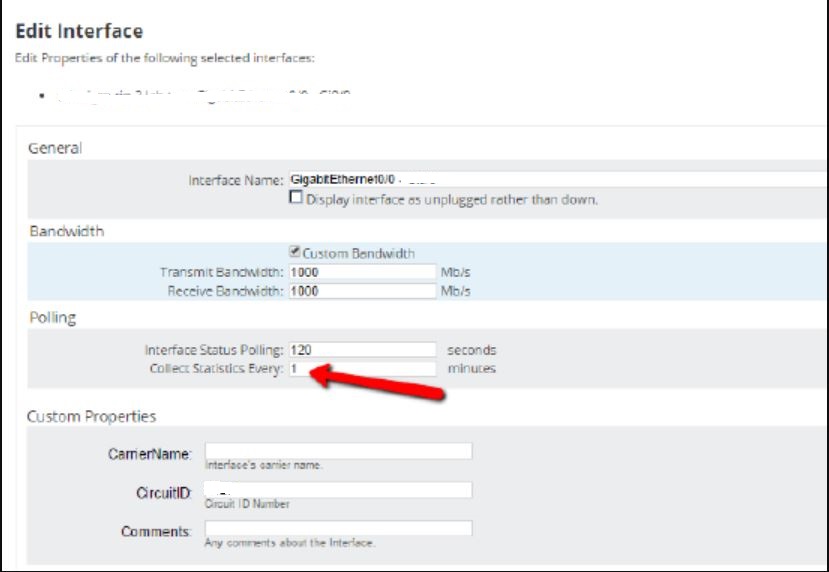

- Set the Collect Statistics to 1 minute.
- Click submit and allow polling to collect data so data going forward will display in one minute intervals.
- Note: This will increase data in the database and will affect performance. Setting this to all interfaces is not recommended, but make sure the servers have enough resources to handle the load.
