MIB tables required by User Device Tracker for Layer 2 information

A diagram showing the required tables by User Device Tracker for retrieving layer 2 information from devices. The attached diagram shows the tables required by User Device Tracker (UDT) for retrieving layer 2 information from devices. Users can use this diagram and compare it to a RFC list provided by the vendor of their device.

First published date

10/17/2018 12:35 AM

Last published date

12/21/2022 5:28 PM

Overview

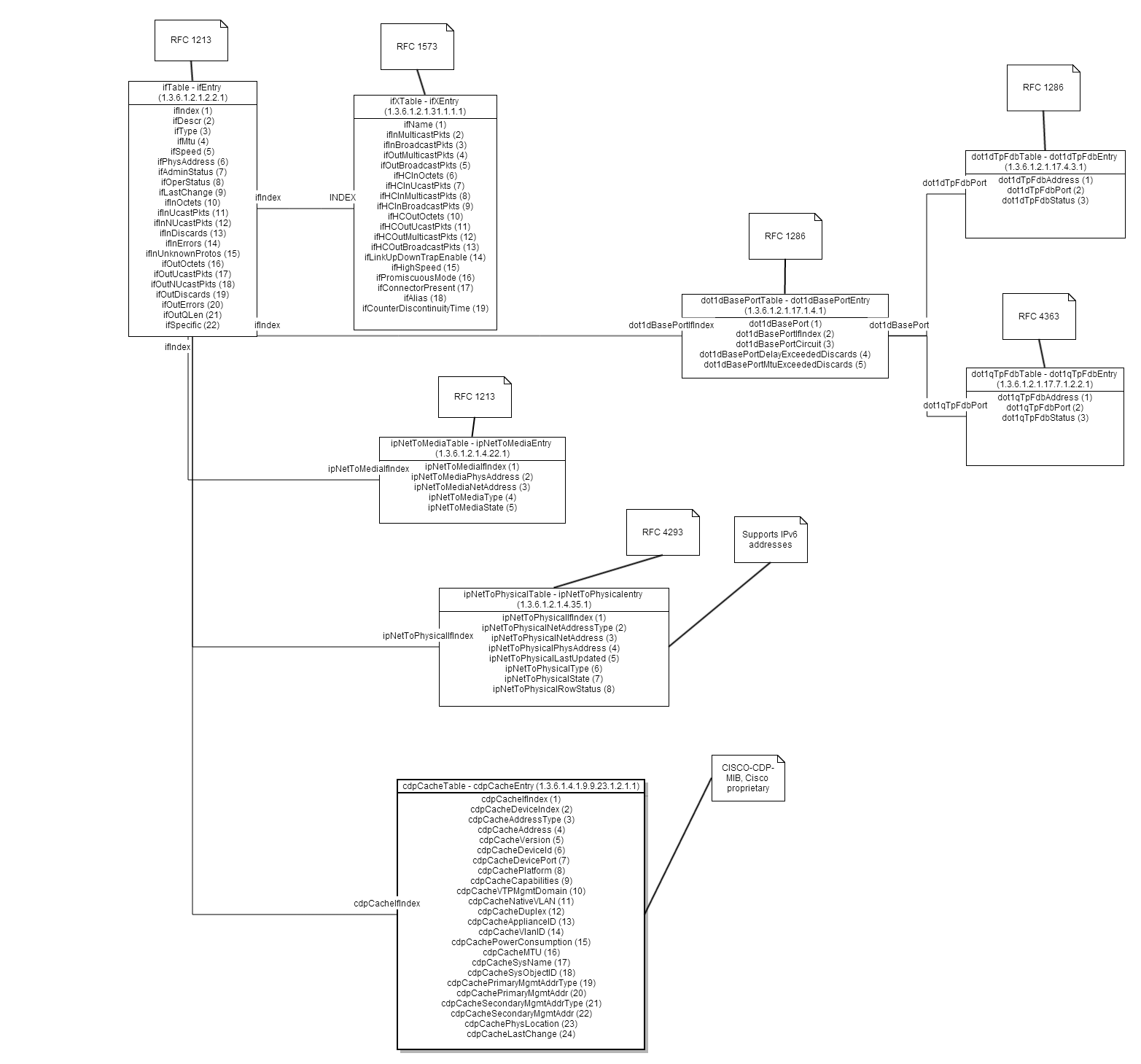

The attached diagram shows the tables required by User Device Tracker (UDT) for retrieving layer 2 information from devices. Users can use this diagram and compare it to a RFC list provided by the vendor of their device. Doing this will help determine if the device supports the retrieval of layer 2 information.

Product section

User Device Tracker

Resolution

Note: For a larger version of the following diagram, perform a right click and save the image to your computer. Once saved, open the image with a photo viewer.
