Kiwi Syslog logs to store with SQL database setup screen shots

Log Kiwi Syslog Daemon to a MS SQL database, storing kiwi syslog in sql database.

First published date

11/29/2018 10:37 PM

Last published date

2/4/2026 12:33 AM

Overview

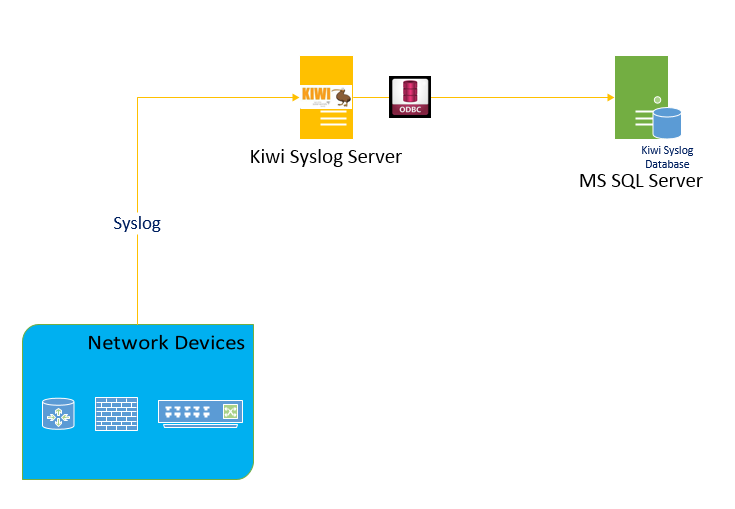

This article provides screen shots for  Log Kiwi Syslog Daemon to a MS SQL database

Product section

Kiwi Syslog Server

Resolution

NOTE: The steps below apply only to Microsoft SQL. MySQL is unsupported in this context.

  1. Create DB for Kiwi Syslog  in SQL Server.
  2. Create ODBC (System DSN) on Kiwi Syslog Server.

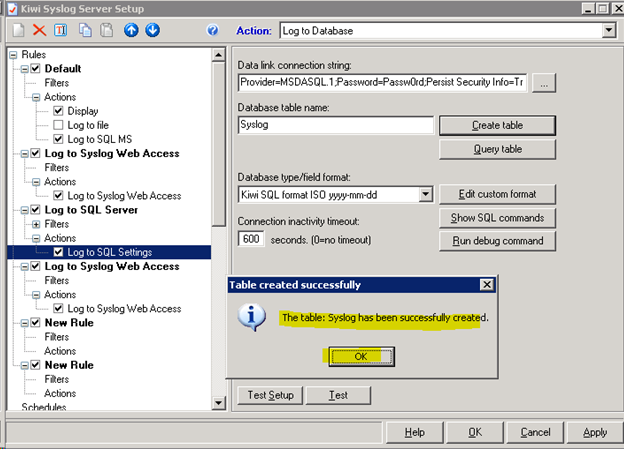

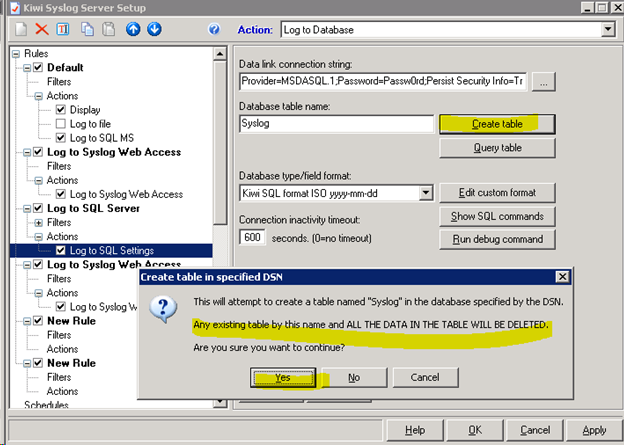

  3. Create Action in Kiwi Syslog to Store syslogs in MS SQL DB.

  • Create DB for Kiwi Syslog in SQL Server

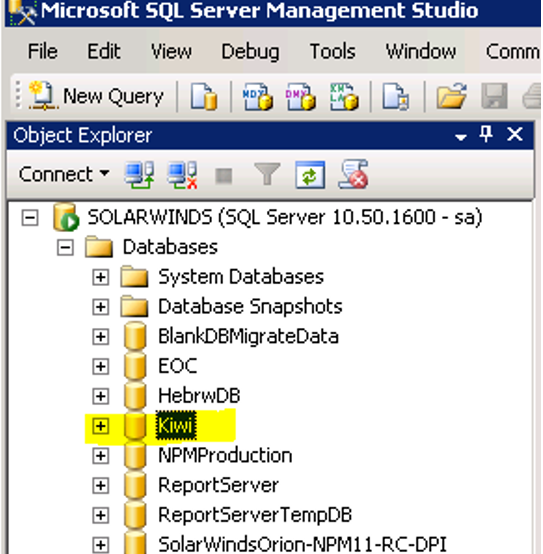

On your SQL server create new database called Kiwi  SQL Management Studio Direct Download Link



  • Create ODBC (System DSN) on Kiwi Syslog Server

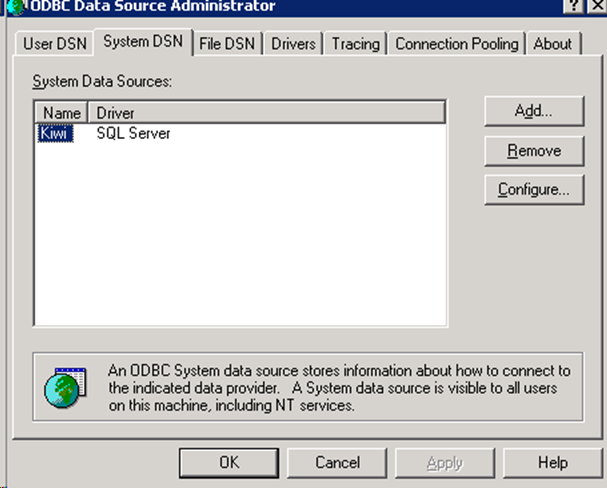

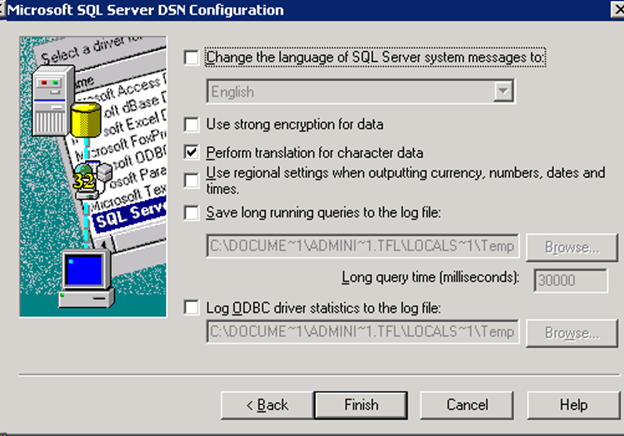

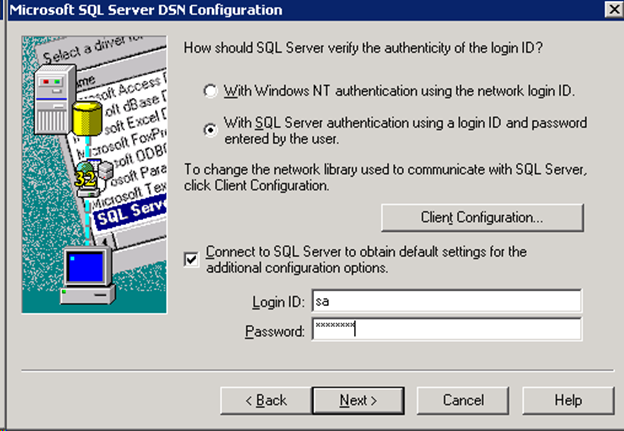

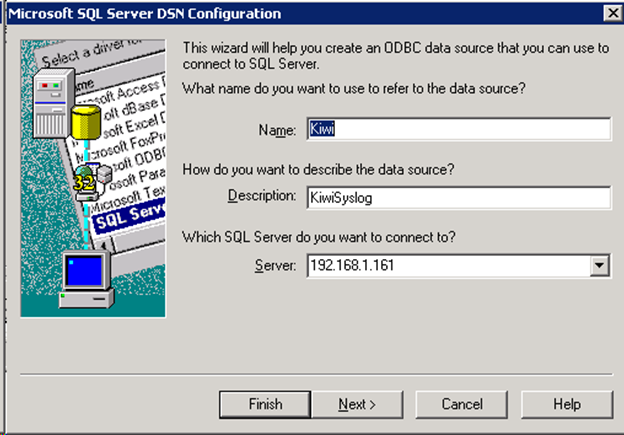

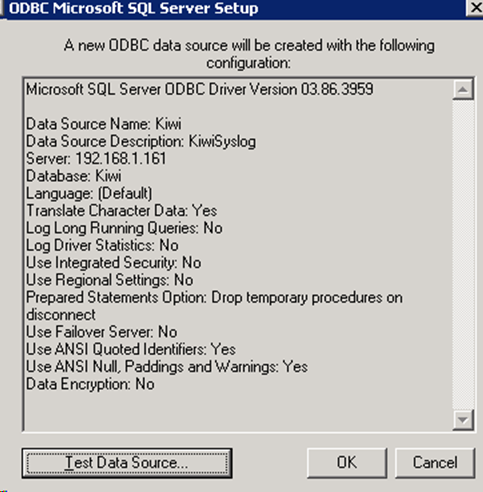

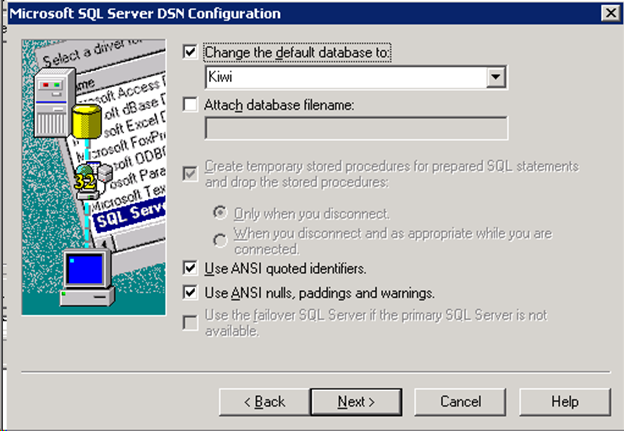

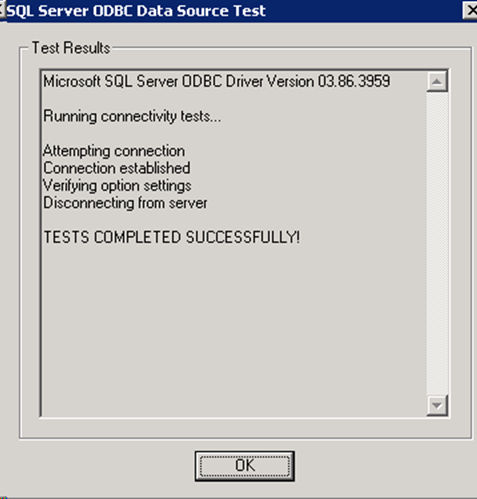

Select the System Data Source, and click Add. Follow the prompts to create the ODBC on Kiwi Syslog Server.

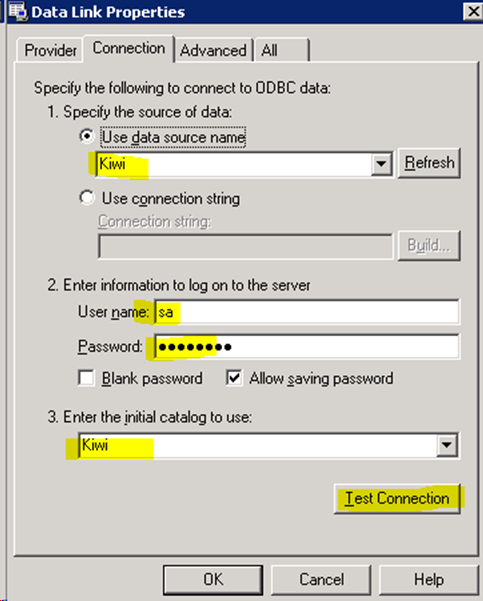

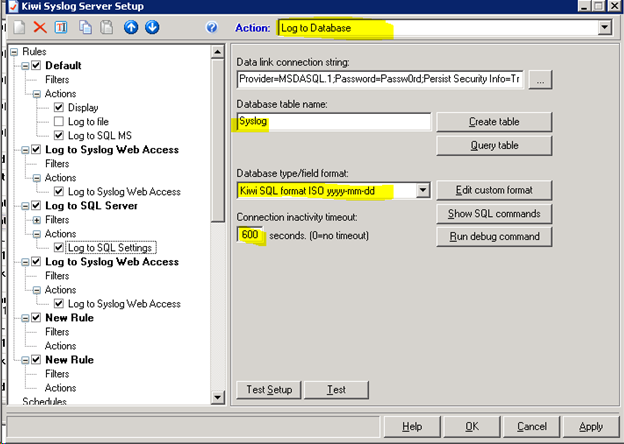

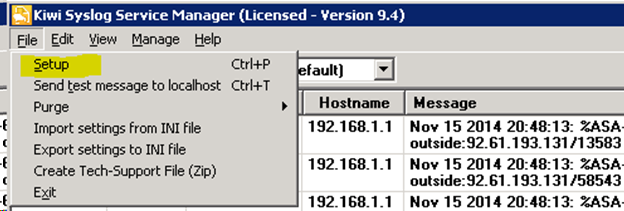

  • Call the SQL DSN Under Kiwi Syslog Server Setup and verify the ODBC Connection















Data will be stored within the SQL server with Kiwi database. Kiwi Syslog Server writes a new log for each device daily, by default.

To learn more about this product, see Documentation for Kiwi Syslog Server .
