Network Management

Interface alerts re-trigger for Interface Down

This article provides steps to resolve the issue when Alerts re-trigger on Interface Down even when the interface has been down for a while.

First published date

10/19/2018 7:58 PM

Last published date

3/3/2022 2:27 AM

Overview

An alert is re-triggering on an interface down even though the interface has been down for a while and did not go up.

Product section

Network Performance Monitor

Cause

When an alert is triggered, our software has a time limit which triggers the alert again when the set limit was met.

Resolution

To change this value you could update the following application setting value within the AlertingEngine.exe.config file:

Go to install directory (by default) C:\Program Files (x86)\SolarWinds\Orion.
<add key="AutoClearAlertIntervalInMinutes" value="14400" /> Max allowed value of this setting in minutes is 144000 - which is about 100 days.
Restart Alerting Engine service.

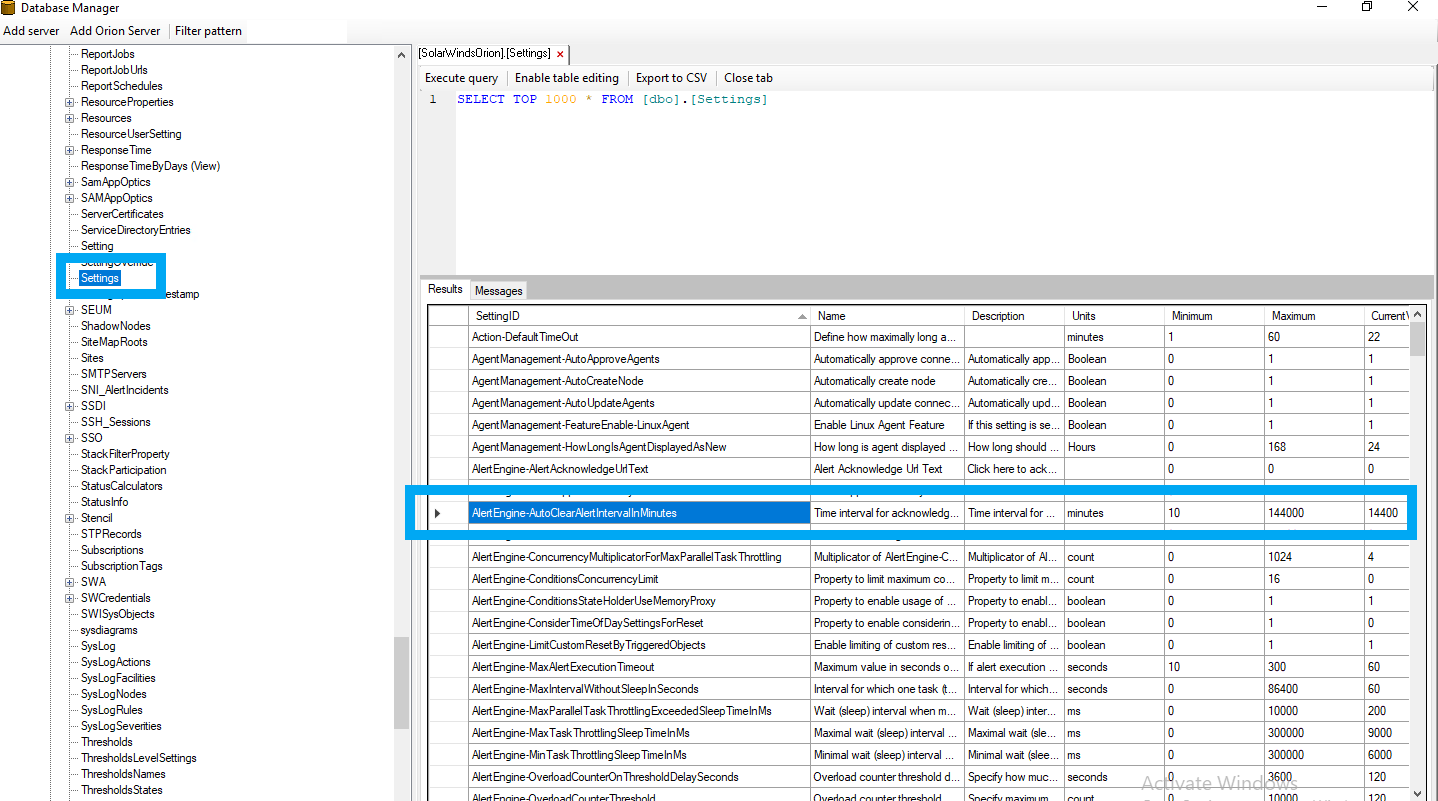

In newer versions of NPM this setting has been moved to the database in the settings table: -AlertEngine-AutoClearAlertIntervalInMinutes
