Interface Capacity Utilization report

This article describes how to view and produce the Interface Capacity Utilization report.

First published date

10/23/2018 4:23 PM

Last published date

12/21/2022 3:00 PM

Overview

This article describes how to view and produce the Interface Capacity Utilization report.

Product section

Network Performance Monitor

Resolution

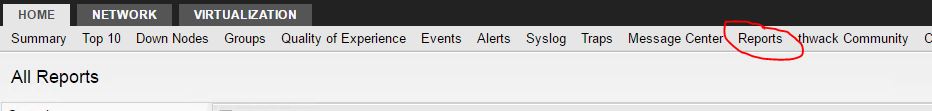

  1. Open Orion Web Console and click Report on the Home tab.
  2. Click Manage Reports.

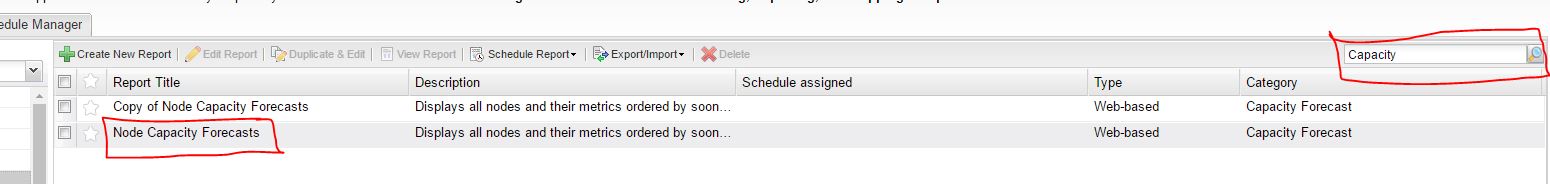

  3. Search for Node Capacity Forecast.

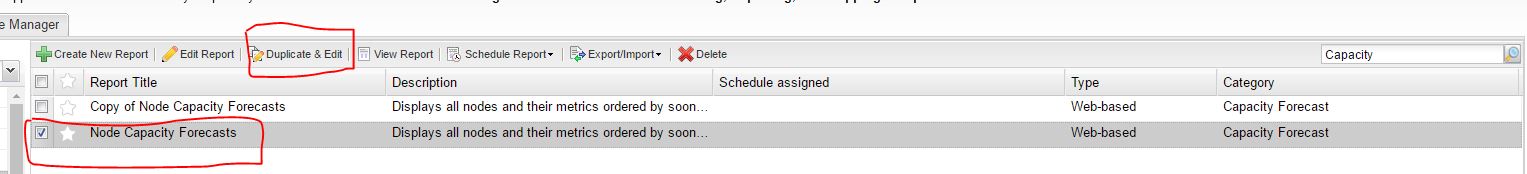

  4. Select the Node Capacity Forecast check box and then click Duplicate and Edit.

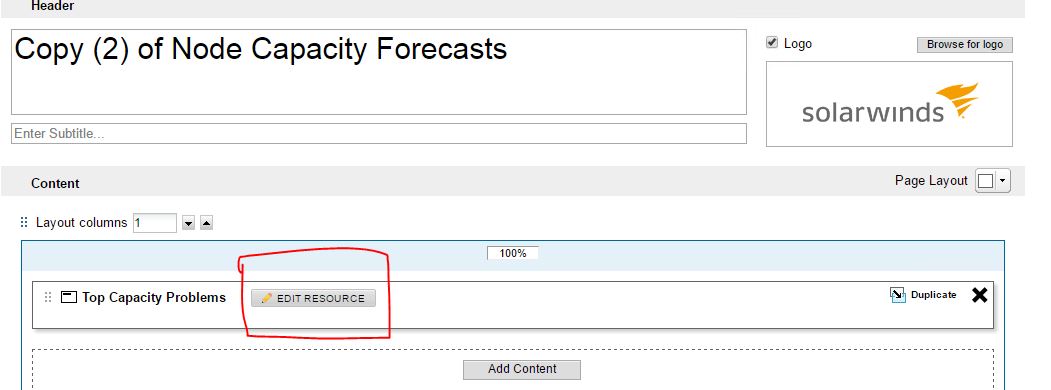

  5. Click Edit Resources.

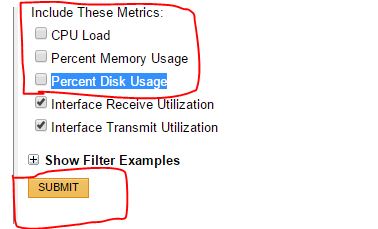

  6. Deselect the check box for the following then click Submit.

    CPU Load

    Percent Memory Usage

    Percent Disk Usage

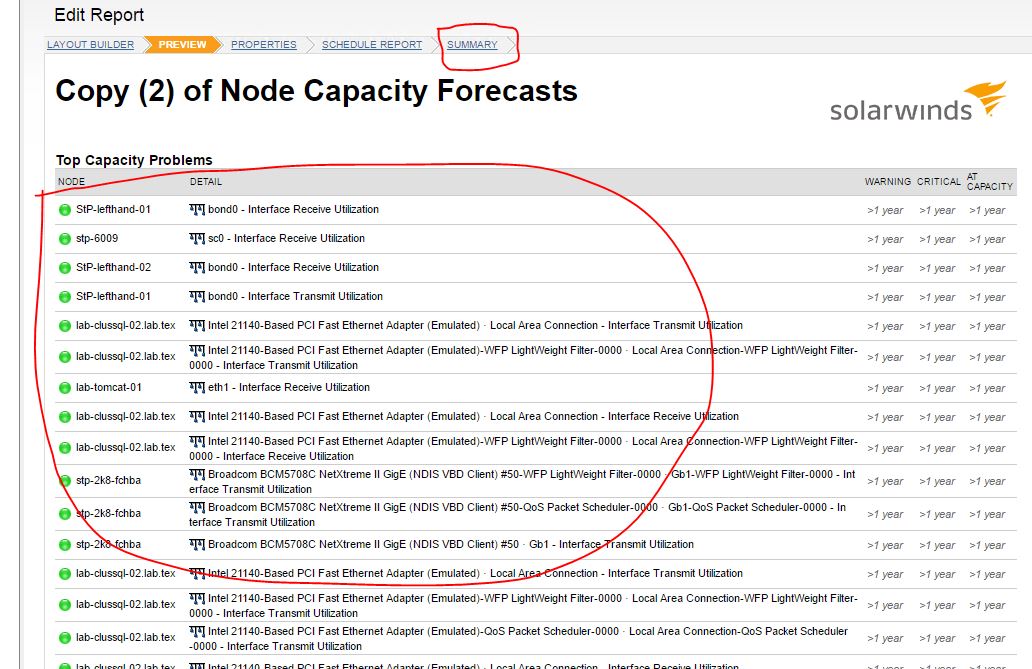

  7. Click Preview and double check if only interfaces are showing. Click Save under the Summary tab.
