Incorrect Memory and CPU utilization for F5 Big-IP in NPM

This article provides brief information and a resolution to the issue when you have incorrect Memory Radial Gauge reported CPU and Memory utilization for the F5 Big IP 100%.

First published date

10/17/2018 5:55 PM

Last published date

1/4/2022 2:14 AM

Overview

This article provides brief information and a resolution to the issue when you have incorrect Memory Radial Gauge reported CPU and Memory utilization for the F5 Big IP 100%. This will be available after the upgrade to NPM 12.0 and has been removed when installing NPM 12.0 from a fresh install. The issue is with the poller and CPU and Memory should be used to poll data correctly.

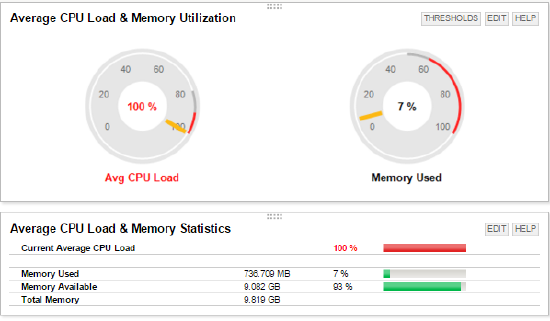

Results with F5 Poller (Incorrect CPU):

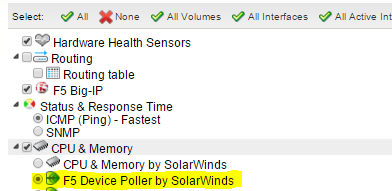

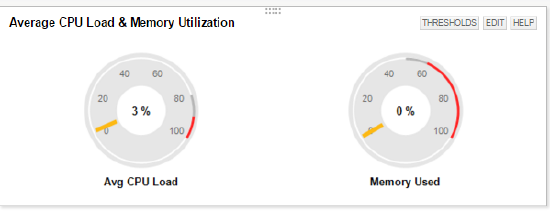

Used Poller F5 Device Poller by SolarWinds:

Product section

Network Performance Monitor

Cause

The issue is caused when the F5 Poller bundled was providing incorrect information.

Resolution

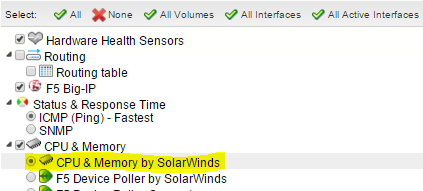

Go to Node Details page > List Resources, and then select CPU & Memory Poller by SolarWinds.
