How to set up Wake On LAN feature of DRS

This article shows DRS users where to configure Wake-on-LAN on the DRS console

First published date

4/15/2020 2:36 PM

Last published date

7/13/2020 4:09 PM

Overview

The Mini Remote Control does not have the Wake-on-LAN function, but that can be set up on the Dameware Remote Support console. Wake-on-LAN is one of Dameware Remote Support's features.

Product section

Dameware Remote Support & Mini Remote Control

Resolution

Follow the steps below to set up Wake-on-LAN on your DRS console.

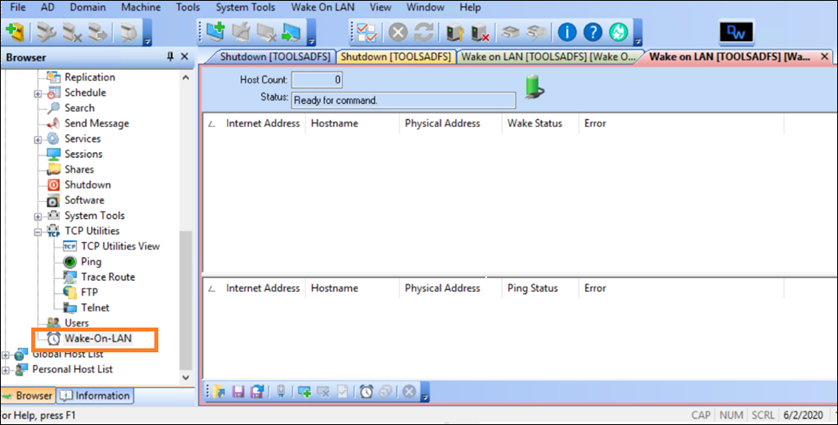

  1. Expand any computer on the DRS computer list and click Wake-on-LAN.

  2. Click the Add Host icon  at the bottom of the Wake on LAN tab.

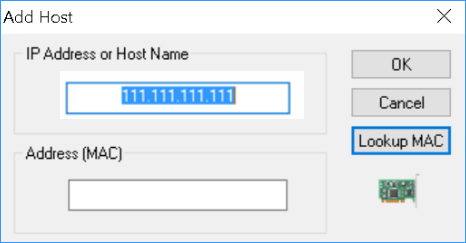

  3. On the Add Host dialog box, type the target machines IP address or host name, and then click the Lookup MAC button.

  4. When the Address (MAC) field is filled in, click OK.
  5. Right-click the listed machine and select Wake Single.

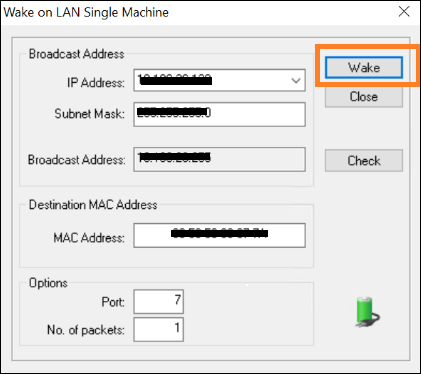

  6. On the Wake on LAN Single Machine dialog, click Wake.

  7. When you receive the message Successfully sent wakeup call, click OK.
