How to move subnets to Group or Supernet.

The article will show the steps by step how to move subnets to Group or Supernet.

First published date

6/11/2020 11:27 PM

Last published date

9/1/2021 8:21 PM

Overview

Most often we would like to group our Subnets using Groups and Supernets for it to look presentable and easy to find by location of the subnets.

Product section

IP Address Manager

Resolution

Single Subnet

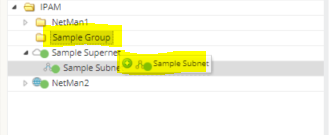

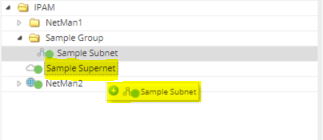

To move a subnet to a different group or supernets, simply drag and drop the subnet to the desired group or supernet. You can only drag and drop in the left column where the subnets are presented in their hierarchy in the "Manage Subnets & IP Addresses" tab.

Multiple Subnets

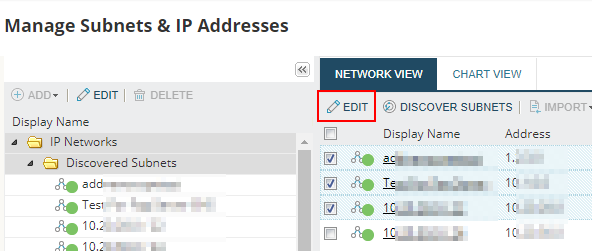

To move multiple subnets to another group, select the group or supernet, then check the boxes for the desired subnets to move and Edit:

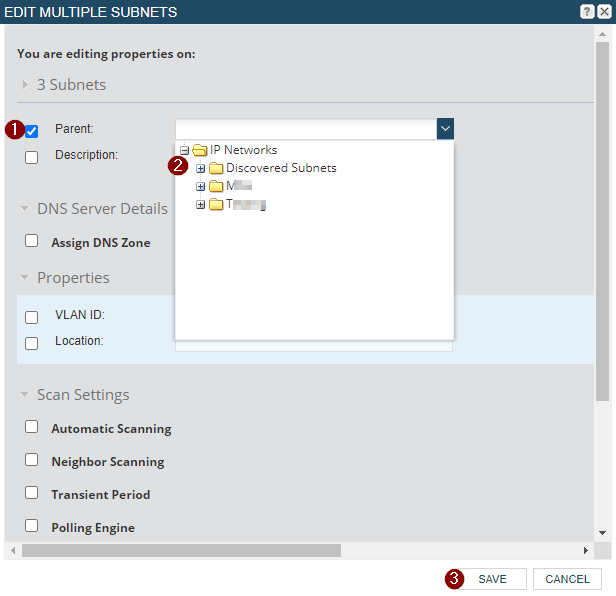

Select the Checkbox for Parent, select the Group to move to, and Save:
