How to move Groups/Supernets and Subnets to another location using IPAM new GUI

This article will show you the step-by-step process on how to move Groups/Supernets and Subnets to another location using IPAM new GUI

First published date

9/22/2025 4:24 PM

Last published date

9/22/2025 5:30 PM

Overview

Starting in IPAM 2025.2, a new GUI for IPAM was implemented,  and there is now a new option to "Move" the Groups/Supernets and Subnets to another location, rather than manually dragging them to your desired location.

Product section

IP Address Manager

Resolution

Step 1:

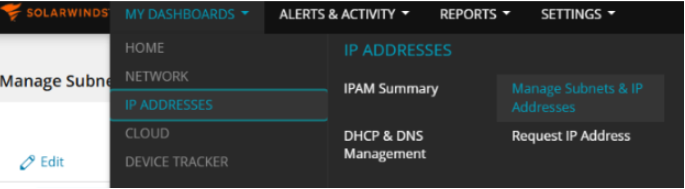

Click on MY DASHBOARDS > IP ADDRESSES, click "Manage Subnets & IP Addresses.



Step 2:

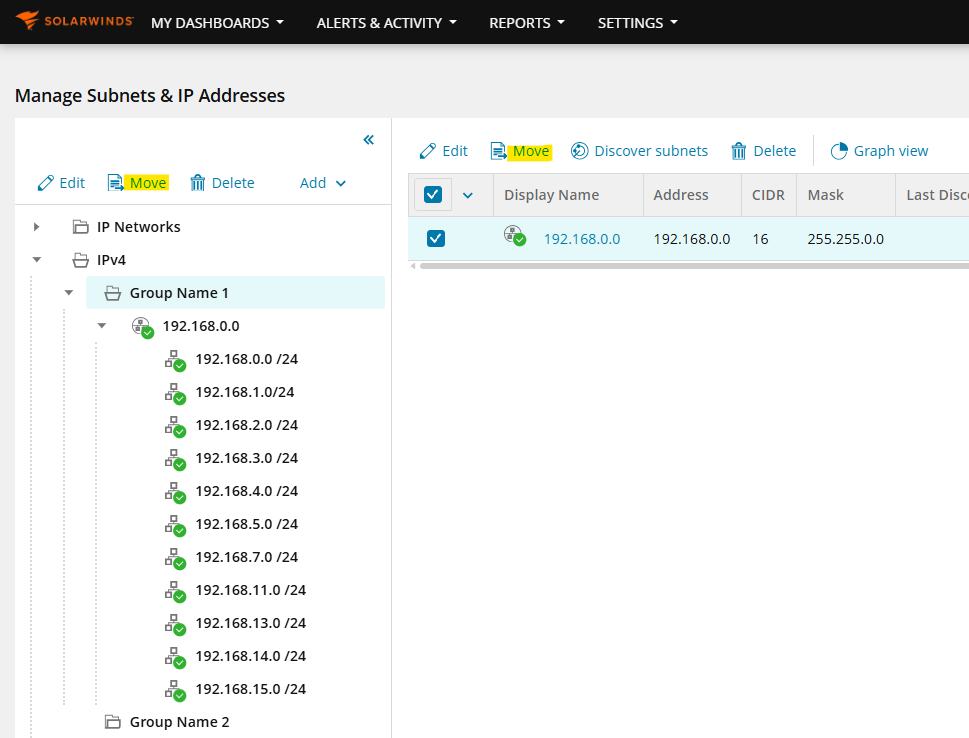

Pick a Group/Supernets or Subnet that you want to move.

-For example, you want to move the whole supernet with Subnets to another Group, "Group Name 2".

-You have 2 options: you can use both right and left panes to move it.

-Click "Move"







Step 3:

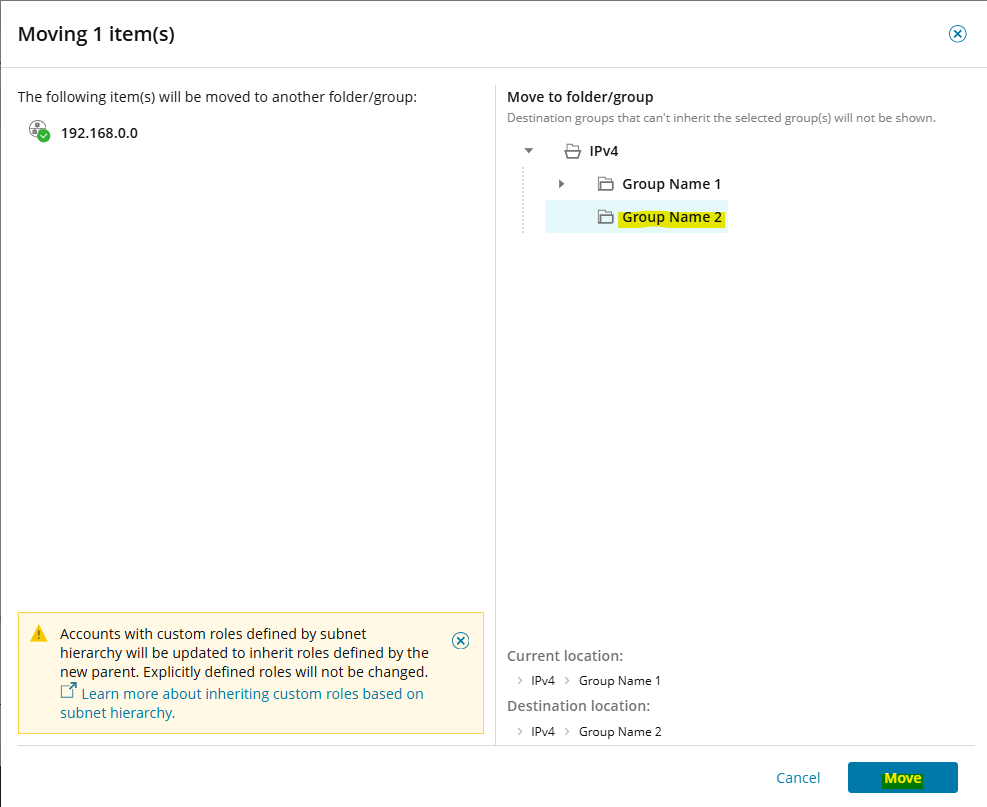

A new window will pop up where you can pick the location.

-Example: Moving it to "Group Name 2".

-Click "Move"

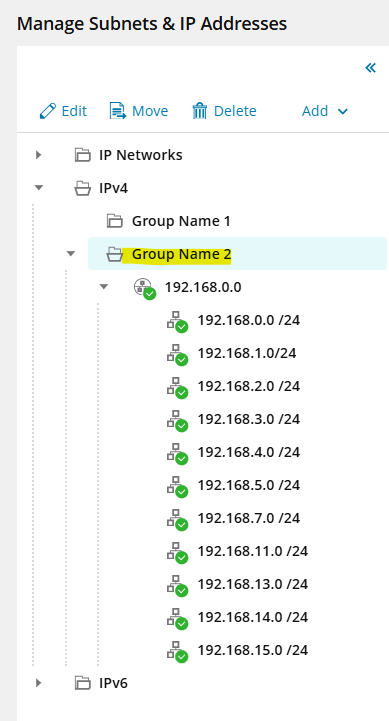

Result:

-They are now on "Group Name 2".
