How to edit a UnDP radial gauge based on your desired output

Displaying a radial gauge for the created UnDP

First published date

11/8/2018 9:30 PM

Last published date

8/24/2023 3:42 AM

Overview

This article describes how to edit a Universal Device Poller (UnDP) radial gauge based on your desired output.

Product section

Network Performance Monitor

Resolution

  1. Log in to the Orion Web Console as an administrator.
  2. Navigate to the page that will host the gauge. Example: Node Details page
  3. Click Customize page (pencil icon)
  4. Click 'Add Widget'.
    1. Under Available Widgets, search for Universal Device Poller - Radial Gauge.
    2. Select Universal Device Poller - Radial Gauge and drag it to the dashboard.
    3. Click Done Adding Widgets and then Done Editing.
  5. From the Universal Device Poller - Radial Gauge widget, and click Edit.
  6. Modify the Title, Subtitle, and Size.
  7. Select the correct Universal Device Poller (UnDP).
  8. Adjust the custom Legend to the desired output.
    For example: 0,2m, 4m, 6m, 8m, or 10m.
  9. Set Auto Scale to Off.
  10. Set Gauge Maximum Value to the desired value.
    For example: 10000000.
  11. Click Submit.

Examples

Below are example outputs of the UNDP radial gauge.

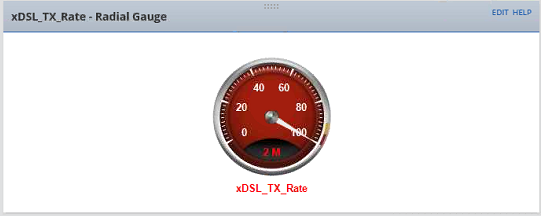

Before Customization

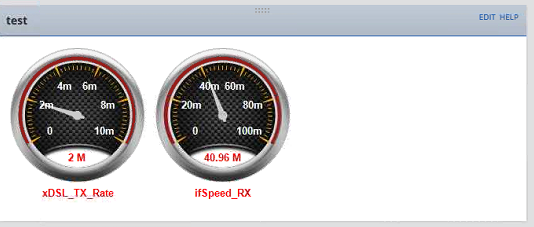

After Customization
