Network Management

How to create alert for EIGRP neighbor status change in the Orion Platform

This article shows how to create an alert for EIGRP neighbor status change.

First published date

3/3/2022 3:13 PM

Last published date

2/27/2023 9:52 PM

Overview

Follow the steps to know how to configure alerts for EIGRP in the Orion Web Console.


Product section

Network Performance Monitor

Resolution

  • Log into the Orion Web Console.
  • Navigate to Alert & Activity> Alerts> Manage alerts> Create a new alert.
  • Give a name for the alert.

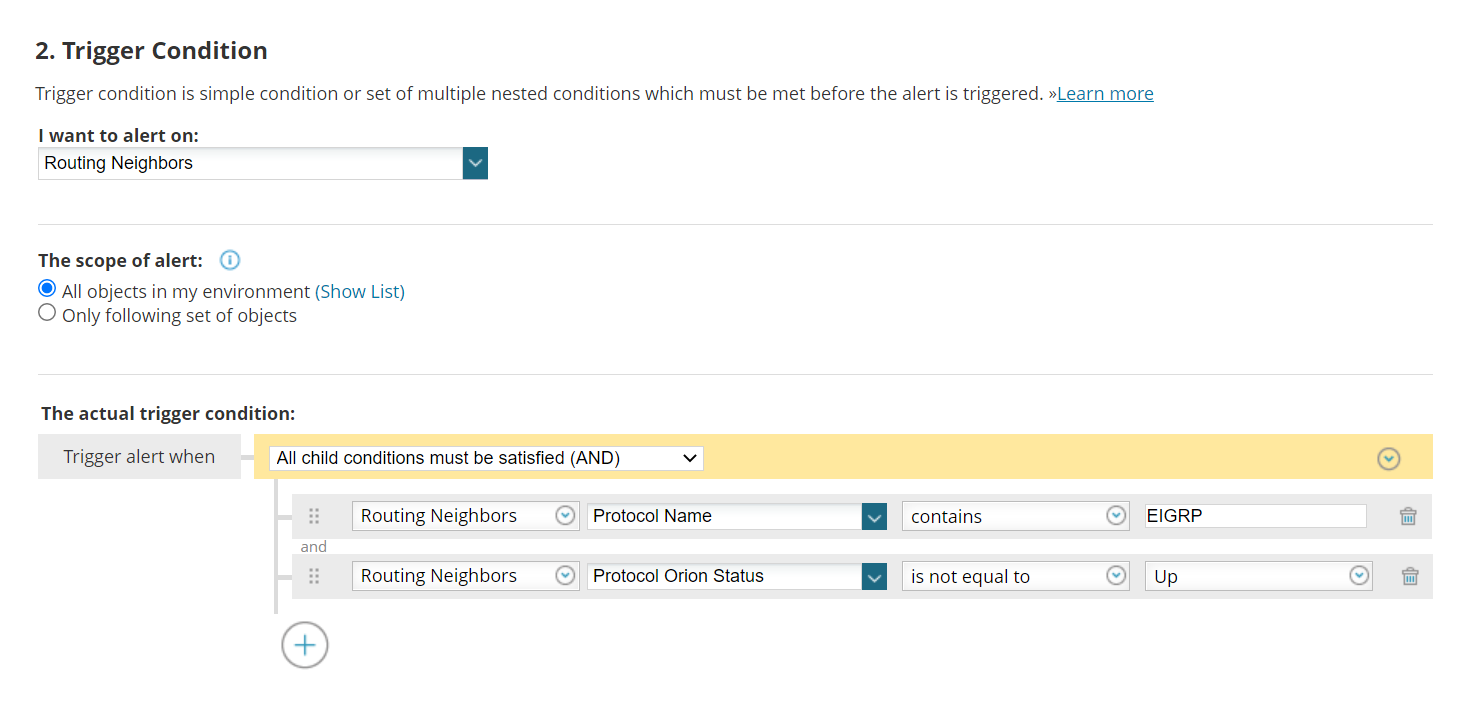

  • Enter the trigger condition as follows:


By selecting status as not equal to up, you will get an alert when the status changes from up to anything else.

  • You can leave the reset condition and time of the day as it is.
  • Under trigger action, you can choose to get an email for the alert.
  • Under reset action, you can leave as it is or choose to get an email when the status changes back to up.
  • Click next through the summary page and hit submit.

By performing the above steps, you will have an alert whenever the status changes for EIGRP.
