Create a report for Nodes with problems, specifying which problems

12/17/2019 2:35 PM

12/17/2019 2:35 PM

Create a report that lists all problems on the Nodes, which can be used for auditing or maintenance purposes.

Orion Platform

1. Click Reports > All Reports > Manage Reports > Create New Report.

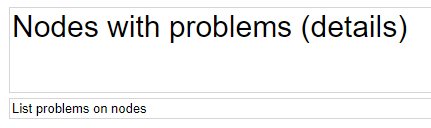

2. On the Layout Builder panel, write the title:


3. Click Add Content.
4. Search for "Nodes with Problems" ("Summary Reports" Category):


5. Click "Select and continue".

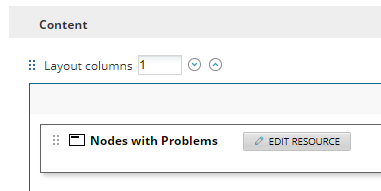

6. The Layout Builder view is displayed with the selected resource added. You can also modify the layout:


7. If you need to filter a resource to include a specific set of data, click Edit Resource.

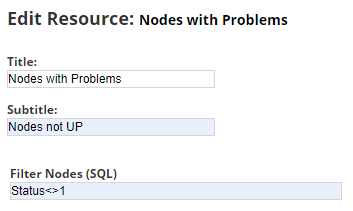

8. Each resource has different filter options. Here's an example for Nodes that are not UP:


9. After adding and filtering the resource, click Submit.
10. Back to Layout Builder panel, click Next.
11. On the Preview panel, if you're happy with the results, click Next.

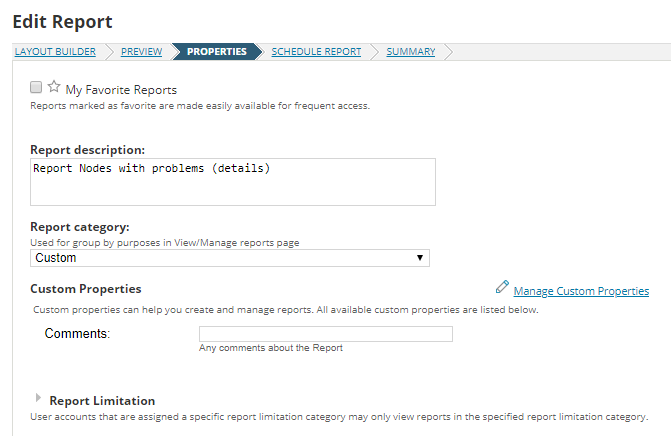

12. Add report properties, such as categories, custom properties or limitations and click Next:

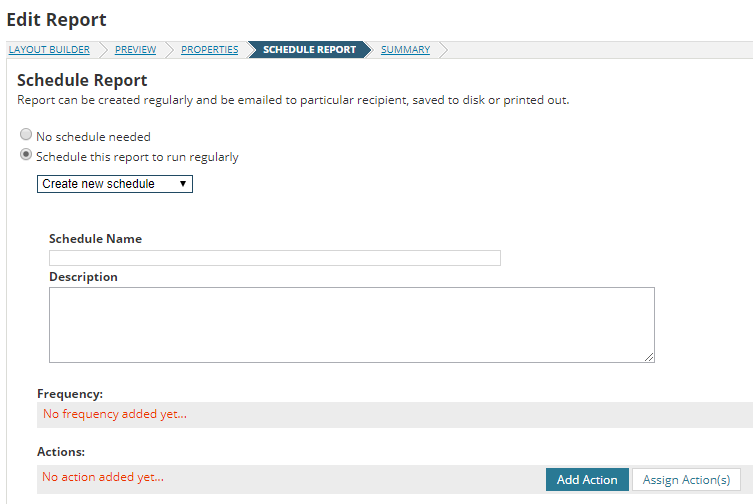

13. You can schedule a report to be generated, emailed, saved, or printed. To schedule the report, click "Schedule this report to run regularly"
14. Create a new schedule or assign a schedule and click Next:




15. Review the Summary and click Submit to save the report.
