How to backup Cisco Firepower 1010 in CatTools

This article shows how to backup Cisco Firepower 1010 in CatTools

First published date

8/19/2020 1:57 PM

Last published date

7/11/2025 4:47 PM

Overview

Cisco Firepower 1010 is an ASA device that is supported by Kiwi CatTools.
This article shows how to configure CatTools to backup the device configuration.

Product section

Kiwi CatTools

Resolution

Use the parameters below when adding the device to CatTools.

Add or edit the device and use the Device type "Cisco.Firewall.ASA"
Make sure all the required fields are entered.

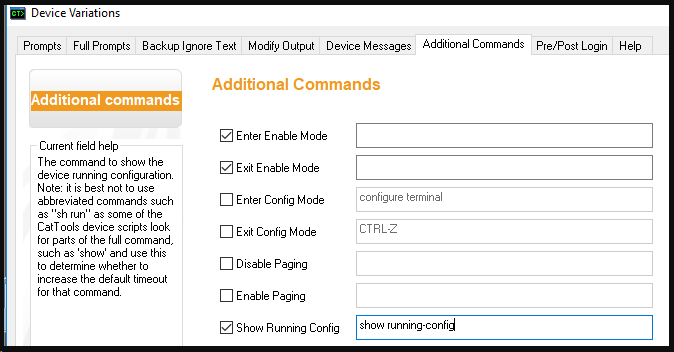

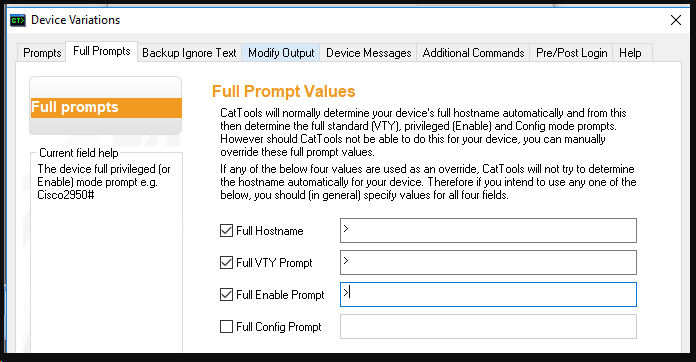

Next, click on the "Variations" tab and set it exactly as shown below
Save the changes and try the config download.

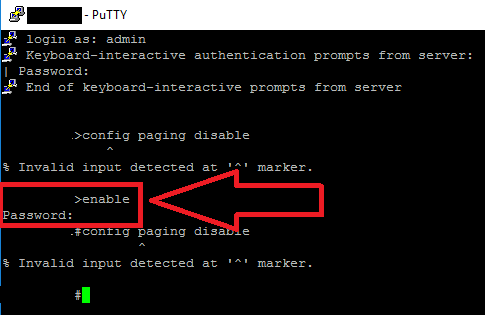

For instances in which the Device required a Password to enter Enable mode:

2024-06-07 16_41_59-01675414 _ Case _ Salesforce.png

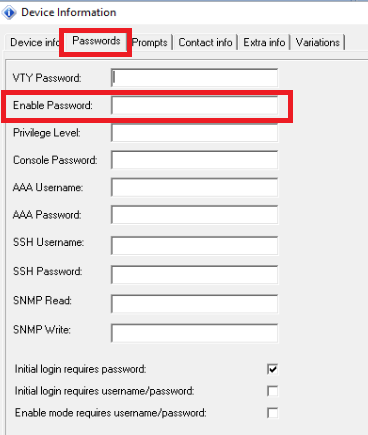

Please make sure to add the Enable Password field of the device:

2024-06-07 16_48_08-P-HREY-01 (10.160.207.204) - Remote Desktop Connection Manager v2.90 - Sysintern.png
