How Orion calculates interface Transmit/Receive bandwidth through device OIDs

This article explains how Orion calculates the interface Transmit/Receive bandwidth through device OIDs.

First published date

10/15/2018 6:00 PM

Last published date

2/9/2022 9:58 PM

Overview

This article explains how Orion calculates the interface Transmit/Receive bandwidth through device OIDs.


Product section

Network Performance Monitor

Cause

N/A

Resolution

  1. Run SolarWinds SNMPWALK for the device to get the OIDs from the node .
  2. Once you have the file, find the below table and get to know each OID table function marked.



  • The following OID table contains the Name/Description of each interface.

.1.3.6.1.2.1.2.2.1.2 =  Name of each Interfaces / Description of Interfaces. Example:

.1.3.6.1.2.1.2.2.1.2.1 = String: "lo"
.1.3.6.1.2.1.2.2.1.2.2 = String: "eth0"



  • The following OID table contains interface speed configured for each interface.

.1.3.6.1.2.1.2.2.1.5 (if Speed of Interface) Example:

.1.3.6.1.2.1.2.2.1.5.1 = Gauge32: 10000000
.1.3.6.1.2.1.2.2.1.5.2 = Gauge32: 10000000



  • Calculate them based on each 0 count and then convert. Matrix :


10000000  = 10 Mb/s

100000000= 100.0 Mbps

1000000000 = 1 Gbps



Name of InterfaceConfigured bandwidth on each interfaceOrion conversation for each interface
.1.3.6.1.2.1.2.2.1.2.1 = String: "lan0_1".1.3.6.1.2.1.2.2.1.5.1 = Gauge32: 10000000.1.3.6.1.2.1.2.2.1.2.1 = String: "lan0_1"  = 10 Mbps Interface
.1.3.6.1.2.1.2.2.1.2.2 = String: "wan0_1".1.3.6.1.2.1.2.2.1.5.2 = Gauge32: 10000000.1.3.6.1.2.1.2.2.1.2.2 = String: "wan0_1"  = 10 Mbps Interface
.1.3.6.1.2.1.2.2.1.2.3 = String: "lan0_0".1.3.6.1.2.1.2.2.1.5.3 = Gauge32: 1000000000.1.3.6.1.2.1.2.2.1.2.3 = String: "lan0_0"  = 1 Gbps Interface
.1.3.6.1.2.1.2.2.1.2.4 = String: "wan0_0".1.3.6.1.2.1.2.2.1.5.3 = Gauge32: 1000000000.1.3.6.1.2.1.2.2.1.2.4 = String: "wan0_0"  = 1 Gbps Interface
.1.3.6.1.2.1.2.2.1.2.5 = String: "prihw".1.3.6.1.2.1.2.2.1.5.5 = Gauge32: 1000000000.1.3.6.1.2.1.2.2.1.2.5 = String: "prihw"  = 1 Gbps Interface
.1.3.6.1.2.1.2.2.1.2.6 = String: "aux".1.3.6.1.2.1.2.2.1.5.6 = Gauge32: 10000000.1.3.6.1.2.1.2.2.1.2.6 = String: "aux"  = 10 Mbps Interface
.1.3.6.1.2.1.2.2.1.2.7 = String: "lo".1.3.6.1.2.1.2.2.1.5.7 = Gauge32: 10000000.1.3.6.1.2.1.2.2.1.2.7 = String: "lo"  = 10 Mbps Interface
.1.3.6.1.2.1.2.2.1.2.8 = String: "inpath0_0".1.3.6.1.2.1.2.2.1.5.8 = Gauge32: 10000000.1.3.6.1.2.1.2.2.1.2.8 = String: "inpath0_0"  = 10 Mbps Interface
.1.3.6.1.2.1.2.2.1.2.9 = String: "inpath0_1".1.3.6.1.2.1.2.2.1.5.9 = Gauge32: 10000000.1.3.6.1.2.1.2.2.1.2.9 = String: "inpath0_1"  = 10 Mbps Interface
.1.3.6.1.2.1.2.2.1.2.10 = String: "prilan".1.3.6.1.2.1.2.2.1.5.10 = Gauge32: 10000000.1.3.6.1.2.1.2.2.1.2.10 = String: "prilan"  = 10 Mbps Interface
.1.3.6.1.2.1.2.2.1.2.11 = String: "priwan".1.3.6.1.2.1.2.2.1.5.11 = Gauge32: 10000000.1.3.6.1.2.1.2.2.1.2.11 = String: "priwan"  = 10 Mbps Interface
.1.3.6.1.2.1.2.2.1.2.12 = String: "primary".1.3.6.1.2.1.2.2.1.5.12 = Gauge32: 10000000.1.3.6.1.2.1.2.2.1.2.12 = String: "primary"  = 10 Mbps Interface

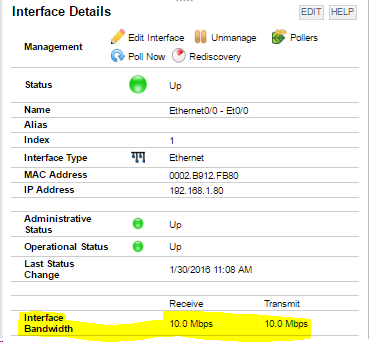

It will be shown here for each interface:
