Graph shows no data using UnDP

This article describes the problem when you get the wrong values or graph says there's no data when using Web Display or you create a Universal Device Poller graph in a view. No data available in the charts when creating a UnDP.

First published date

10/30/2018 2:24 AM

Last published date

9/7/2022 1:58 AM

Overview

A common issue with Universal device pollers can be seen when charts in the web console say there's no data  available.

There are several causes for this.This outlines the most common occurrences.

Product section

Network Performance Monitor

Cause

The Custom Poller is set to a different format at one stage and then turned back to none. During this process, the Custom poller is not able to reset to the default format of None.



Keep historical data is disabled. This will prevent data from being displayed within a chart.

Resolution

Resolution 1

  1. Recreate your custom poller.

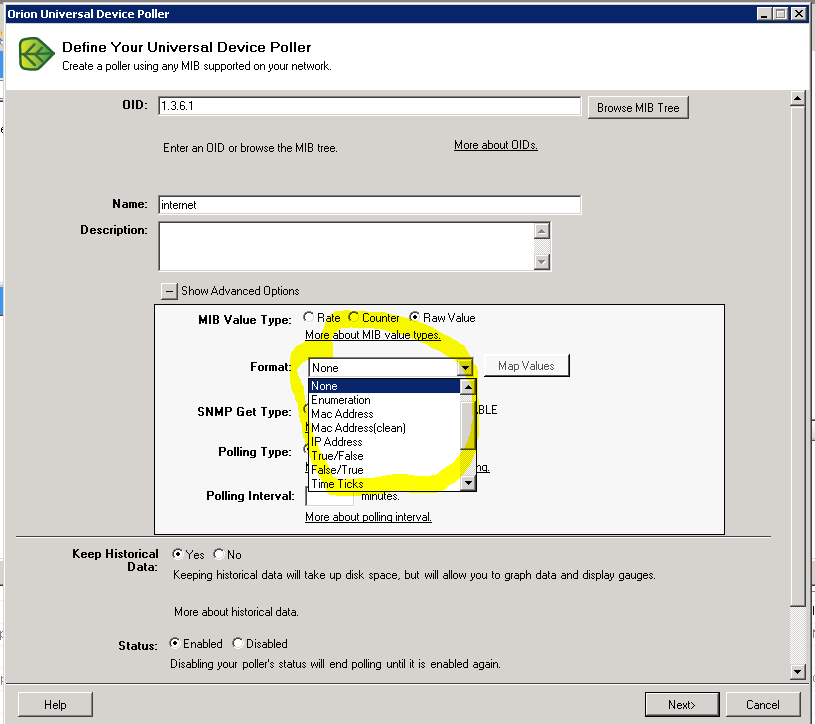

  2. Under Show advanced features keep the the format to None.
  3. Test it again

Resolution 2

  1. Open the UnDP tool
  2. Select the custom poller you have.
  3. Edit properties

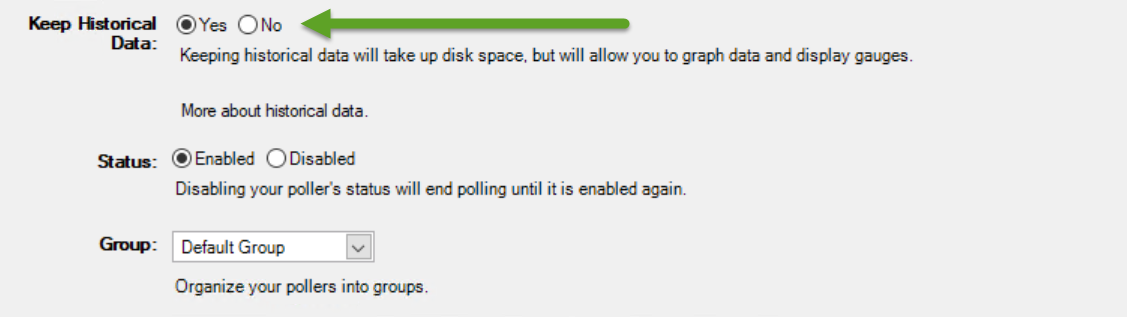

  4. Allow for historical collection
  5. Make sure the Status is Enabled
  6. Save
  7. Refresh the node details page, and check the data.

Resolution 3

  1. Open the UnDP tool
  2. Select the custom poller you have.
  3. Edit properties
  4. Set "SNMP Get Type" to another setting (E.g. "Get" to "Get Table")
  5. Make sure the Status is Enabled
  6. Save
  7. Reopen the UnDP Properties and set "SNMP Get Type" back to the previous setting (E.g. "Get Table" to "Get")
  8. Refresh the node details page, and check the data.

Resolution 4

  1. You may also need to test and play around with the UnDP Settings (SNMP Get Type, Format, etc.) depending on the UnDP.


Contact SolarWinds Support for further assistance if the above settings are configured as instructed.
