Network Management

Generate an interface downtime report

This article provides steps on how to generate an interface downtime report for over 24 hours.

First published date

10/29/2018 6:19 PM

Last published date

5/20/2019 9:09 PM

Overview

This article provides steps on how to generate an interface downtime report for over 24 hours.

Product section

Network Performance Monitor

Resolution

  1. Log in to your Orion

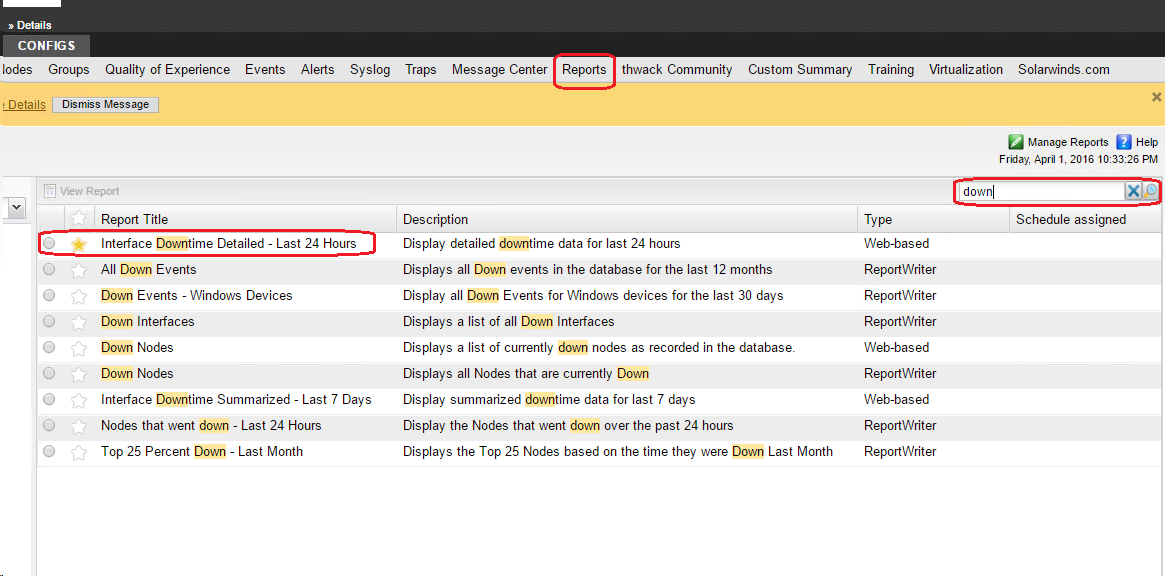

  2. Go to Reports and choose Interface downtime detailed - Last 24 Hours.

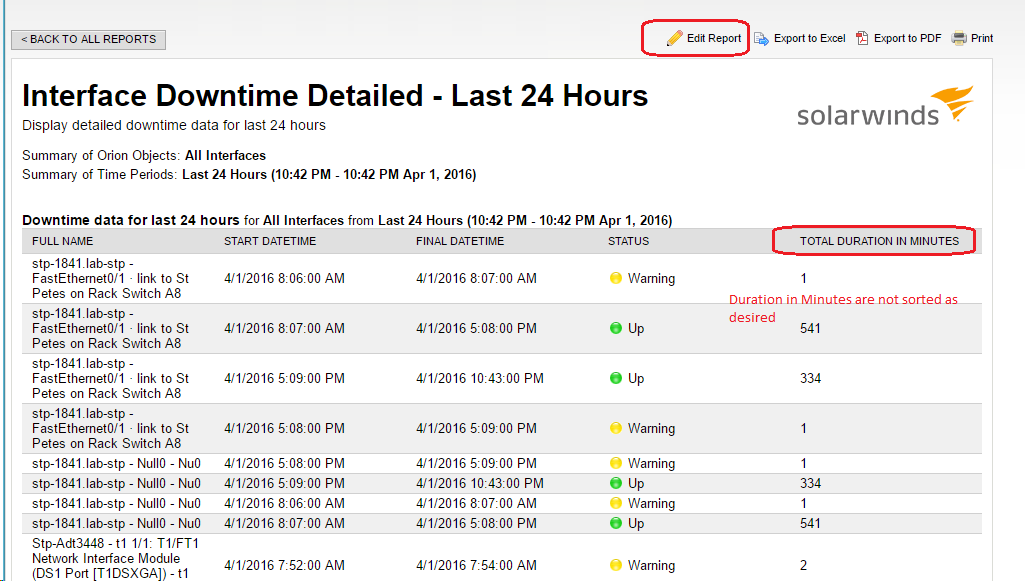

This should display the unedited report which needs to be edited

  1. Click Edit Report.

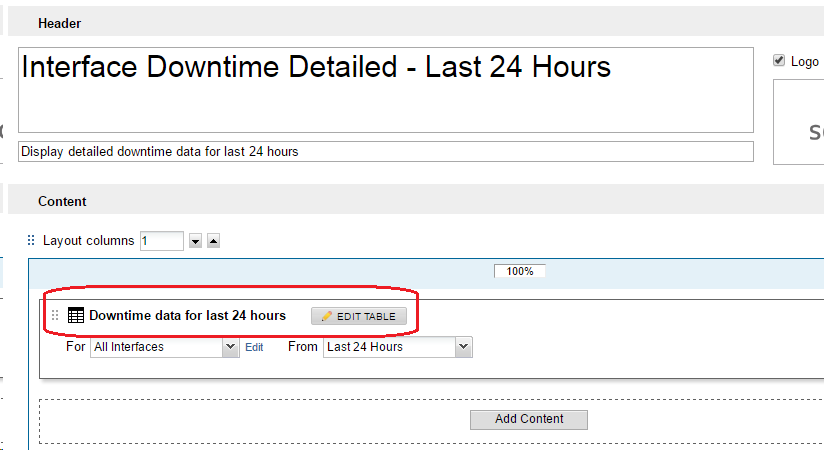

  1. Click Edit Table.

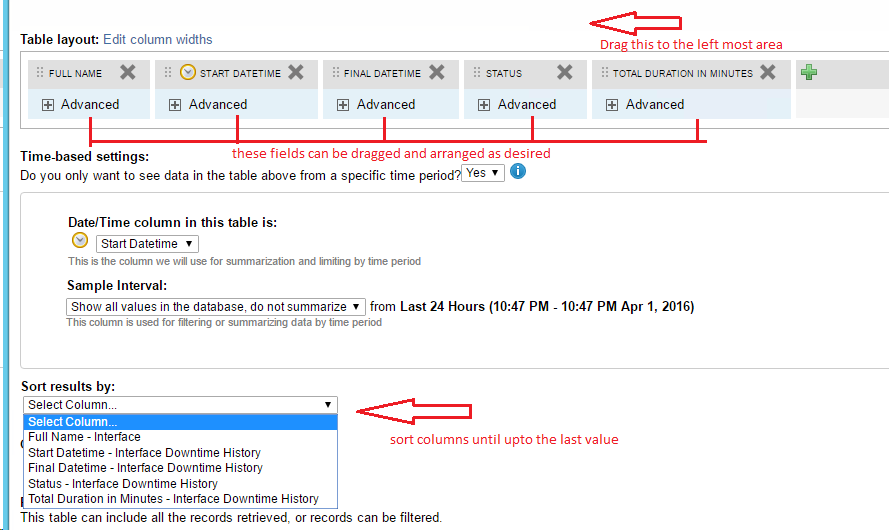

  1.  Sort out the fields below as desired.

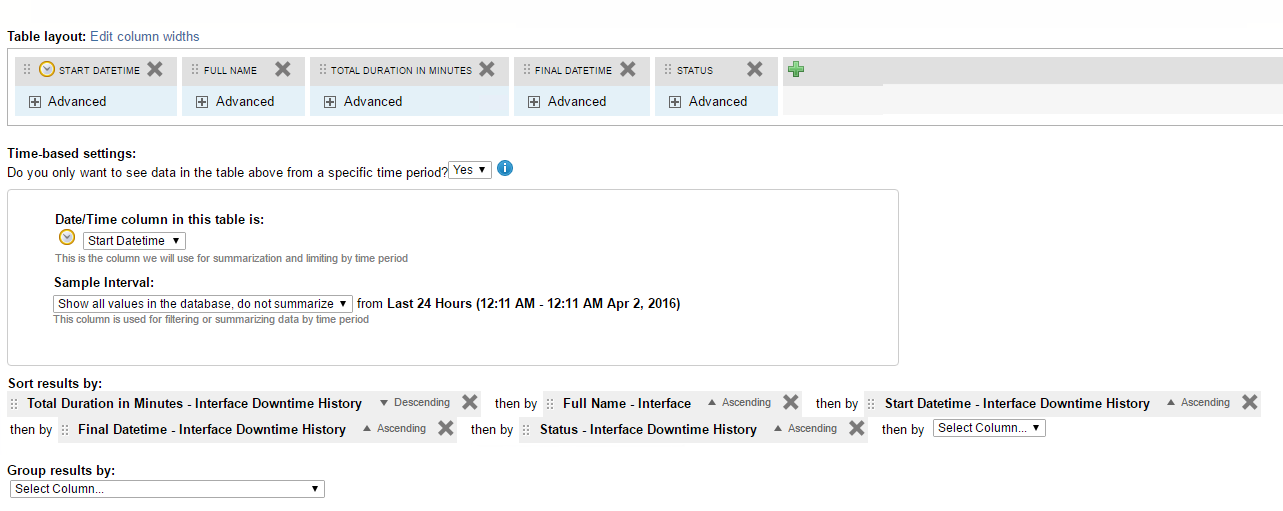

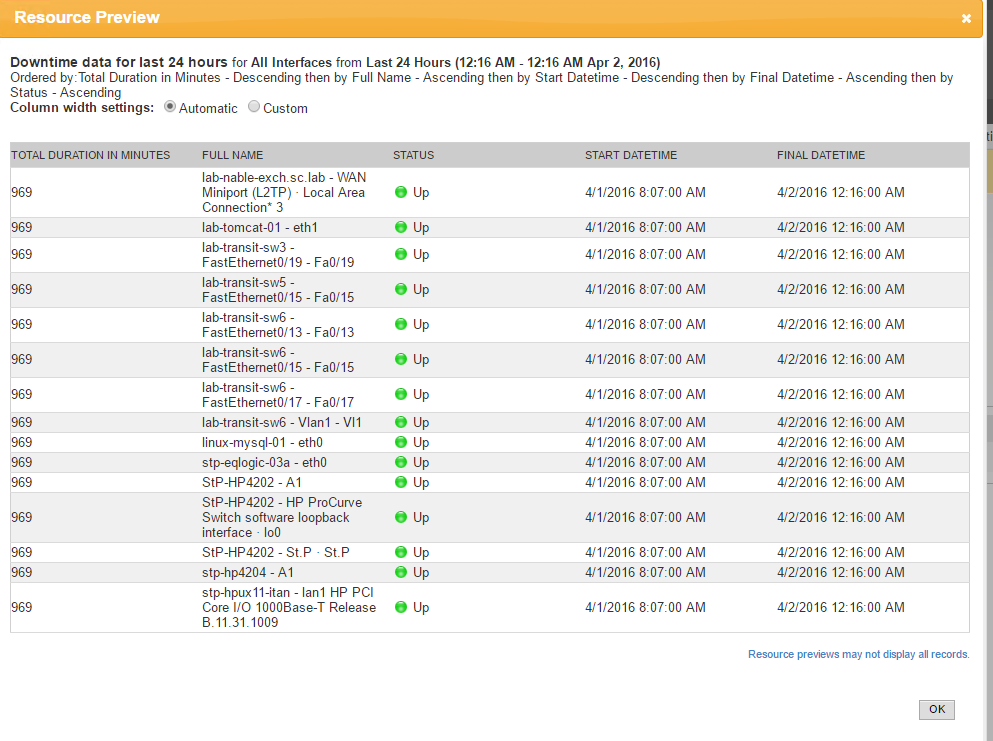

The image below displays the desired report that shows the downtime for each interface:

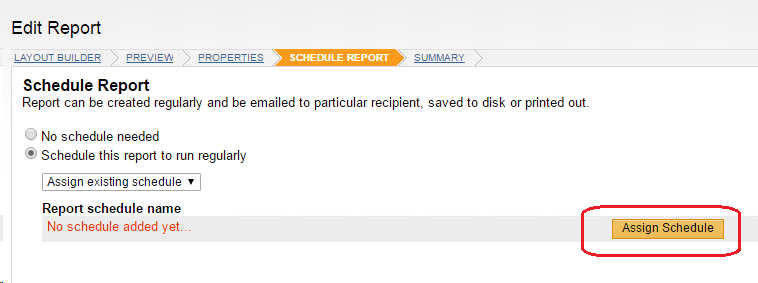

  Once the report has been created, you then have the option to send a scheduled report.
