Fix routing table resources with incomplete data in NPM

Polling routing tables results in SNMP time out or failed queries for other types of network objects such as nodes and interfaces and display the following error: This device's routing table has more entries than can be displayed in the table below. The data below is incomplete.

First published date

10/29/2018 2:11 AM

Last published date

1/6/2026 4:36 PM

Overview

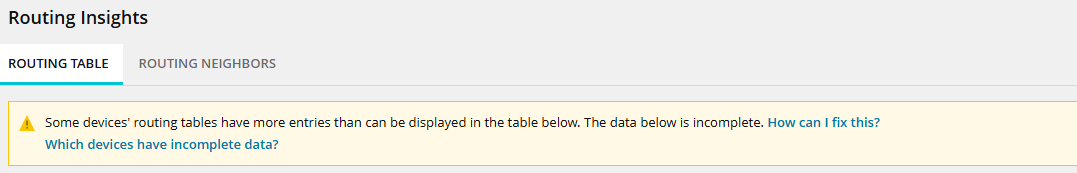

Polling routing tables results in SNMP time out or failed queries for other types of network objects such as nodes and interfaces and display the following error:

This device's routing table has more entries than can be displayed in the table below.

The data below is incomplete.

Product section

Network Performance Monitor

Resolution

Warning: Raising polling limits excessively may result in SNMP timeouts and failed queries for other network object types, including nodes and interfaces.

In centralized settings, modify the following settings.

If you want to edit the VRF routing table limit, modify setting MaxVrfRoutingTableRows.
If you want to edit the non-VRF routing table limit, modify setting MaxRoutingTableRows.

After settings are changed, wait for next routing table or VRF poll.
