Display unmanaged nodes in the Orion web console summary page

This article discusses displaying unmanaged nodes on a view.

First published date

10/26/2018 10:44 PM

Last published date

1/21/2022 12:29 AM

Overview

There is no resource called Unmanaged Nodes that can be placed on the Orion summary view.

Unlike nodes that are down which has a resource called Down Nodes.

Instead you can use the resource All Nodes - Table then use a filter to only display nodes that are in unmanaged state.

Product section

Orion Platform

Cause

  • No default resource

Resolution

  1. From the Orion Summary Page, click on Customize Page.

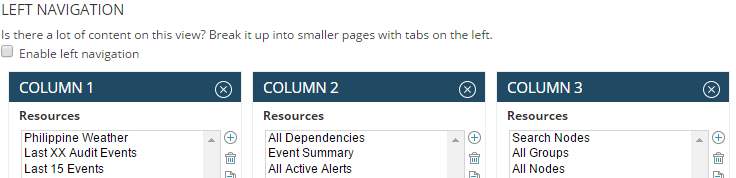

  2. Click + to add a resource.

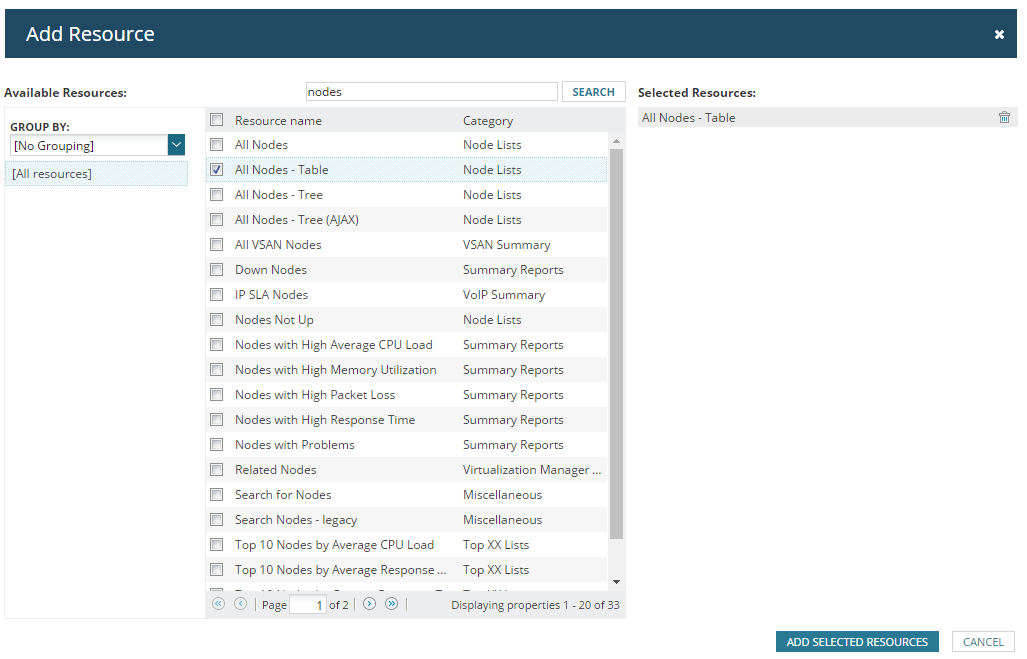

  3. Do a search using "nodes" as a keyword.

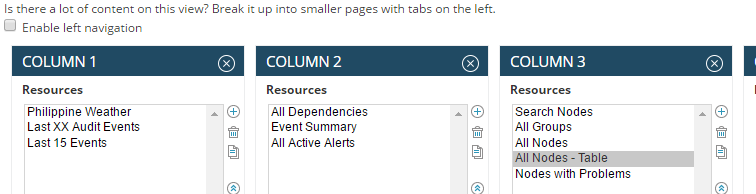

  4. Add the All Nodes – Table resource.
  5. From the All Nodes - Table Resource, click Edit.

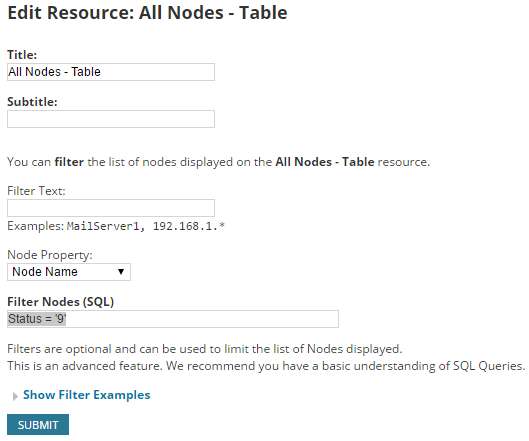

  6. Enter Status = '9' under Filter nodes (SQL) and then click Submit.

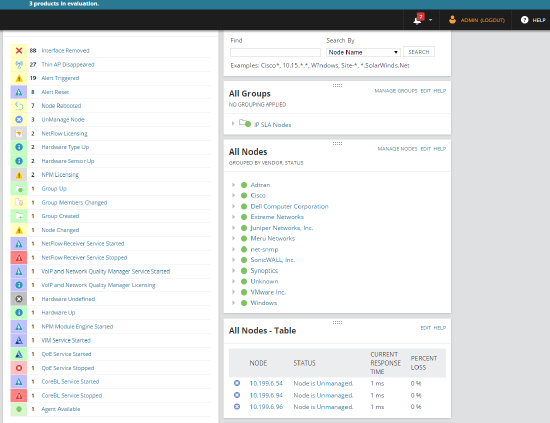

  7. See the example below of a an All Nodes - Table resource which only shows the unmanaged nodes. You can edit the resource and rename to something appropriate.

If you need additional support, please open a ticket with Support.
