Applications Systems

Disk IOPS Reports label IOPS as 'CMD/s'

This article discusses an issues some VMAN Users may run into when configuring IOPS Utilization reports on the Orion Web Based reporting Tool where IOPS are instead displayed as cmd/s

First published date

11/9/2018 10:36 PM

Last published date

11/9/2018 10:36 PM

Overview

This article discusses an issue some VMAN Users may encounter when configuring IOPS Utilization Reports on the Orion Web-Based Reporting Tool, where IOPS are instead displayed as 'cmd/s'.





Product section

Virtualization Manager

Cause

Misconfiguration of the report

Resolution

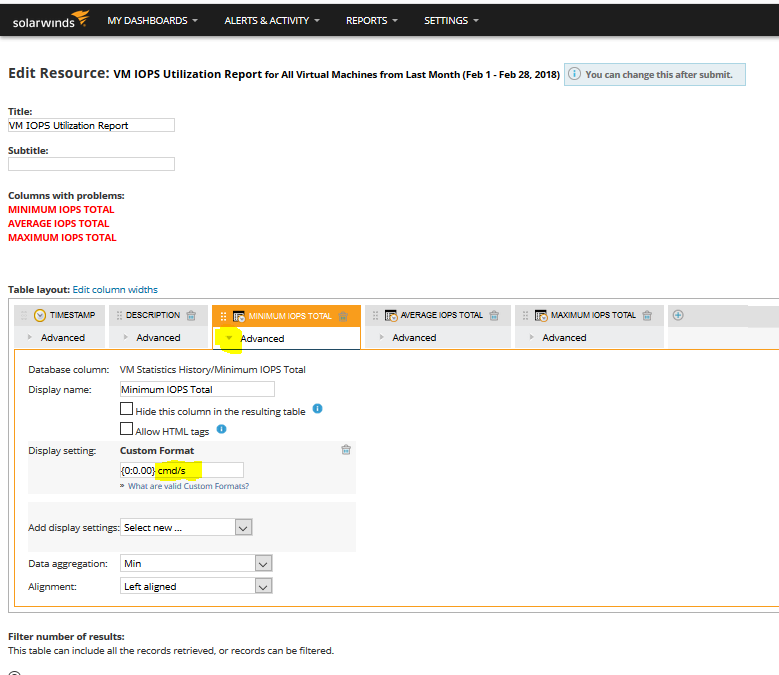

  1. Navigate to Reports > All Reports > Manage Reports.
  2. Select the report in question and click Edit.
  3. Click Edit Table.
  4. Click Advanced under relevant column ('Minimum IOPS Total', for example.)
  5. In Display setting, remove the "cmd/s" replace with "IOPS".
