Device View page is not showing the Stencils of the supported devices

Device View Sub-view is not showing the Stencils of the device. They are all blank even if the selected node supports Stencils under this documentation: https://documentation.solarwinds.com/en/success_center/npm/content/npm-device-view-interface-on-stencil.htm

First published date

5/7/2025 6:32 PM

Last published date

10/21/2025 7:47 PM

Overview

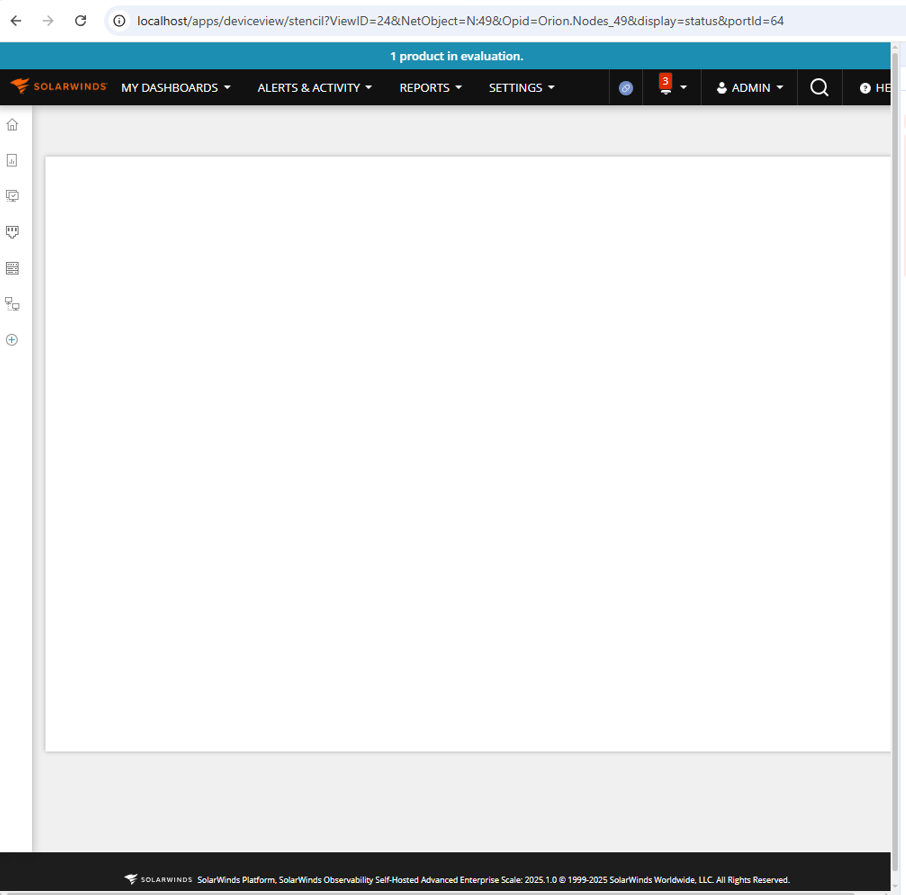

When navigating to Device View Subview, the Stencils of the supported Network Switch are not displayed. No website error seen.

Product section

Network Performance Monitor

Cause

This is a known issue in SolarWinds Platform 2024.2.

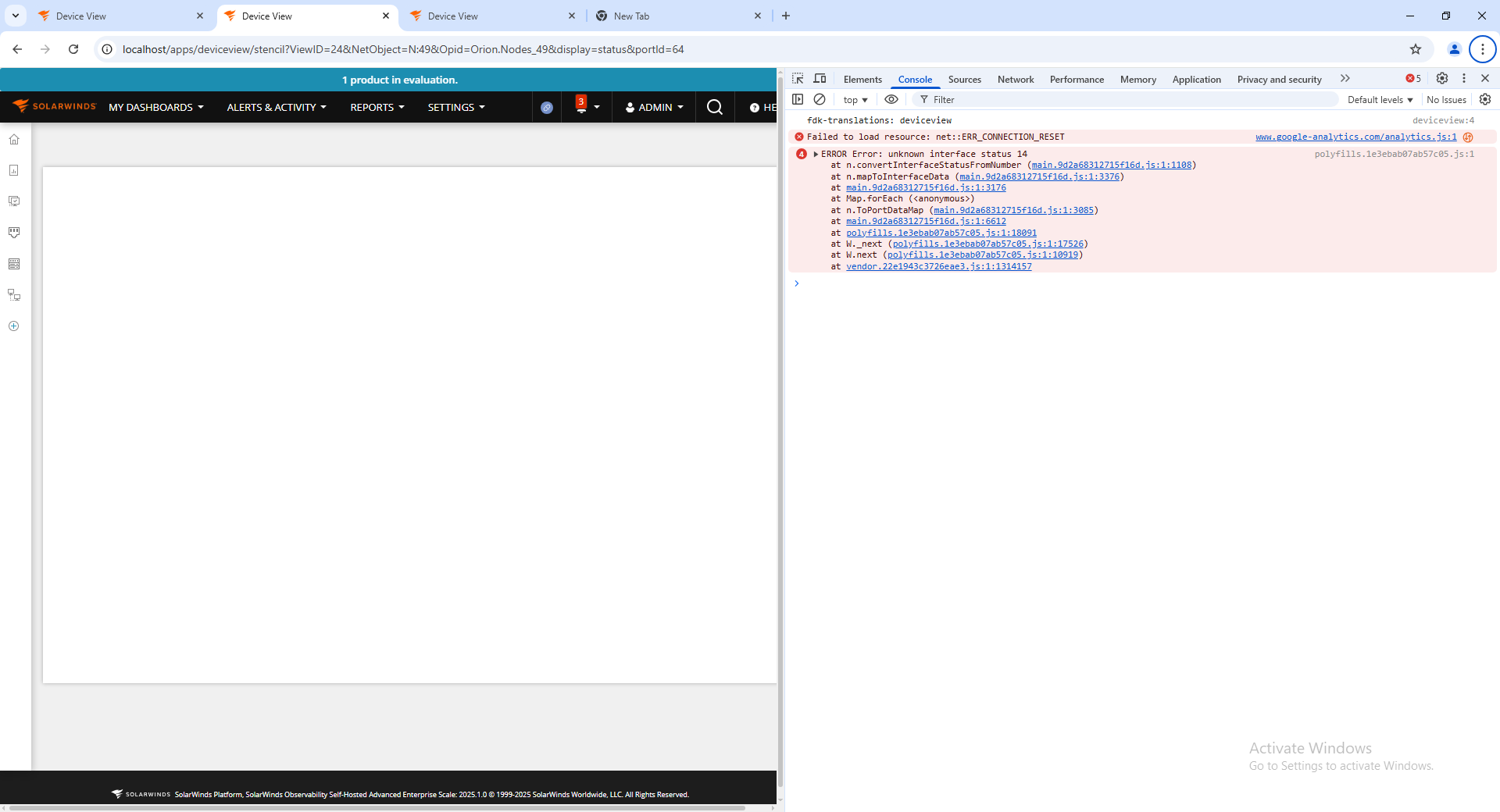

The issue is caused by Interface Status Number 14 is causing the Stencils not to show up based on the Development tools screenshot:

Unfortunately, device view tab does not work correctly in case one of interfaces has status 14 - Critical. (mentioned 15, 20, 49 nodes have at least 1 interface with Critical status)

Resolution

A fix for this issue is included in SolarWinds Platform 2025.4. Consider upgrading your environment.
