Network Management

Determine the NTA flows per second

This article describes how to determine the NTA flows per second that are received by the NTA collector.

First published date

11/29/2018 10:47 PM

Last published date

9/20/2022 2:03 PM

Overview

Verification of the NTA flows per second that is received by the NTA collector.

Product section

Netflow Traffic Analyzer

Cause

n/a

Resolution

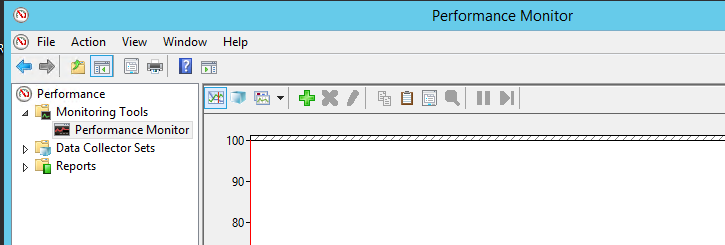

Log in to the Orion server, and then open Windows Performance Monitor (© 2019 Microsoft, available at https://docs.microsoft.com/, obtained on January 22, 2019) on the server.
Click the green + button to add a counter.

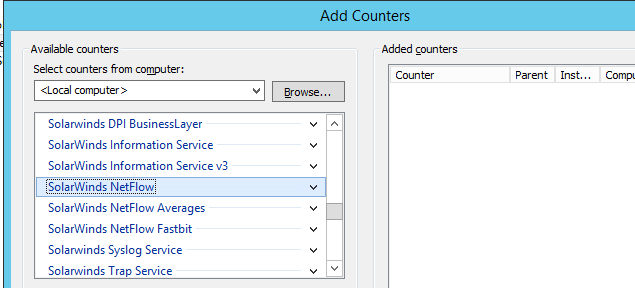

Scroll down and click SolarWinds NetFow to expand.

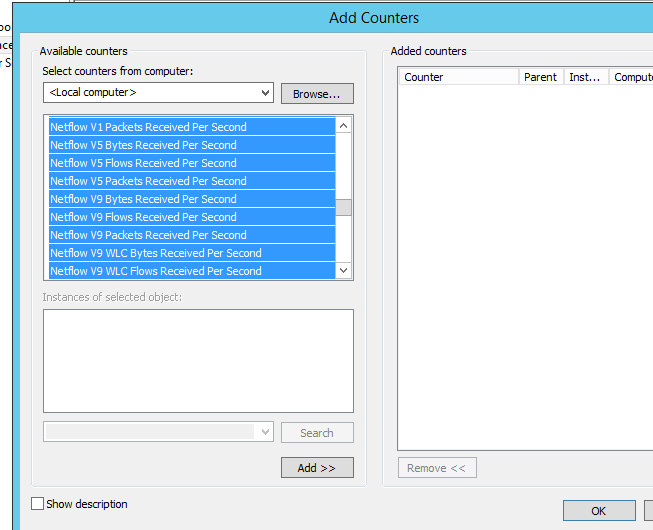

Find Netflow .. Flows received per second. Select all the flow types that apply to your environment, and then click Add to display the selected counter on the graph.

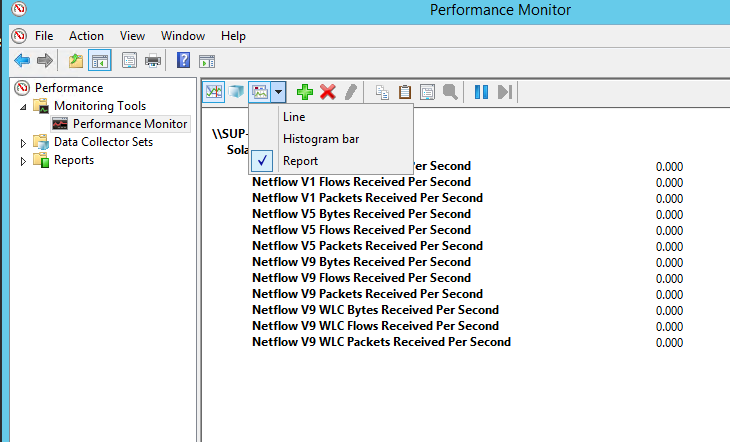

Select the graphing option, and then select Report.
