Network Management

Database restore failed The WITH MOVE clause can be used to relocate one or more files. (Microsoft.SqlServer.Smo)

You are trying to restore Orion DB backup to SQL server . When restoring a database in Microsoft SQL Server Management Studio, you receive the following dialog box similar to something below: Restore failed for Server ‘myserver’. (Microsoft SqlServer.SmoExtended) System.Data.SqlClient.SqlError: File ‘C:\Program Files\Microsoft SQL Server\MSSQL10_50.MSSQLSERVER\MSSQL\DATA\mydatabase.mdf’ is claimed by ‘mydatabase_FG1′(3) and ‘mydatabase'(1). The WITH MOVE clause can be used to relocate one

First published date

11/29/2018 10:48 PM

Last published date

1/27/2022 2:46 AM

Overview

You are trying to restore Orion DB backup to SQL server.

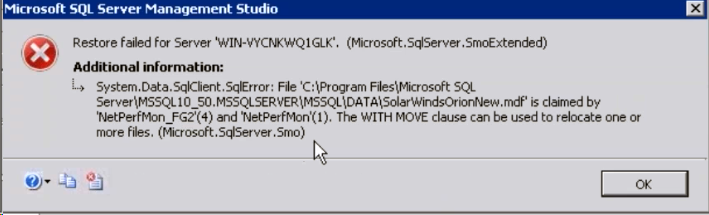

When restoring a database in Microsoft SQL Server Management Studio, you receive the following dialog box similar to the following:

Restore failed for Server ‘myserver’. (Microsoft SqlServer.SmoExtended)

System.Data.SqlClient.SqlError: File ‘C:\Program Files\Microsoft SQL Server\MSSQL10_50.MSSQLSERVER\MSSQL\DATA\mydatabase.mdf’ is claimed by ‘mydatabase_FG1′(3) and ‘mydatabase'(1). The WITH MOVE clause can be used to relocate one or more files. (Microsoft.SqlServer.Smo)

Product section

Orion Platform

Resolution

Note: Restoring DB is out of SolarWinds scope of support. Please consult your DBA before making/following any changes within the DB as the provided steps are only for demo/test lab.

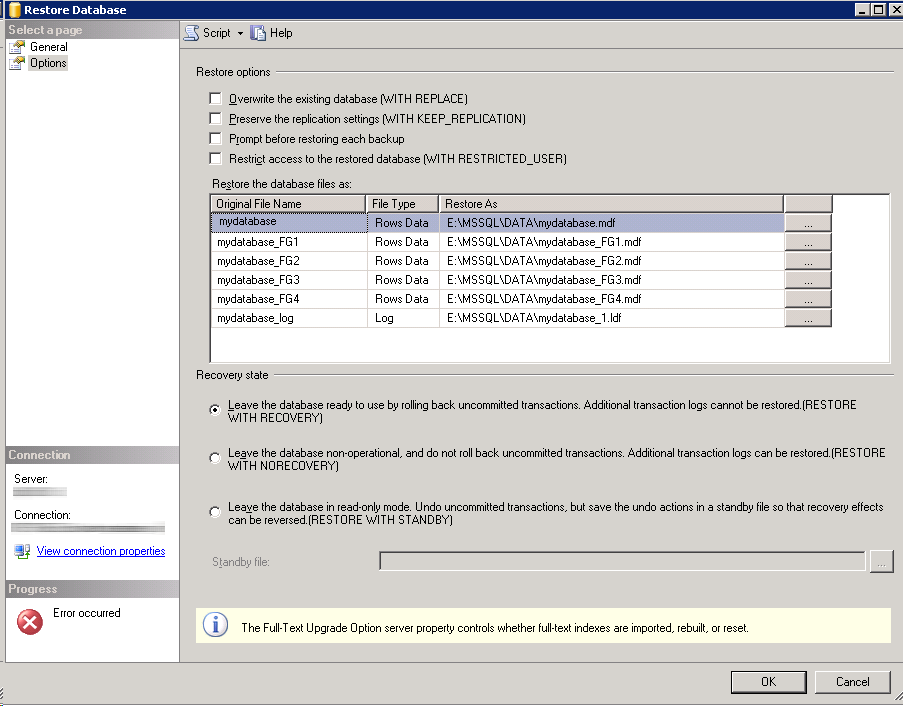

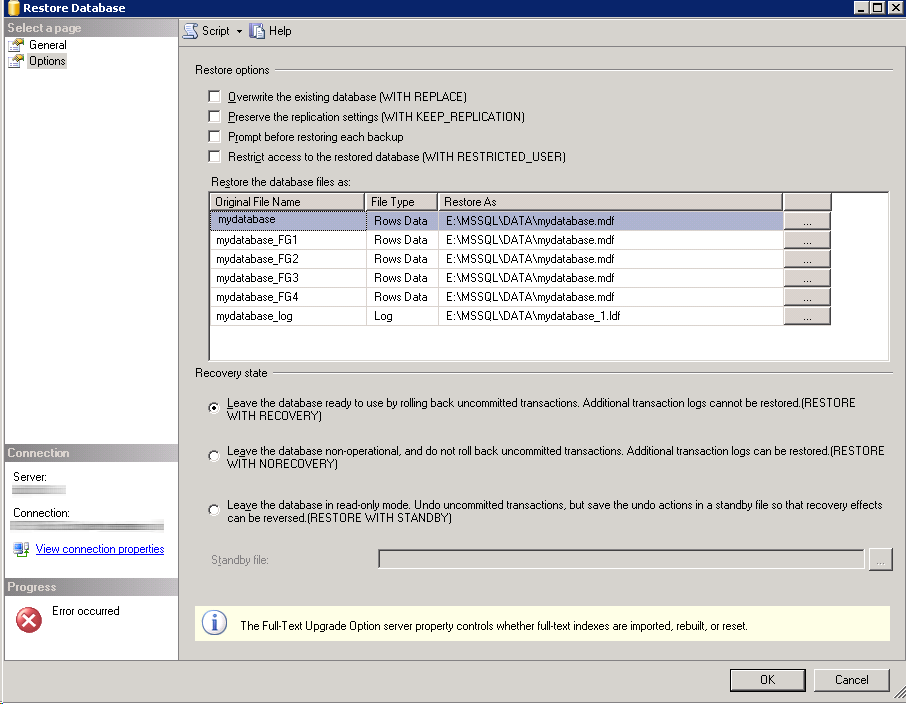

On the Restore Database – mydatabase window inside of Microsoft SQL Server Management Studio:

Click on the Options page.
Underneath Restore the database files as: label, make sure all of the “Restore As” values are unique. In this case, rename each *.mdf file to its “Original File Name” column value.

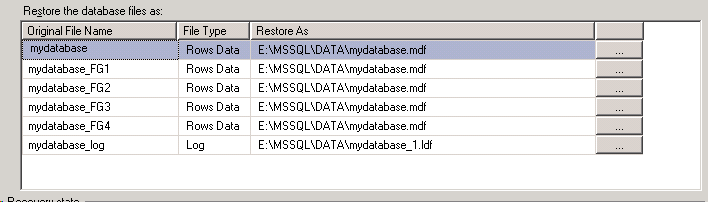

Before

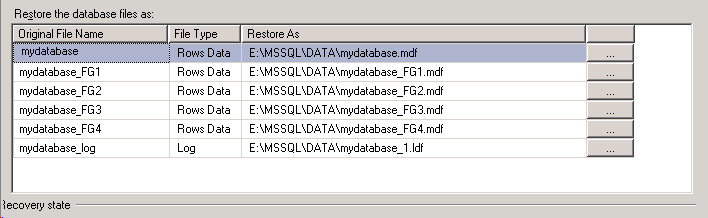

After
