Create an alert when the interface critical threshold is reached in NPM

This is article describes how to create an alert when an interface has exceeded the set threshold for percent utilization.

First published date

10/26/2018 9:33 PM

Last published date

9/29/2022 6:39 PM

Overview

When you want to create an alert for when an interface has exceeded the set threshold for percent utilization.

Product section

Network Performance Monitor

Resolution

Go to Node Management, select the node and the interface, and then click Edit Properties.
Go to Alerting Thresholds, and then click Override Orion General Thresholds.
Set the desired thresholds, and then click Submit. See Baselines and baseline calculations for NPM for more information.

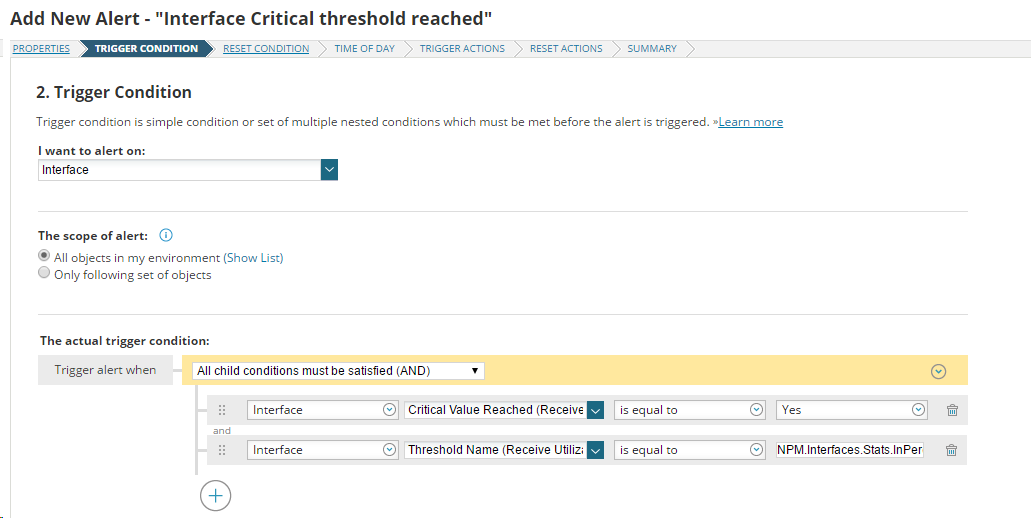

Once the threshold is set, create an interface alert by using the following trigger conditions:
- Interface > Critical Value Reached (Received Utilization) > is equal to > Yes
- Interface > Threshold Name (Received Utilization) . is equal to > NPM.Interfaces.Stats.InPercentUtilization
