Create a resource that displays multiple interfaces for one device

How to Create a Resource that displays multiple interfaces for 1 device.

First published date

10/26/2018 8:03 PM

Last published date

10/26/2018 8:03 PM

Overview

This article describes how to create a resource that displays multiple interfaces for a device.

Product section

Network Performance Monitor

Resolution

Navigate to the page that you are going to be adding the custom resource to, for example the NPM Summary page.
Click Customize Page at the top left side of the page:

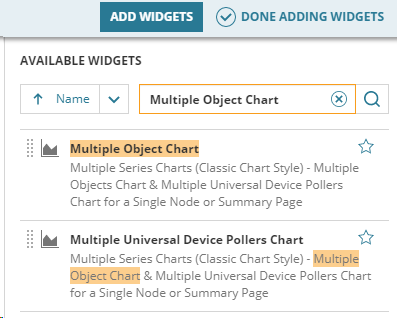

Click Add Widgets at the top right side and search for the Multiple Object Chart:

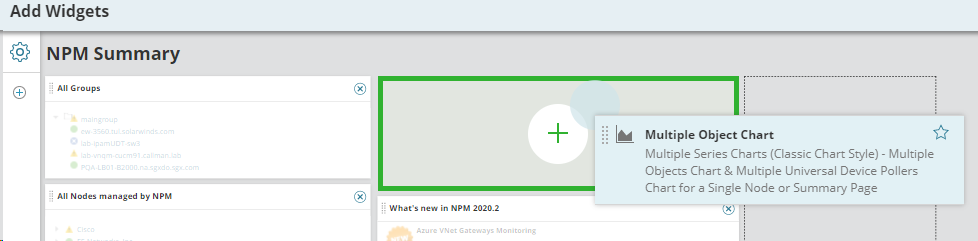

Drag and drop the widget to the desire position and click Done adding widget at the top right side:

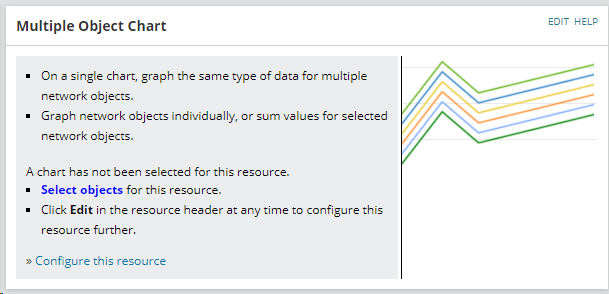

Click Configure Resource from new widget:

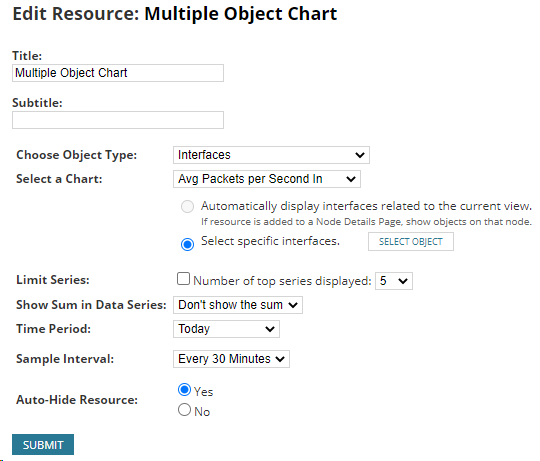

Select the Object Type, Type of Chart, Data Series, Time Period, Sample Interval according to the requirement and the option to Auto-Hide the resource, e.g:

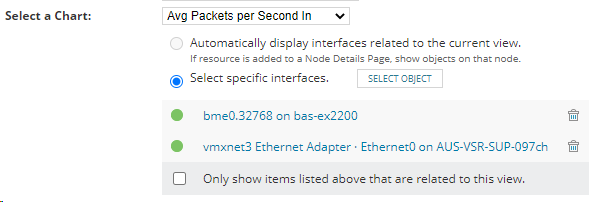

Click Select Object to select the target object if you wish to show only specific object, e.g. Interface:

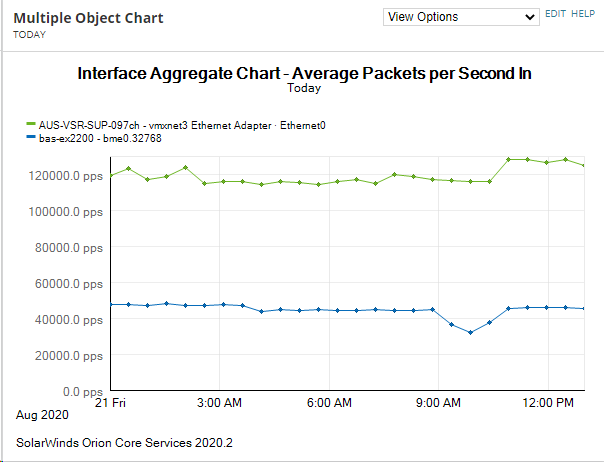

Once you have filled in the desired options, click Submit and it will graph out the data you have selected, e.g:
