Create a report for the top 5 endpoints by interface in the Solarwinds Platform

This article explains how to create a report for Top 5 Endpoints by interface.

First published date

10/13/2018 6:59 PM

Last published date

10/24/2022 11:12 AM

Overview


How to create a report for Top 5 Endpoints by interface.

Product section

Netflow Traffic Analyzer

Resolution

  1. On the Web Console, go to Manage Reports.
  2. Create a new report.

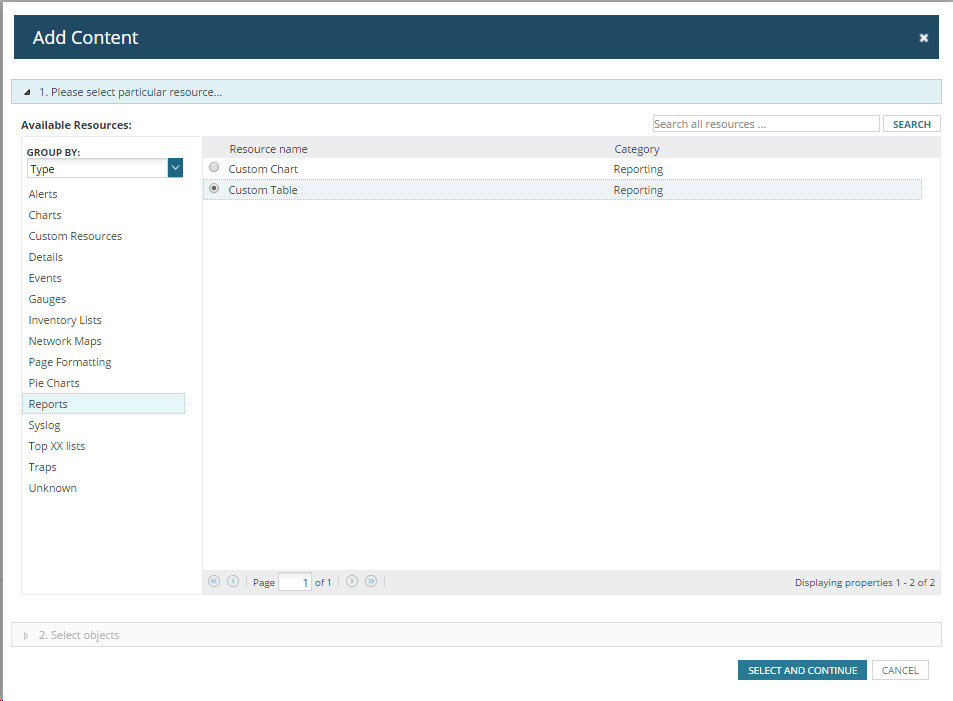

  3. Select Custom Table.

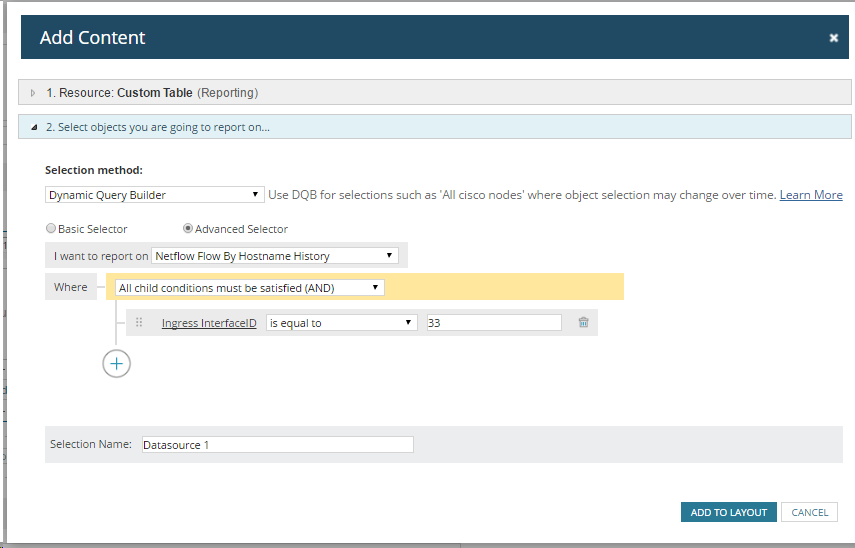

  4. Set the following:
    1. Selection Method: Dynamic Query Builder
    2. Advanced Selector
    3. I want to report on: Netflow Flow By Hostname History
    4. Where: All child conditions must be satisfied (AND)
    5. Ingress InterfaceID is equal to 33

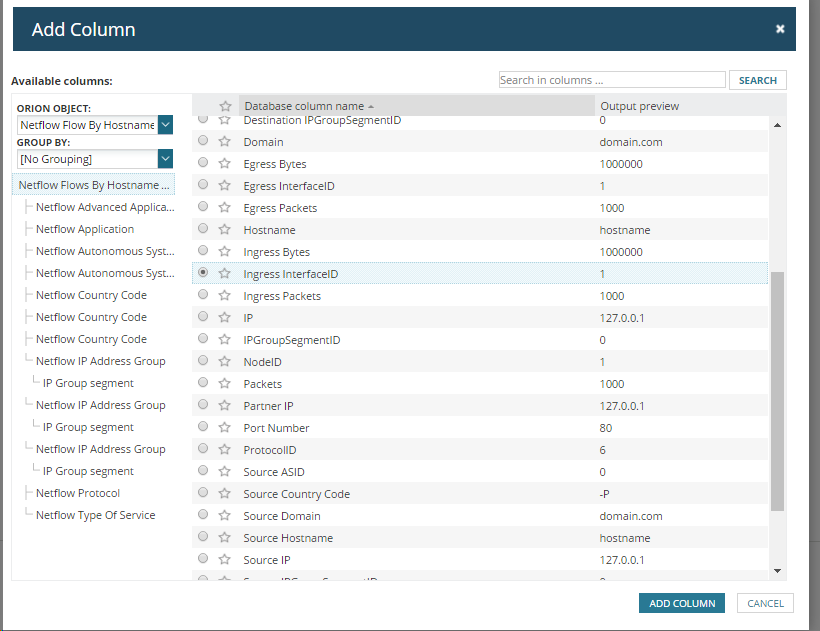

  5. Under Add Column, locate Ingress InterfaceID.
  6. Click Add to layout.

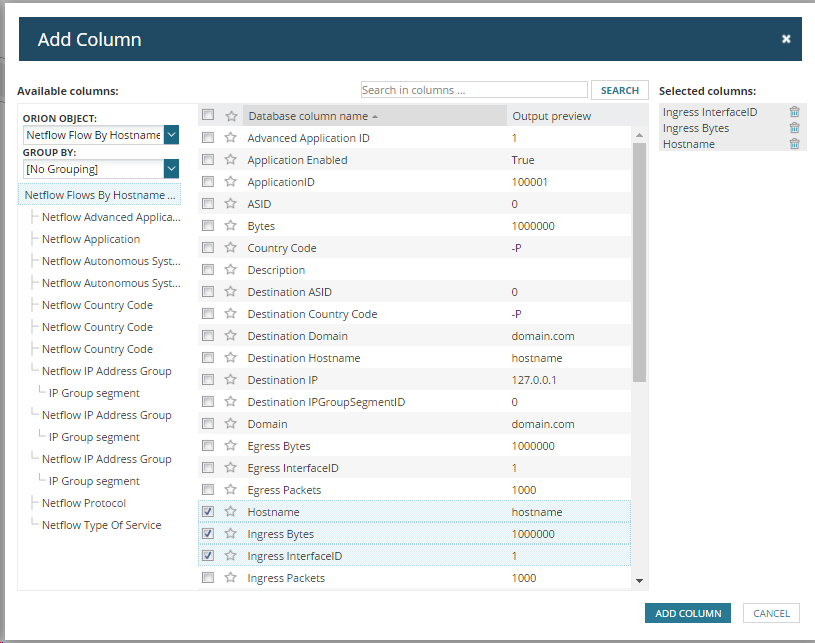

  7. Add the following columns:
    • Ingress InterfaceID
    • Ingress Bytes
    • Hostname
  8. Click Add Column.

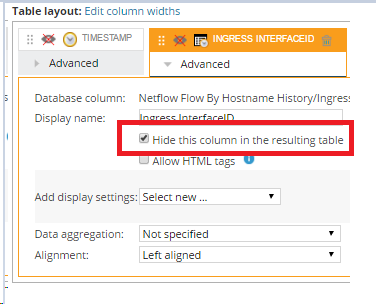

  9. Under the Ingress InterfaceID column Advanced options, select Hide this column in the resulting table.

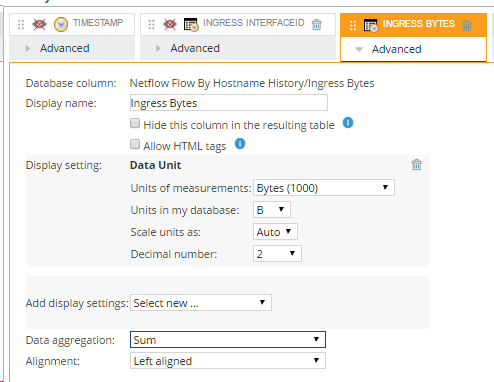

  10. Under the Ingress Bytes column Advanced options, set the appropriate values.

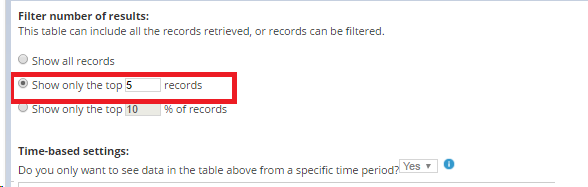

  11. Under Filter number of results, set the Show only the top field to 5 records.
  12. In the Sort results by field, select Ingress Bytes - Netflow Flow By Hostname History.
  13. Click Submit.

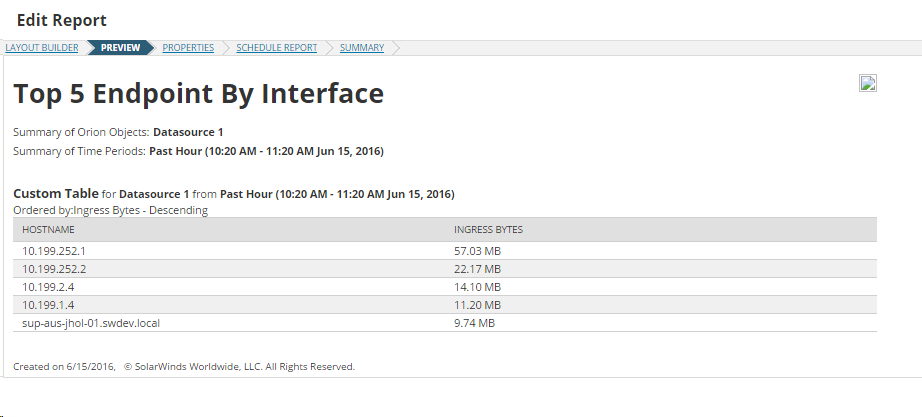

  14. After filling out all the details for your report, click Next. A report preview will be displayed.
  15. Click Next and add to favorites.
  16. Add a schedule if needed and then Click Next.
  17. Review and verify the summary and click Submit.
