Create a report for NetFlow Flow by Interface History in the Solarwinds Platform

How to create a report for NetFlow Flow by Interface History.

1. Log in to the SolarWinds Platform Web Console and navigate to Reports > All Reports > Manage Reports.
2. Create a new report.

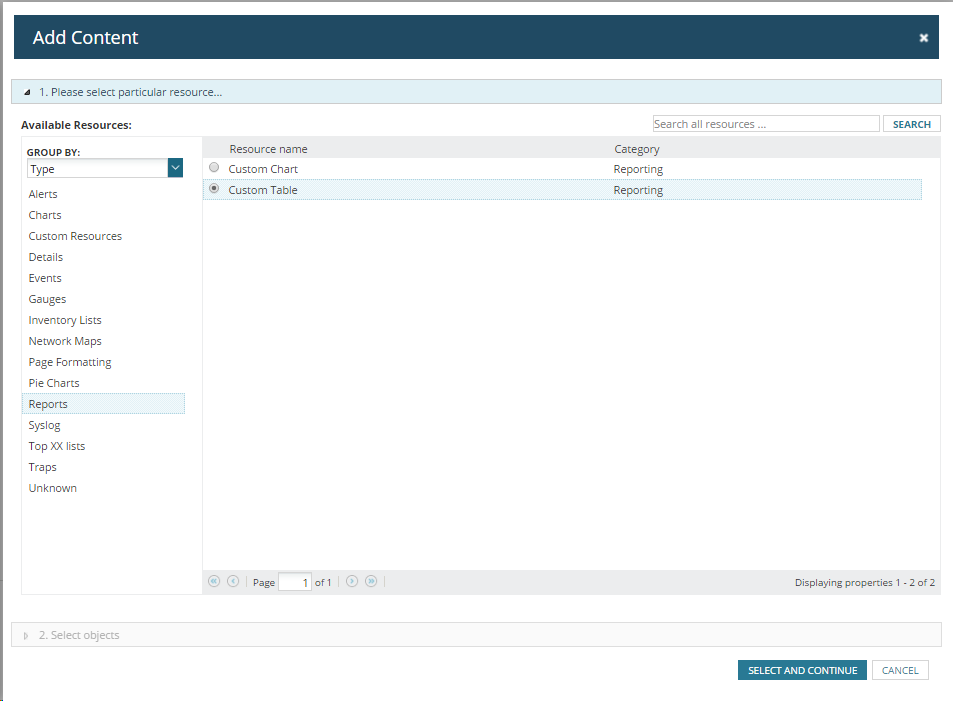

3. Select Custom Table.

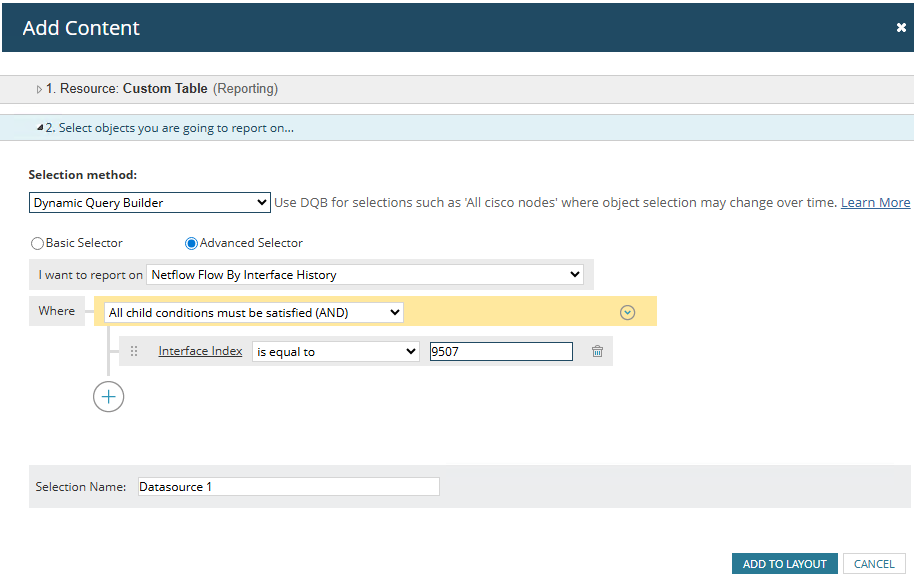

4. Set the following:
   1. Selection Method: Dynamic Query Builder
   2. Advanced Selector
   3. I want to report on: NetFlow Flow by Interface History
   4. Where: All child conditions must be satisfied (AND)
   5. Add Column Interface Index and is equal to the InterfaceIndex of the interface that needs to be added to the report and click

5. Click Add to layout.

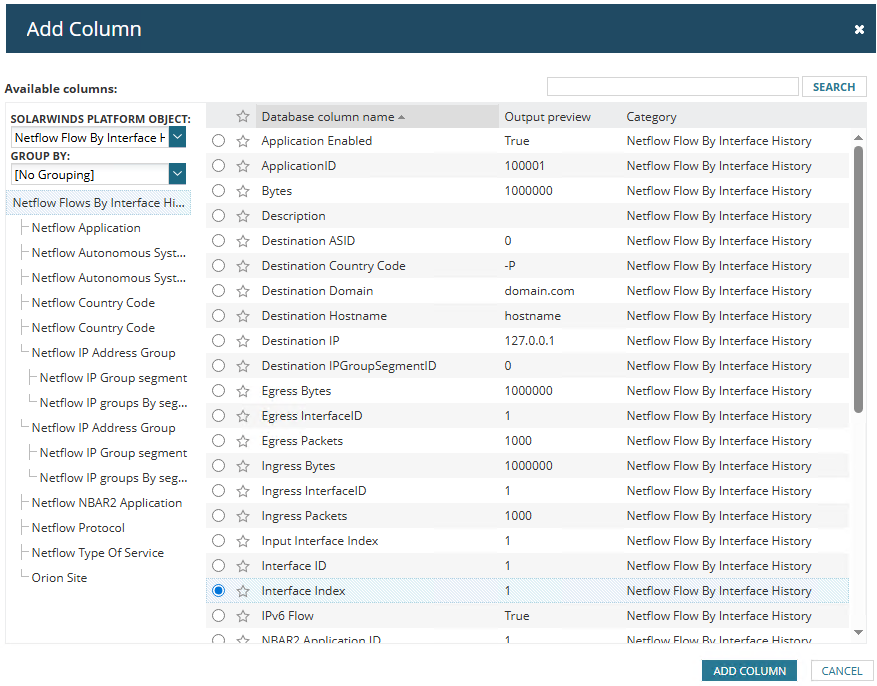

6. Add the following columns:

• • Interface Index
  • Interface Name - search this Interface Name and select the category Interface via Interface
  • Total Bytes (composed of Ingress and Egress bytes)
  • add other columns that is significant to the report

7. Click Submit.

8. After filling out all the details for your report, click Next. A report preview will be displayed.

9. Click Next and add to favorites.

10. Add a schedule if needed and then Click Next.

11. Review and verify the summary and click Submit.
