Create a Windows Service Monitor in SAM

With SolarWinds SAM, you can monitor Windows services and applications. To do so, create and assign a Windows Service Monitor. For details about to create and manage custom templates, see the SAM Custom Template Guide.

First published date

11/29/2018 10:28 PM

Last published date

12/21/2022 5:35 PM

Overview

This article describes how to create and assign a Windows Service Monitor component monitor for Windows services and applications. To learn about creating and managing custom templates, see the Managing SAM Templates.

Product section

Server Application Monitor

Resolution

TIP! Browse Trend Micro’s documentation to determine what services are used and warrant monitoring. You can then add them to your template as desired.

TIP! The Net Service Name is the name of the service you want to monitor. You can find the Service name on Windows systems by navigating to Start > Administrative Tools > Services and then locating the desired service. Right-click the service and select Properties from the context menu. The Service name is the value of the Service name field in the Properties dialog.

  1. In the Orion Web Console, navigate to Settings > SAM Settings > Create a New Template.
  2. Enter a name for the template then click Add Component Monitor and select Windows Service Monitor. When done, click Add.
  3. Select credentials or choose to Inherit Credentials from Node.
  4. Manually enter thresholds or check, Use thresholds calculated from baseline data.
  5. Enter the Fetching Method and Net Service Name. In this example, ntrtscan is a scanning service of TrendMicro antivirus:
  6. When done, click Submit.

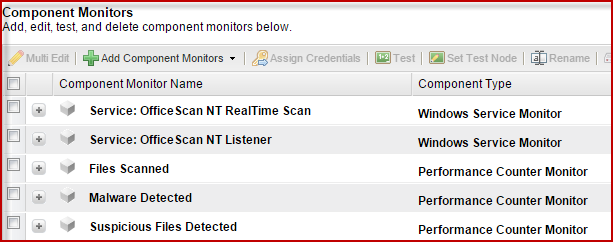

  7. You can optionally add additional monitors and then apply the template to a node for monitoring. For example, the following monitors were added to create the Trend Micro OfficeScan Template:
