Converting OpenSSH and PuTTY style keys

First published date

11/29/2018 10:40 PM

Last published date

11/29/2018 10:40 PM

Overview

With SSH Keys, Two common formats are available - OpenSSH and PuTTY style keys.

Programs that rely on PuTTY cannot use OpenSSH style keys, and vice versa.

Product section

Serv-U Managed File Transfer & Serv-U FTP Server

Resolution

Serv-U uses OpenSSH style keys only, and does not support PuTTY. It can be necessary to convert key formats in order to support specific clients.

Serv-U supports the Public Key Authentication method of user authentication, allowing users to authenticate with a key pair instead of a password. This eliminates the viability of dictionary attacks against user accounts, and also eases the process of automating transfer jobs with Linux/UNIX shell scripts.

While the data stored in Public/Private Key pairs is standardized, the storage format is not. Two common formats are available - OpenSSH and PuTTY style keys. Programs that rely on PuTTY cannot use OpenSSH style keys, and vice versa. Serv-U uses OpenSSH style keys only, and does not support PuTTY. It may therefore be necessary to convert key formats in order to support specifc clients. A procedure to do this isdescribed below:

OpenSSH to PuTTY Conversion

Converting OpenSSH style keys requires the PuTTYgen (© 2019 PuTTY, available at https://www.chiark.greenend.org.uk, obtained on January 22, 2019) application. Once this application is downloaded, start the program, then follow these steps:

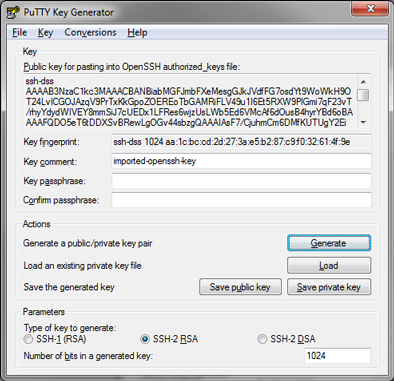

Click "Conversions" and then "Import"
Select your OpenSSH private key (e.g., "user17_sftpkey.key")
If there needs to be a passphrase to secure this key:
1. Enter the passphrase in the "Key passphrase" and "Confirm passphrase" fields.
2. Go to File, and click "Save private key" to save the key to disk in PuTTY format (as a .ppk file)

PuTTY to OpenSSH Conversion

Converting PuTTY style keys to OpenSSH also requires the PuTTYgen application. Once this application is downloaded, start the program, and follow these steps:

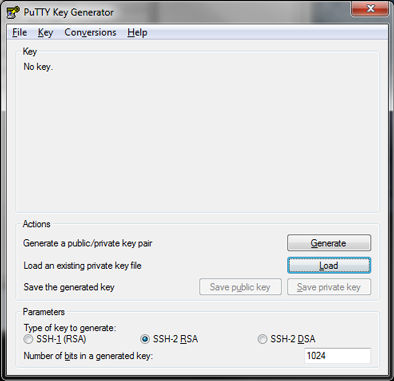

Click the "Load" button for "Load an existing private key file".

Click "Conversions", then "Export OpenSSH key"
Provide a name in the format mykeyname.key - the file name can be anything but it should end in .key.

Screenshots property of © 2018 PuTTY
