Configure and integrate JMX monitoring in SAM

This article provides steps for configuring and troubleshooting JMX monitoring in SAM. The JConsole can be used to test if SAM can load MBeans from the perspective of the Orion server.

First published date

10/16/2018 6:43 PM

Last published date

2/28/2022 1:36 AM

Overview

Before proceeding, please note that SAM 2020.2 includes the following JMX monitoring updates:

The Orion Platform now includes OpenJDK 14.0.
The JMX probe for Linux now supports OpenJDK 14.0.
The Oracle WebLogic (JMX) template was updated to support WebLogic 12.2.1.3.0.

For details, see Configure Java application servers and JVMs for SAM monitoring .

Product section

Server Application Monitor

Resolution

Configure the SAM Java application server for JMX.
Add the JMX component monitor.

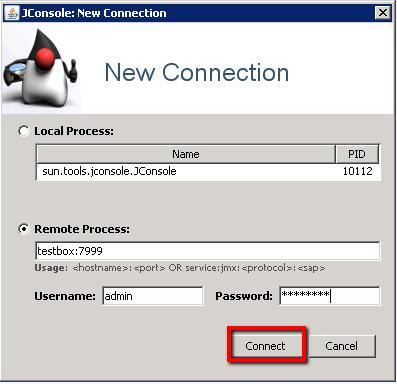

Launch the JConsole and test the connection C:\ Program Files\ Java\ jdk1.8.0\ bin\ jconsole.exe
Select Remote Process and enter the <IP:Port address>.
Click Connect.
If you receive the following message continue by clicking "Insecure connection"

Secure connection failed. Retry insecurely?
The connection to <IP:PORT address> could not be made using SSL.
Would you like to try without SSL? (Username and password will be sent in plain text.)

7. Once JMX is configured correctly, the Java Monitoring & Management Console will be displayed.

For more information about the initial setup and configuration of JMX, view the Understanding Java Remote JMX article in the THWACK community.
