Cisco Call Manager (CUCM) showing No Data Collected Yet

How to resolve an issue where the Cisco Call Manager (CUCM) is showing a No Data Collected Yet message.

First published date

10/19/2018 7:59 PM

Last published date

10/19/2018 7:59 PM

Overview

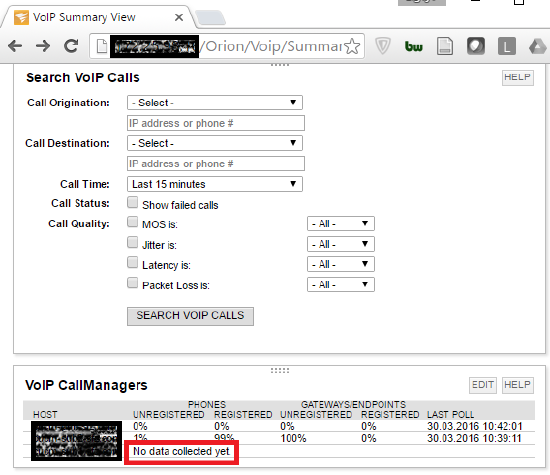

The Cisco Call Manager (CUCM) showing No Data Collected Yet.

Error in IpSlaM.Collector.Pollers.Jobs_*.log

ERROR:

ERROR SolarWinds.Orion.Pollers.Framework.PollerBase - CCM common data polling error:
SolarWinds.Orion.Pollers.Framework.SNMP.SnmpTableResponseException: Error 31040 - Error 31040 - Timeout

Product section

VoIP & Network Quality Manager

Cause

There is a known bug in Cisco firmware where it blocks consequent SNMP queries in case of more than 10 parallel SNMP queries (CISCO defect CSCtc85744).

Resolution

First, verify that SNMP, AXL & FTP credentials are correct. If so, run SNMP Walk of the device.

There are a couple things that you can try to resolve this issue:

Set a longer polling interval for polling the CUCM (default is 5 minutes). Set it to 2 hours or 6 hours.
Reset the CUCM to reset the SNMP agent to clear the issue.
Increase the SNMP Timeout (default 2500 ms). You can increase this to 10000 ms.

If these steps do not resolve the issue, open a TAC case with Cisco to investigate why the CUCM is not responding to SNMP requests.
